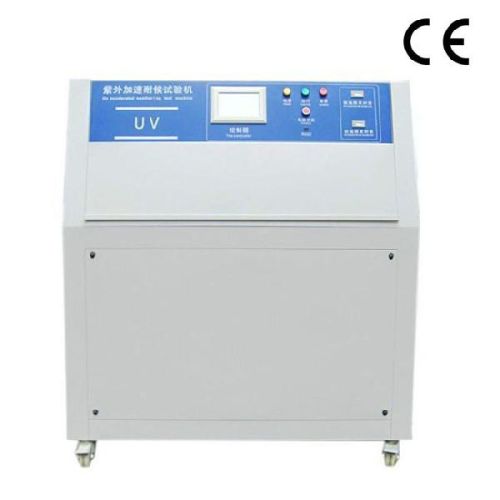

RT-308 QUV Accelerated Aging Testing Chamber

Technical parameter:
Model RT-308 QUV accelerated aging testing chamber
Bulb number UV Lamp 8，spare lamp :4
ATLAS,UVA340,UVB313,UVC351)
Recorder Option
Radiometer Option
UV temperature From 50 ℃ to 75 ℃
Testing capacity 48 piece(75 x 150m m ）
50 piece（ 75 x 150m m ）
Water and consumption distilled water, 8 liters day
Volume
(W x D x H) 137 x 53 x 136cm
Weight 136kg
Power 1 ψ ， 120V60Hz,16A or 230V50Hz, 9A,1800W(max)
Main feature:
1, simulated sunlight
The damage of material durability is mainly caused by the sun's ultraviolet ray. We use UV lamps to simulate sunlight in the ultraviolet part of the short-wave, it produces very little visible or infrared spectral energy. We can choose according to different testing requirements of different wavelengths of UV ultraviolet light, because each lamp in the total energy and wavelength of UV radiation are not the same. Usually, UV lamp can be divided into two kinds of UVA and UVB.
2, UV lamp type
UVA-340 lamp: UVA-340 lamps can simulate short-wave UV light in the sunlight excellently, ie sunlight from 365nm to 295nm cutoff wavelength.
UVB-313 lamps: UVB-313 lamps are usually issued by short-wave UV radiation than the Earth's surface in the strong solar ultraviolet radiation, which can speed up the greatest degree of material aging.However, the lamp may have caused some of the material does not meet the actual damage.UVB-313 lamp is mainly used for quality control and research and development, or on the weatherability of materials strong run the test.
UVA-351 lamp: Simulation of UV sunlight through windows, it is the aging of indoor materials for testing the most effective.
