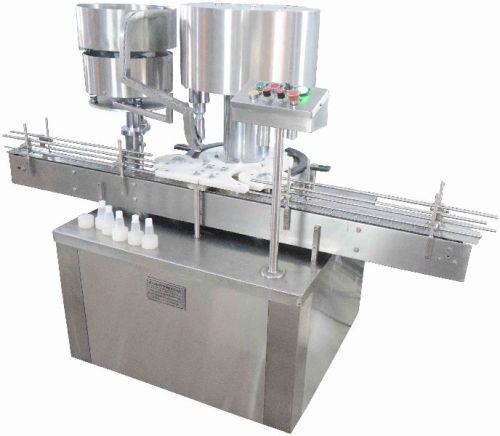

Screw Capping Machine

Screw Capping Machine

Listing ID #3671334

Get Latest Price
  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world

in case you want to save footprint by making a monoblock machine of "screw capping machine" and "dose measure fixing machine". Please refer to the links for more information, feel free to write us in....
View More Details
Send Enquiry

Company Information

J.P. Technologies
Bodakdev, Ahmedabad, Gujarat
View Number
  • Member Since 6 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

in case you want to save footprint by making a monoblock machine of "screw capping machine" and "dose measure fixing machine". Please refer to the links for more information, feel free to write us in case of any queries.



the output depends on bottle and cap geometry.

* specification subject to change without prior notice.

application : to apply screw measure cap on plastic/glass capped bottles.



application

  • to apply screw measure cap on plastic/glass capped bottles
  • cap diameter:- 20 mm to 50mm
  • cap height :- 12 mm to 30mm
  • bottle diameter:- 30mm to 80mm
  • bottle height:- 50mm to 150mm

competencies :

  • total cgmp model
  • frame made from ss-structure.
  • sleek sturdy and compact design
  • all control from panel itself.
  • left to right and right to left options available
  • plc hmi-touch screen

features :

  • very fast changeover of the changeparts.
  • pick and place mechanism
  • magnetic adjustable torque clutch in the capping head ensures no wear and long life.
  • special chucks to reduce damage/marks on caps
  • very high accuracy for screwcap placing
  • planet gear mechanism for torque application
  • no bottle no cap
  • completely fail safe design

optional features
  • orienter/ vibrator for cap conveying
  • online inspection of caps is possible
  • cap cleaning online

accessories

  • cap loader
  • pre/post inspection device
  • tagger detection mechanism
  • cap rejection device
  • bottle rejection device

utilities

  • 415v, 3-phase, 50hz electric supply
  • electric load:- 3 hp
  • air:- 2 cfm @ 4 to 6 kg/cm2


Model no JPCMSC-3 JPCMSC-6 JPCMSC-9 JPCMSC-12
Production per hour 3600 9000 14000 18000
No of capping heads 3 6 9 12

Company Details close-icon

JP group is established Three decades ago. Since inception, Manufacturing accurate and efficient machines is the main motto motto and Packaging machine is J.P. Machine tools’ passion.
We are Leading Manufacturers, Exporters and Suppliers of Filling Machine, Edible Oil Filling Machine, Pesticides Filling Machine, Liquid Filling Machine, Ointment Filling Machine, Wine Filling Machine, Shampoo Filling Machine, Juice Filling Machine, Powder Filling Machine, Dry powder Filling Machine, Spices Filling Machine, Injectable Powder Filling Machine, Washing Machine, Bottle Washing Machine, Sticker Labelling Machine, Self Adhesive Sticker Labeling Machine, Monoblock Machine, Screw Capping Machine, Bottle Capping Machine, Rotary Capping machine.... Many More
