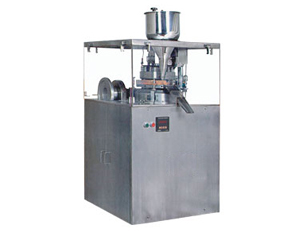

Single Sided Rotary Tableting Machine

Get Latest Price

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

GMP Equipments Pvt. Limited

Prahlad Nagar, Ahmedabad, Gujarat

View Number

Member Since 18 Years
Nature of Business Retailer
Year of Establishment 2004

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Description:
It is a square GMP model/single sided Rotary Tablet Press/ promising unmatched quality for small batch Production. Safety/enhanced performance/clean ability and ease of operation is its most significant features. The suitable model can be selected based on the tooling and output requirement from the 16, 20 & 12 station with “D”, “D” & “SPECIAL” tooling respectively. The 12 station model is available with “SPECIAL” tooling and tunnel type cam track having maximum tablet diameter of 40mm & maximum depth of fill of 30mm.

SALIENT FEATURES : cGMP

  • In compliance with cGMP guidelines
  • Turret of SG IRON 500/7 Graded Casting
  • Robust with high quality Engineering
  • Small batch production
  • Safe/ Simple to operate and easy to maintain
  • Higher Turret RPM upto 42
  • Main Moter AC Variable Frequency Drive (optional)
  • Force Feeder (optional)
  • Aluminum covers for Turret teeth

Model	16 Station	20 Station	12 Station
Tooling	D	D	SPECIAL
No. of Station	16	20	12
Maximum Operating Pressure	10 Tons	10 Tons	12 Tons
Maximum Tablet Diameter	23 mm (25 mm on Demand)	23 mm (25 mm on Demand)	40 mm
Maximum Depth of ï¬�ll	20 mm	20 mm	30 mm
Output Tablets /Hour *	14400 to 40320	18000 to 50400	10800 & 15840
Electric Motor	2 Hp / 960 RPM	2 Hp / 960 RPM	5 Hp / 1440 RPM
