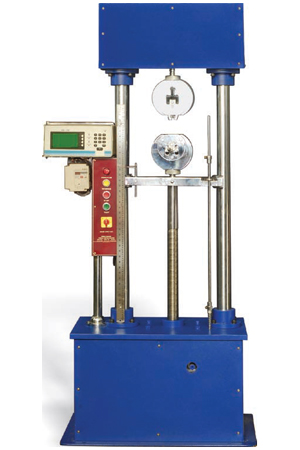

Contact SupplierFloor mounted, vertical type, two column construction specially manufactured for various applications.
TENSILE TESTING MACHINES are designed for determining the Tensile Strength and Elongation of a host of materials like ferrous and non ferrous materials, cables & conductors, Plastic, PVC, Rubber specimens, paper, plywood etc. Our TENSILE TESTING MACHINES are also capable for conducting compression, Cross breaking and Shear tests thus making them more versatile with a few additional attachments. TENSILE TESTING MACHINES are available in various capacities depending upon the requirements right from 5 kgf to 10 Tonnes ensuring ± 1% accuracy in test results. We assure high accuracy, sensitivity, reliability, consistency, repeatability and excellent workmanship. TESTING MACHINES are backed up by prompt and effective after service by a team of factory trained technicians. Our machines are available in KGF/ kN/N as per your specific requirements.
TENSILE TESTING MACHINES are also available with State of Art Electronic Microprocessor based Digital Indicator systems with PC and Printer.
Â
MODEL | EKE 8010-1 | EKE 8010-2 | EKE 8010-3 | EKE 8010-4 |
CAPACITIES (Kgf) | 250 | 500 | 1000 | 2500 |
LEAST COUNT | 0.1 gms. | 0.1 gms. | 0.1 kgf. | 0.1 kgf. |
TRAVERSE SPEED (mm/ min) | 500 and 100 | 100 | 100 | 100 |
GRIP SEPARATION Minimum Maximum |
25 mm 1000 mm |
25 mm 1000 mm |
25 mm 750 mm |
25 mm 750 mm |
POWER REQUIREMENT | 3ph440V 50 c/s AC |
3ph440V 50 c/s AC |
3ph440V 50 c/s AC |
3ph440V 50 c/s AC |
OVER-TRAVEL SAFETY SWITCHES | Incor- porated | Incor- porated | Incor- porated | Incor- porated |
LOAD ELONGATION RECORDER |
Optional of extra cost |
Optional of extra cost |
Optional of extra cost |
Optional of extra cost |
