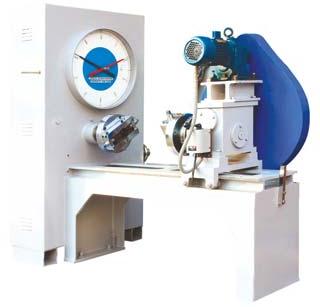

Torsion Testing Machine

Torsion Testing Machine is a simple and accurate way for conducting torsion and twist tests on various materials. Clients from all over the world prefer our machine for its excellent testing methods and various customized functions. We stand as a distinguished Manufacturer, Supplier and Exporter of Torsion Testing Machine from Delhi, India.
Features :

• Unique "Talon -Claw" Grips for Round and flat specimens (optional at extra cost)
• Torsional Speed of 0.1/0.2 RPM (optional at extra cost)
• Torque Compensated Motors Maintenance Free gear Box Auto Range selection with Range selector wheel (optional at extra cost)
• 3 or 4 Torque Ranges for higher Accuracy (optional at extra cost)

Highlights :

• Designed for conducting torsion and twist tests on various materials
• Torque measurement is by an electronic torque transducer for direct display of torque
• Torque is applied to specimen by geared motor through gear box
• The accuracy of the torque indication is ±1% of the true torque
• The complete system is hydraulically damped for vibration free loading.
• Able to retrieve or print testing results after the test
• Mainly suitable for materials labs of scientific research, department, Colleges or universities and industrial enterprises to test the mechanical properties under torsion condition

Main applications :

• Testing machine is used for the torsion test for all kinds of materials, by imposing a torque.

• There are two testing methods:

  • Automatic Testing : Turn the hand wheel until the test rod breaks. The testing machine will automatically test the yield M1 and the maximum torque M2.
  • Manual testing : Choose the test angles and tropes of any 9 points during the testing period and records them.

Main Technical Specification :

• Max. test torque : (N.m) 200
• Min. reading of torque : (n.m) 0.02
• Torque measurement angle : (N.m) 20-200
• Max. reading of torsion angle : 9999.95
• Min. reading of torsion angle : (o) 0.5
• Relative error of torque indications
