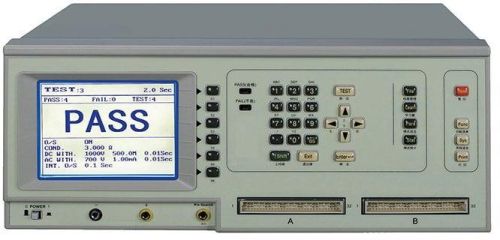

USB Cable Testing Machine, Packaging Type : Wooden Box

₹ 1.25 Lakh / Piece

FinishingTesting
Packaging TypeWooden Box
ConditionNew
Power SourceElectric
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Sector 63, Noida, Uttar Pradesh

4.0/5

Member Since 7 Years
Nature of Business Supplier
GST No. 09AVMPA7464P1ZT

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

FinishingTesting
ConditionNew
Power SourceElectric
Automation GradeSemi-Automatic
ApplicationTesting Wire Harness/Cables,Cable Tester
FeatureFine Finished, Good Quality, Good Strength
Country of Origin240 V
Packaging TypeWooden Box
Number Of FlowerWire Testing Machine,Harness testing,Harness testing
Load Weight500g.
Warranty1 year
Weight15 Kg
Test Pin128 Pin
Warranty1 year
Test ModeAuto, Manual
Max Test VoltageAC1000/DC1500V
Materialsteelness steel
BrandIndoe enterprises
Size425 x 190 x 350mm
BrandIndoe enterprises
Machine NameWire Harness Tester
Size425 x 190 x 350mm
PowerElectronic
Materialsteelness steel
Size425 x 190 x 350mm
Model NumberIE-UB

Product Description

Description of harness testing series Electrical harness tester:

The harness testing series Electrical harness tester is used for test and measure wire cable harness,wire harness, like as : auto
cable,audio cable, power cable, network cable, telephone cable, USD cable, HDMI cable,video cable, etc. .
Feature of IE- series Electrical harness tester:

1. Up to 700Vdc/500Vac Test Voltage
2. 512 Max. Test Points
3. Auto Scan and Auto Pin Search
4. Intermittent Conductance Test
5. Intermittent Open/Short Test
6. Providing Single-End Testing
8. Large 320×240 LCD Display
9. Full Programming Sequence Test
10. Versatile I/O Ports for application
11. Statistics and Print Function
Test function IE- Harness testing series Electrical harness tester:

Item	Symbol	Test range
Conductance	COND	0.1Ω~50Ω
Resistance	R	0.1Ω~1.0MΩ
Insulation	IR	1MΩ~500MΩ
Open/ Short	O/S	2KΩ~50KΩ
Intermittent O/S Test
Intermittent Cond.		0.1Ω~50Ω
Single-End Test
Open / Short terminal Judgment

Specification of IE-Harness testing series Electrical harness tester: :

Advanced Functions	Programmable Sequential Test
	Auto Pin Search
	Self Diagnostic
	Self Calibration
Basic Accuracy	±5%
Scanning Mode	Auto/Short Switchable
Meas. speed	0.1 Sec Basic
Test Signal Information	200~700Vdc / 500Vac
DC Insulation /Hi-pot	±5% Accuracy
Display and Sound	320×240 Graphic LCD Display
	6 Digits Numeral Formatting
	Pass/Fail LED Indicator/LCD Display
	Internal Speaker
Connections	128 Test Points
	256/512 Points Optional
	Hi-pot Calibration +/- Output
	Auto Pin-Search Jack
Front Panel Buttons	Sys Key/Fast Key/Edit Key/Soft Key
I/O Interface	Printer Port
	Remote ControlPort (Optional)
	IE-232 Port (Optional)
	IE-485 Port (Optional)
Memory	Built-in 512KB SRAM
Memory	Battery Backup
Power Supply	Switching 115/230 Vac±10%
Power Supply	50/60Hz
Accessory	Auto Pin-Search Probe
	2-in-1 64Pin DIN-to-Horn Converter
	Remote Control Cable (Optional)
	IE-232 Cable (Optional)
	GPIB Cable (Optional)
	Power Cord
	3→2 Power Line Adapter
	User's Guide
Temperature & Humidity	15°C~35°C

Additional Information

Port of Dispatchtransport, supliear
Packaging DetailsSoft foam and Wooden box packing Packaging Details carton, packing size 425*190*350mm, packing weight: 15KG for Electrical harness tester
Delivery Time1-5 days
