Flow Controllers

Our product range contains a wide range of Combi 5000 PH Flow Controller

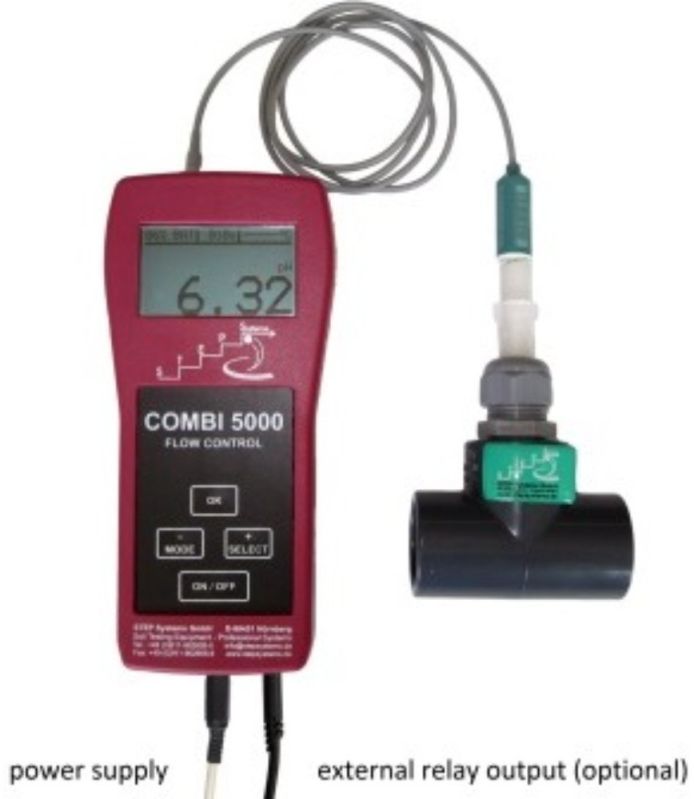

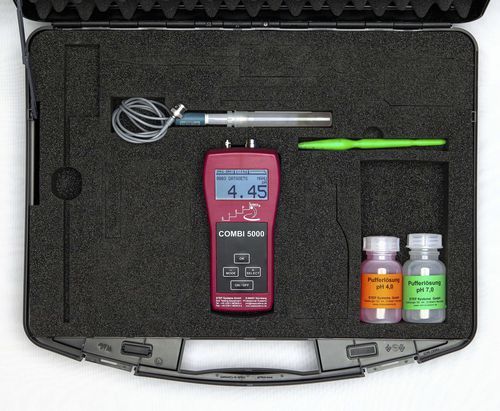

Combi 5000 PH Flow Controller

  • Material Plastic
  • Packaging Type Maroon
  • Condition New
  • Current 10 A
  • Pole Type Single Pole
  • Throw Type Single Throw
  • Port Size 2 Inch

Continuous monitoring of pH

The pH Flow Control 5000 is a solid flow meter for continuous pH measurement in pipeworks.

Based on the latest microprocessor technology, the instrument has completely been developed and manufactured bySTEPSystems in Germany.

The automatic sensor and buffer recognition makes operating errors and misstatements almost impossible safety of correct application has been perfected.

Inverse indication of measured values when exceeding or dropping below the individually set limits ensures timely intervention in case of failures. The risk of over-fertilization or under-supply of plants by incorrectly adjusted fertilizer mixing systems is minimized.

      By exceeding or dropping below the freely adjustable limits:
      • Version without relay output: inverse graphic indication
      • Version with relay output: inverse graphic indication and possibility of alert system and/or control function for dosage pumps.

The tube-fitting kit enables easy and fast installation and de-installation of the probes (e.g. in case calibration or replacement).

Menu languages: German, English, Russian (optional).

Technical data:

    • Measuring range: 0 14
    • Resolution: 0.01
    • Accuracy: 0.02
    • Calibration: automatic, at 4, pH 7 or pH 10
    • Elektrode: gel-lled pH electrode, BNCplug, 110 cm cable
    • Max. pressure: 5 bar
    • Alarm: visual inverse graphic indication. Version with relay output: visual and 2 x relay output, 3.5 mm, max. 50 Vac / 1
    • Alarm delay: 0-255 s after exceeding or dropping below the limits
    • Conversion factor EC-TDS: automatic
    • Power: 9 V with external power supply (continuous operation) or 9 V with block battery > 3, 000 measurements (short time operation)
    • Dimensions: 83 180 55 mm
    • Weight: 300 g (basic unit)
    • Data logger function (optional): memory: ca. 2, 620 measuring values / measuring rate: 1 min 24 h
