GST : 05DKGPG5845E1ZAOur Products
Our offered Product range includes Conductivity TLC Water Level Meter, Dipper Tag Water Level Meter, Automatic Water Level Recorder, Dipper T2 Water Level Meter and Economical Water Level Meter.
The dipper-Tag Multipurpose Tag Line is designed for hydrogeologists who require a tape to attach a bailer to, in order to do water quality sampling. It can also be used by well drillers when performing well installation or well maintenance.
The economical dipper-Tag is a multi-purpose unit designed for use when installing or monitoring wells. The 316 grade s/s weighted and removable plopper that comes with the dipper-Tag can be used for measuring to the bottom of a well, or the depth to the top of a bentonite layer or backfill sand. The plopper can also be used to measure to the top of the water level acoustically (no visual or audible sensor). The dipper-Tag also comes complete with (3x) 1.5″ x 12″ biodegradable bailers.
Included:
• Polyethylene Tape
• 3/4″ Stainless Steel (Grade 316) weight with removable Plopper
• Stainless Steel Spring Clip –to attach included weight / plopper or other attachments (Bailers/Data Loggers/dipper-See H2GO/etc.)
• Vinyl ergonomic handle
• (3x) 1.5″ x 12″ biodegradable bailers
• Backpack Carrying Case w/ adjustable straps, laptop & notepad pouches
The dipper-T2 water level meter is designed for well drillers, consultants, and hydrogeologists all across the globe.
The dipper-T2 is a rugged and dependable PFAS FREE water level meter made from high quality materials, easy to use for a wide variety of applications. The dipper-T2 is capable of measuring both static and falling head levels. Static mode is used for measuring the depth of water in wells, boreholes and standpipes. DrawDown mode is used for measuring falling water levels during purging, well development and for low flow sampling; helping to protect your pump from damage caused by dry running.
The Heron dipper-T2 is renowned for its premium, polyethylene coated yellow steel tape accuracy in measuring depth to water. Available in your choice of either metric or engineering scale.
Certified intrinsically safe to ATEx, IECEx, CSA, and UL standards
Included:
• Premium Stainless Steel Polyethylene Coated Tape
• Removeable 5/8” (15.9mm) Water Level Probe (IP68) w/ holder
• Electronic Panel with audio / visual signals and volume control dial (Fully Encapsulated to IP65)
• Sensitivity dial to tune out cascading water
• Vinyl, ergonomic holding grip
• 9V Battery
• FREE Backpack Carrying Case w/ adjustable straps, laptop & notepad pouches
2 Year Warranty
The water tape water level meter is made for drillers, consultants and hydrogeologists that are looking for an economic water level meter that does not lack in quality. The water tape provides accurate water measurements without going over budget.
The Heron water tape, an economical water level meter, can be used for measuring both static and drawDown levels in open bodies of water, wells, boreholes and standpipes. This low cost unit with DUAL FUNCTION capability is ideal for every project and budget.
Included:
• Polyethylene Tape w/ Heat Stamped Markings
• 5/8” (16mm) Water Level Probe (IP68) w/ holder
• Electronic Panel with audio and visual signals (Fully Encapsulated to IP65)
• Sensitivity dial to tune out cascading water
• Vinyl, ergonomic holding grip
• 9V Battery
Feature
Description
The H.OIL Oil/Water Interface meter is used to measure the interface level between two liquids in the same tank, vessel, well or aquifer. The dissimilar density of two liquids means the lower density, non-conductive product (LNAPL) will float on top of the higher density, conductive liquid (water). Denser products will tend to sink (DNAPL), creating a layer under the water. The premium padded carry case comes included to protect your precision instrument from the elements.
The hydrocarbon resistant Kynar™ jacketed, high tensile steel core tape is able to withstand hydrocarbons, solvents and other harsh contaminants. The intrinsically safe certification (ATEx, IECEx, CSA, UL Standards) makes the H.OIL ideal for use in hazardous environments by Oil & Gas, Chemical and Petrochemical Industries.
Features:
The PFAS FREE SKINNY DIPPER narrow diameter water level meter has the thinnest tape and probe in our whole product family. The SKINNY DIPPER is a premium water level meter designed for hydrogeologists and well drillers to measure water down narrow openings of wells and piezometers.
The SKINNY DIPPER water level meter is ideal for measuring static water levels in narrow wells, boreholes, tubes and piezometers. The slim line tape and ¼” probe enable users to take readings while the pump is still in the well, whereas wider tapes may get tangled. The premium padded carry case comes included to protect your precision instrument from the elements.
Included:
• 1/4” (6.4mm) Polyethylene Tape
• 1/4” (6.4mm) Water Level Probe w/holder
• Electronic Panel with audio / visual signals and adjustable volume dial (Fully Encapsulated to IP65) with Drawdown
• Sensitivity dial to tune out cascading water
• Vinyl ergonomic handle
• 9V Battery
• FREE Backpack Carrying Case w/ adjustable straps, laptop & notepad pouches
2 Year
(Series #1800) – Temperature & Water Level Meter
Description
The dipper-Temp Temperature Meter is ideal for profiling temperature and static water levels in wells, boreholes, standpipes, lakes and rivers. Temperature can alter the physical and chemical properties of water and should be accounted for when determining an increased level in biological activity and water chemistry. Groundwater temperature surveys have also taken on a new significance as geothermal energy becomes more important for domestic heating and cooling. The premium padded carry case comes included to protect your precision instrument from the elements.
The heat resistant coated measuring tape on the dipper-Temp allows for temperature profiling up to 135C.
Features:
– Narrow 16mm (5/8”) diameter probe
– Temperature accuracy of +/-0.05°C
– Temperature resolution of 0.01°C
– Wide temperature range of -45°C to +135°C (-50°F to +275°F)
– Support for changing units to Celsius, Fahrenheit, Kelvin, and Rankine.
– Fully sealed and removable water-proof electronic panel.
– Triple sealed and removable electronic probe.
– Automatic sensitivity adjustment to filter out cascading water.
– Integrated self diagnostics and modular design to help troubleshoot in the field.
– Volume adjustment to protect your hearing.
– Best in class battery life.
– Battery life indication on startup.
– Lengths up to 5, 000ft (1.5km) available on request.
– PFAS Free wetted materials.
– Stainless bearings for smooth winding.
– Built in well hanger and roller to protect your tape.
Water Level Sounder is a reliable instrument for measuring the water level and total depth in boreholes, wells, reservoirs etc. For the measurement the bob is lowered to thewater level. When touchingthe level, a sensor effects the illumination of a signal lamp& an additional acoustic signal will be released by a buzzer.When the probe is touching the water-level there is a conductive connection between the tip of the probeand thesensor-body. Thereby a circuit of the lamp and the buzzer will be closed.Response is seen on LED plus an audible tone is heard. Features include: Standard cable lengths: 100m, also available in 150, 200, 250, 300meters, with marking on every Millimeter/ Centimeter/Meter. Reel-type spool for lowering cable and electrode assembly. Reel is mounted on a stand. Self-contained 9V (6F22)type battery power supply –no danger of shock from an outside power supply. Standard brass electrode. Reel handles are shaped to fityour hands. Accurate of reading. Each Water Level Indicator is supplied with a battery

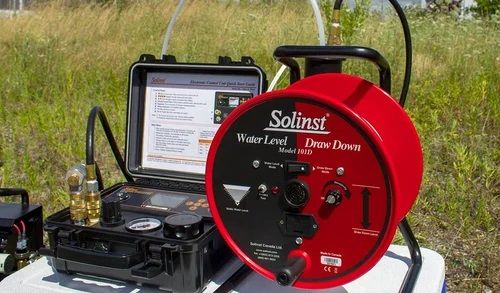

DescriptionFor measuring the depth to water in wells, boreholes, standpipes, and tanks, Model101 Water Level Meters are the industry standard for portable hand operated meters.They are sturdy, easy to use and read accurately to 1/100 ft. or each millimeter.There are two versions to choose from. The Model 101 P7 Water Level Meterfeatures a pressure-proof probe and laser marked PVDF tape. The Model 101 P2Water Level Meter features an easy-to-repair probe and heat embossed polyethylenetape.
Features
- Markings each 1/100 ft. or millimeter
- Traceable to national standards
- Sensitivity adjustable to conductivity
- Probes avoid false readings in cascading water
Reliable
- Permanent laser markings
- Non-stretch PVDF tape with stainless steel conductors Long Life
- Rugged, corrosion proof components
- Strong, flexible tapes
- Easy to splice and repair
Flexible
- PVDF replacement tapes are interchangeable with other meters
This is our most economical deployment for an absolute data logger. Install the logger using a suspension cord and simply pull the logger up, connect to a laptop or tablet with a P.C. Communication Cable and retrieve your data.
dipperLog 128+
dipperLog TOUGH+
