Our Products
Our Complete range of products are Interface Meter Model 122, Water Level Pressure Sensor, Tlc Lux Meter Model 107, Model 301 Water Level Temperature Sensor and 101D Water Level Drawdown Meter.
Description
Solinst Oil/Water Interface Meters give clear and accurate measurements of productlevel and thickness in wells and tanks. Determination of both light (floating) non-aqueous phase liquids (LNAPL) and dense(sinking) non-aqueous phase liquids (DNAPL) is quick and easy. The factory-sealedprobe is pressure proof the full length of the submerged tape. The tapes are availablein a range of lengths from 30 – 300 m (100 – 1000 ft).
High Quality Design

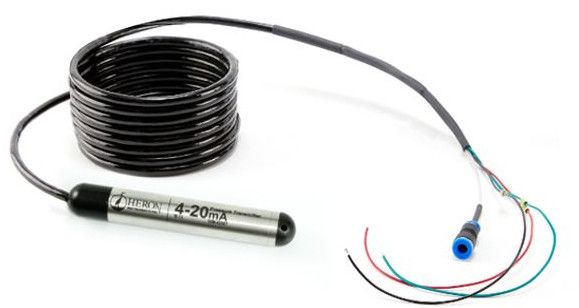

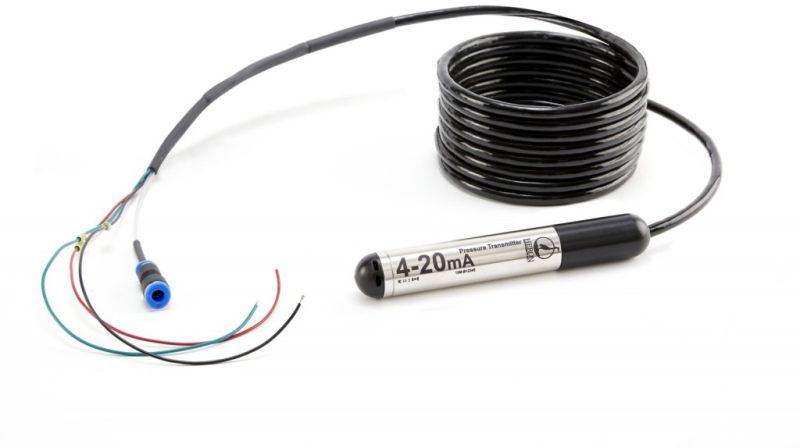

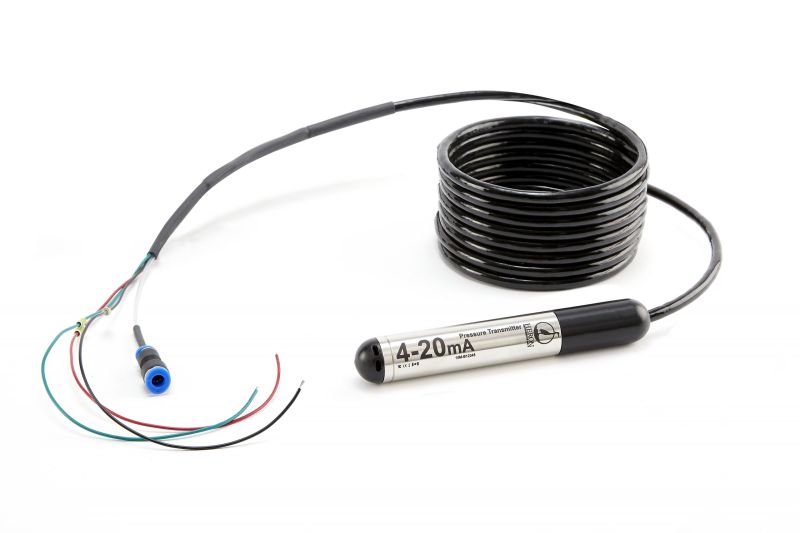

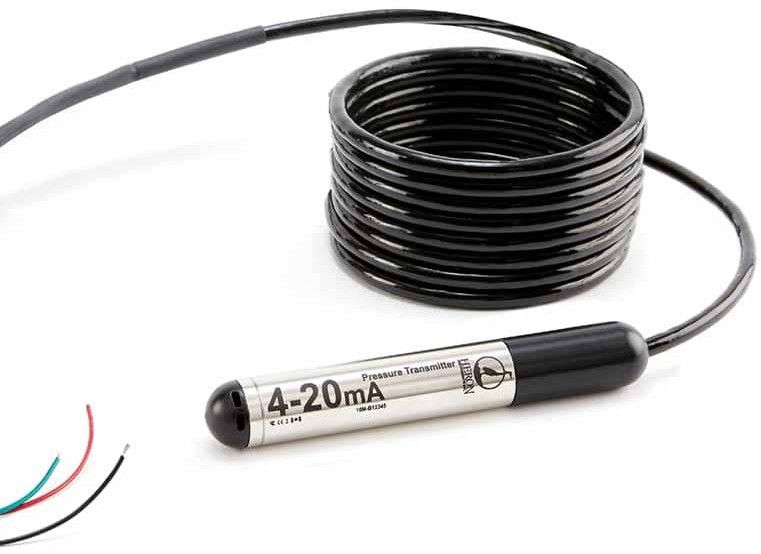

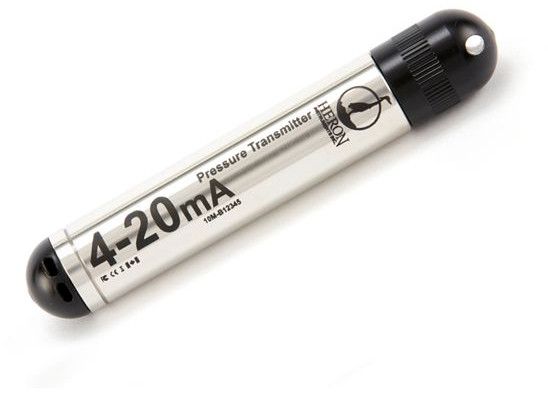

The 4-20mA Pressure Transmitter is easily integrated into an existing SCADA system, digital display or 3rd party data logger. It will provide a continuous, accurate water level reading for a wide variety of applications.A two-wired 4-20mA Pressure Transmitter current configuration is used with our pressure transmitter which is the most widely used signal transmission for transducers in industrial environments.Pump activation for low water level, high water level in tanks, wells, rivers and chambers. Low water and high water level shut off.
Description
The TLC Meter is ideal for profiling conductivity and temperature in wells and openwater. It displays accurate measurements of conductivity and temperature on aconvenient LCD display.
Conductivity measurements are read from 0 to 80, 000 S/cm with readings givingaccuracy of 5% of reading or 100 S (which ever is greater).
Water level and probe depth measurements are read off the Solinst durable flat tape, which is accurately laser marked each millimeter or every 1/100 ft. Tape lengths areavailable up to 300 m (1000 ft).
Description

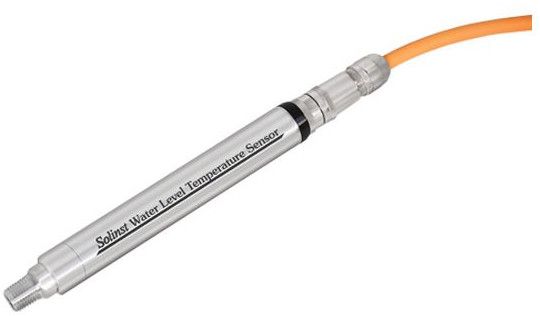

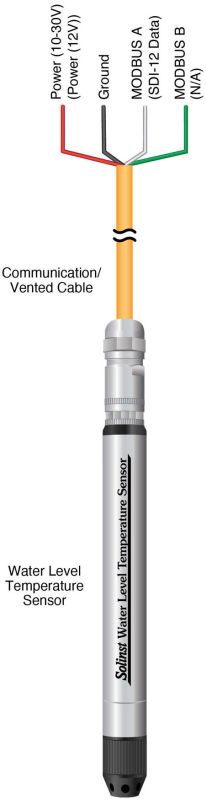

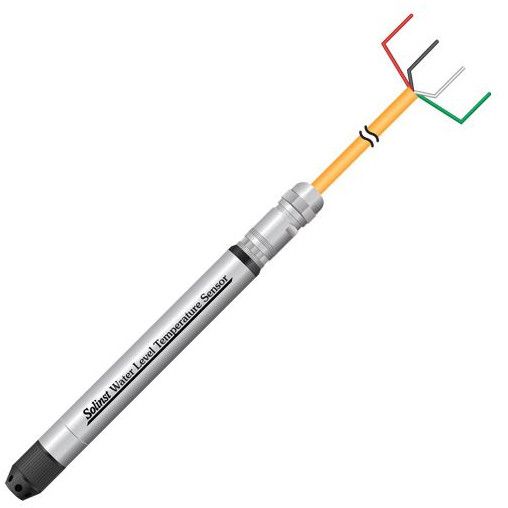

The Solinst Water Level Temperature Sensor is a compact, all-in-one submersiblehydrostatic level transmitter that provides continuous, stable and accurate waterlevel and temperature readings for a wide variety of applicationsThe water level pressure sensor and temperature sensor are enclosed in a slim, robust 22 mm x 192 mm (7/8\" x 7.55\") 316L stainless steel housing. Double o-ringseals prevent leaks and a Faraday cage design protects against power surges andlightning. Each probe features a removable nose cone for optional use of the 1/4\"NPTM threaded connection.The water level pressure sensor and temperature sensor are enclosed in a slim, robust 22 mm x 192 mm (7/8\" x 7.55\") 316L stainless steel housing. Double o-ringseals prevent leaks and a Faraday cage design protects against power surges andlightning. Each probe features a removable nose cone for optional use of the 1/4\"NPTM threaded connection.The Water Level Temperature Sensor works with digital and analog protocols –MODBUS, SDI-12, and 4-20mA (add-on Current Loop Adaptor). They are easy tointegrate into your existing SCADA or PLC systemsCommunication cable assemblies are available in lengths up to 300 metres. Thecables are easily and securely attached to the sensor using a threaded connection.Simple PC software utilities are used to set up the sensor for the different protocols, perform simple diagnostics, and update sensor firmware if required. A USB-Aprogramming cable is provided for connection to the PC.
Description
The 101D Water Level DrawDown Meter has all of the same qualities as our well-known 101 P7 Water Level Meter, with the added feature of a drawdown mode. Onesimple toggle switches between static water level and drawdown measurements.
Water level mode allows accurate depth to water measurements in wells, boreholes, standpipes and tanks. The drawdown function is used to monitor falling hydraulichead during low flow sampling, pumping and other aquifer/well tests. It also ensuresa pump’s intake remains submerged during purging or well development.
