Communications Transmitters

Our offered Product range includes PH3630 Digital PH Transmitter, CL3630 Digital Chlorine Transmitter, Digital Two Wire Transmitter and mV3630 Digital Orp Transmitter.

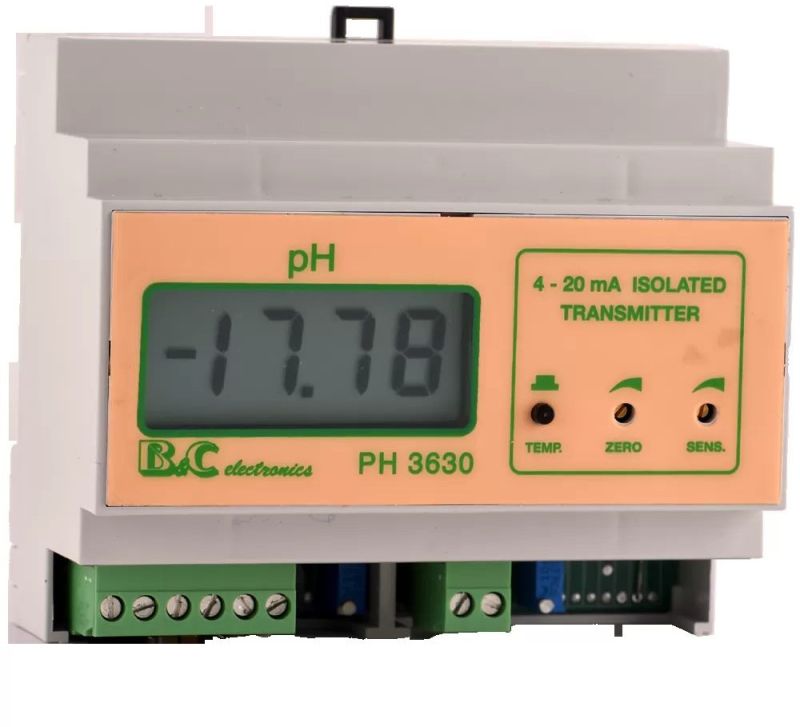

PH3630 Digital PH Transmitter

Min. Order (MOQ) 1 Piece
Power Source Electric
Certification CE Certified
Country of Origin India
Ph Scale 0 - 14.00 pH
Temperature Range 10.0 to 120.0 °C
Power Supply 10 - 30 Vdc
Mounting Rail Din

It is a Two wire transmitter designed for the continuous measurement of pH in a general-purpose industrial environment. This transmitter series powered by voltage between 10-30 Vdc provides an isolated 4-20 mA "current loop" analog output. pH transmitter uses pH sensors and Pt100 RTD temperature sensors. Its modularity, small size and the technology used make it suitable for pH measurements in various process applications.

Features :

LCD Display: Easy to read
Easy configurations
4-20 mA isolated, two-wire "current loop".
pH scale: 0 - 14.00 pH
Temperature range: -10.0 to 120.0 °C
Power supply: 10 - 30 Vdc
Rail Din mounting

Catalogue

Download Detail File : Click Here

Data Sheet

Download Detail File : Click Here

Manual

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

CL3630 Digital Chlorine Transmitter

Min. Order (MOQ) 1 Piece
Country of Origin India
Temperature Display Pt 100 in °C
Available Scales 0-2/0-20 ppm
Temperature Scale -10 to +120 °C
Power Supply 10 - 30 Vdc
Dimensions 105x95x58 mm
Mounting Rail Din

A Two wire transmitter designed for the continuous measurement of Chlorine in a general-purpose industrial environment. This transmitter series powered by voltage between 10-30 Vdc provides an isolated 4-20 mA "current loop" analog output and provides for the connection of selective membrane, potentiostatic or galvanic polarographic sensors. It is designed for manual and automatic temperature compensation. The instrument also provides temperature measurement.

Catalogue

Download Detail File : Click Here

Manual

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

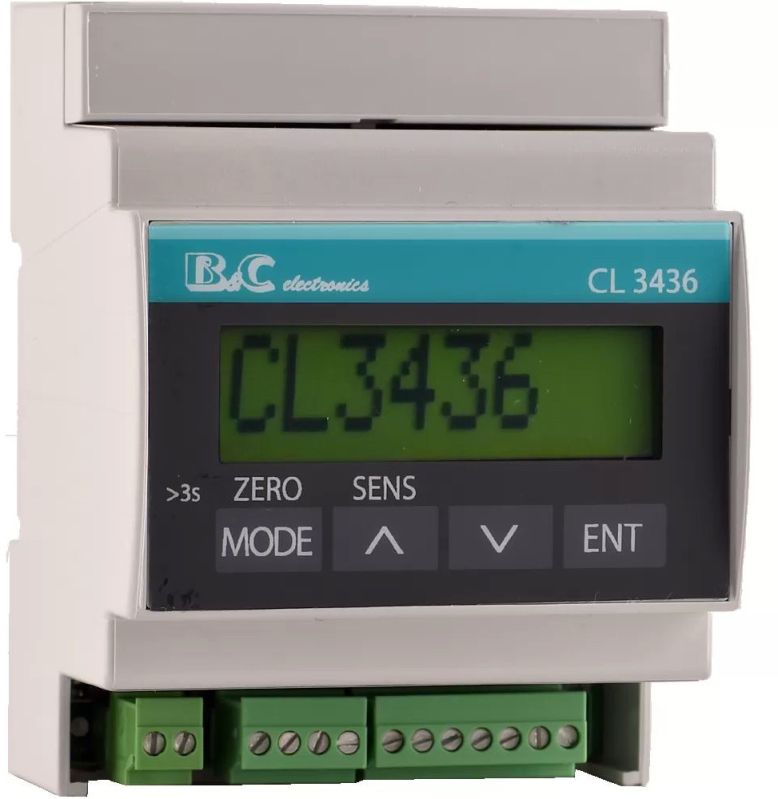

Digital Two Wire Transmitter

Min. Order (MOQ) 1 Piece
Automation Grade Automatic
Certification CE Certified
Accuracy 100%
Country of Origin India
Power Supply 9 - 36 Vdc
Chlorine Range 0-2.000 /20.00PPM
Mounting Rail Din

Model 3436 Series is a Two-wire transmitter design for the continuous measurement of pH, ORP, Chlorine or Conductivity in a general-purpose industrial environment. This transmitter, powered by a voltage between 9 and 36 Vdc, provides an isolated 4-20 mA "current loop" analogue output, an RS485 digital output and Modbus .The instrument uses potentiostatic or polarographic membrane sensors and Pt100 RTD temperature sensors. Its modularity, small size and the technology used make it suitable for measuring oxidants in various process applications.

Catalogue

Download Detail File : Click Here

Manual

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

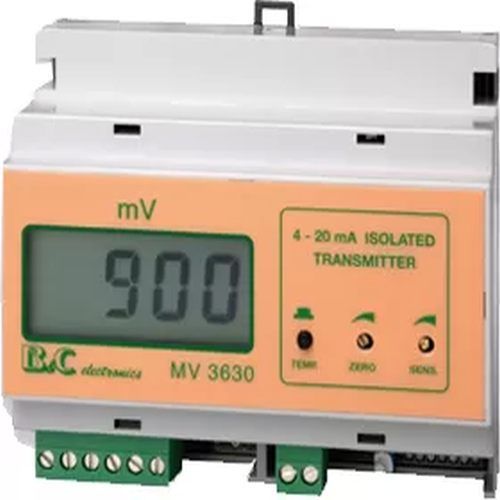

MV3630 Digital Orp Transmitter

Min. Order (MOQ) 1 Piece
Certification CE Certified
Country of Origin India
ORP Range 0- 1000mV
Temperature Range -10.0 to 120.0 °C
Power Supply 10 - 30 Vdc
Mounting Rail Din

It is a Two wire transmitter designed for the continuous measurement of ORP in a general-purpose industrial environment. This transmitter series powered by voltage between 10-30 Vdc provides an isolated 4-20 mA "current loop" analog output. ORP transmitter uses ORP sensors and Pt100 RTD temperature sensors. Its modularity, small size and the technology used make it suitable for ORP measurements in various processapplications.

Features :
