Electronic Relay

Our product range contains a wide range of Revo Ssr Analog Solid Static Relay and Revo Ssr Long Life Solid Static Relay

Revo Ssr Analog Solid Static Relay

Revo Ssr Analog Solid Static Relay
  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Total Carbohydrate 1 Year
  • Phase Single Phase
  • Country of Origin 220V
  • Certification ISI Certified
  • Usage Industrial
  • Shape Rectangular
  • Finishing Polished

Details :

  • REVO SSR Analog Solid State Relay is suitable for resistive and medium or long wave infrared loads
  • Current range depend by the heatsink and ambient temperature. The rating included in the code number is the theoretical range of the junction, to understand the max current allowed you need to calculate it on this graph.
  • An Heatsink is necessary for the correct work of the units, CDAutomation offer a wide range of heatsink to allow you to customize your unit.
  • Supply voltage up to 480V or 600Vac as option
  • Integrated Fuse and Fuse Holder as a standard.
  • Fully isolated from the power
  • Burst Firing (4, 8 or 16 cycles selectable)
  • 4-20mA or 0-10Vdc Linear input as an option
  • Heater Break (HB) alarm to diagnose partial or total load failure with automatic setting, relay alarm output and front LED indication. Available as an option
  • IP20 protection
  • Complies with CE, EAC and cUL (pending)
  • Heatsink are sold separately and are not included with this ordering code.

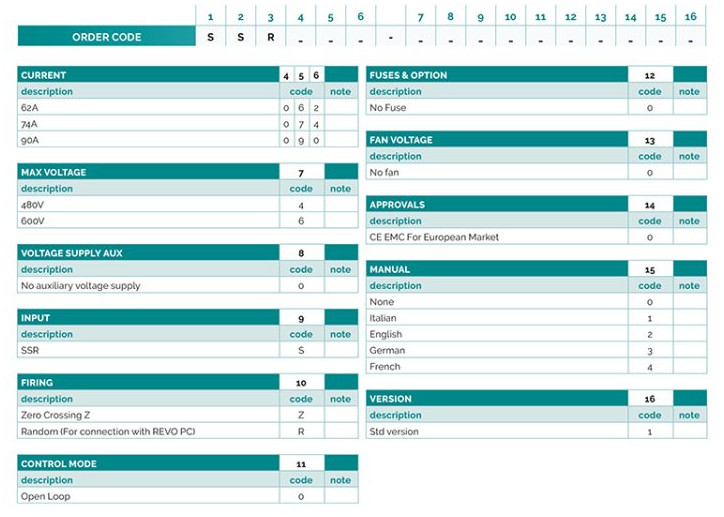

Order Code


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
Revo Ssr Long Life Solid Static Relay

Revo Ssr Long Life Solid Static Relay
  • Min. Order (MOQ) 1 Piece
  • Shape Rectangular
  • Usage Industrial
  • Certification ISI Certified
  • Country of Origin 220V
  • Phase Single Phase
  • Total Carbohydrate 1 Year
  • Country of Origin India

Details :

  • REVO SSR Solid State Relay is suitable for resistive loads
  • Current range depend by the heatsink and ambient temperature. The rating included in the code number is the teoretical range of the junction, to understand the max current allowed you need to calculate it on the graph.
  • Supply voltage up to 480V or 600Vac as option
  • Fully isolated from the power
  • Zero crossing firing mode (ZC).
  • Logic input signal 4 to 30Vdc typical (SSR).
  • Constant current drain, independent of supply voltage with SSR input
  • Integrated Fuse and Fuse Holder with SR1 Size.
  • IP20 protection
  • Complies with CE, EAC and cUL (pending).
  • An Heatsink is necessary for the correct work of the units, CD Automation offer a wide range of heatsink to allow you to customize your unit.
  • Heatsink are sold separately and are not included with this ordering code.

Order Code


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
