Our Products

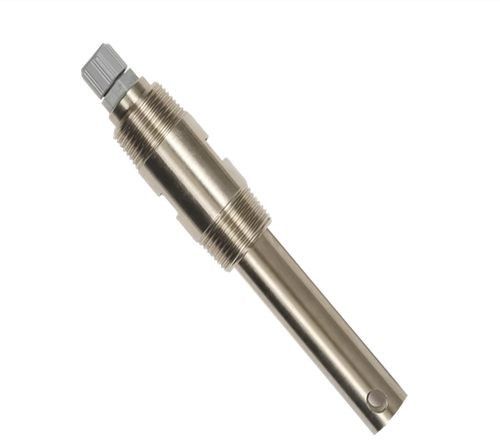

Our Complete range of products are C3630 Digital Conductivity Transmitter, C3436 Digital Conductivity Transmitter, TCP-01 Conductivity Cell Electrode, TCI-1-SS Conductivity Cell Probe and TC7 Benchtop Conductivity Meter.

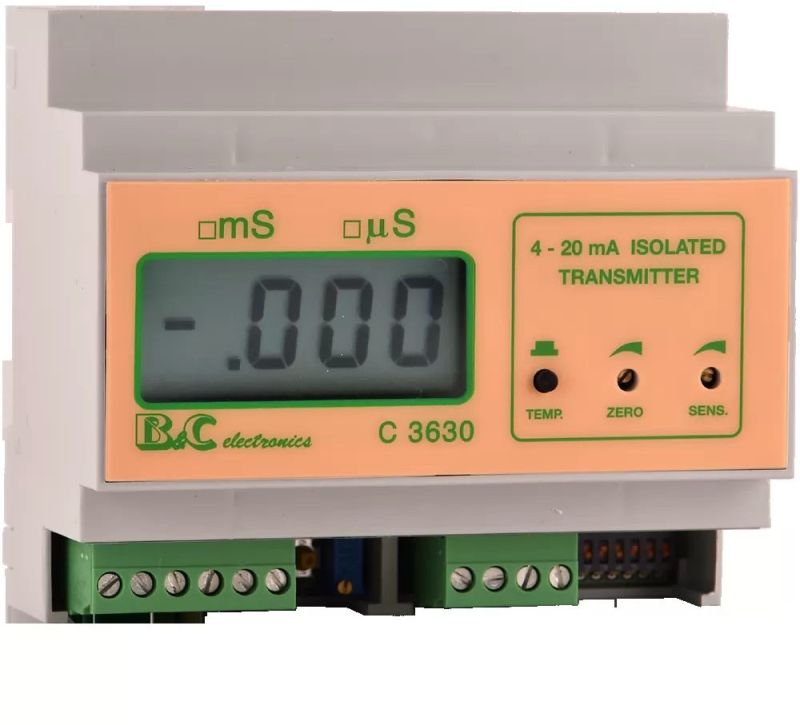

Transmitter powered by a voltage between 10 and 30 Vdc provides an isolated 4-20 mA "current loop" analog output. The instrument uses 2 or 4 electrode conductivity cells with K = 1.00 and Pt100 RTD temperature sensors.Transmitter provide accurate, low costmeasuring andcontrol for industrial process, water treatment and wastewaterapplications. Its modularity, small size and the technology used make it suitable for measuring electricalconductivity in various process applications

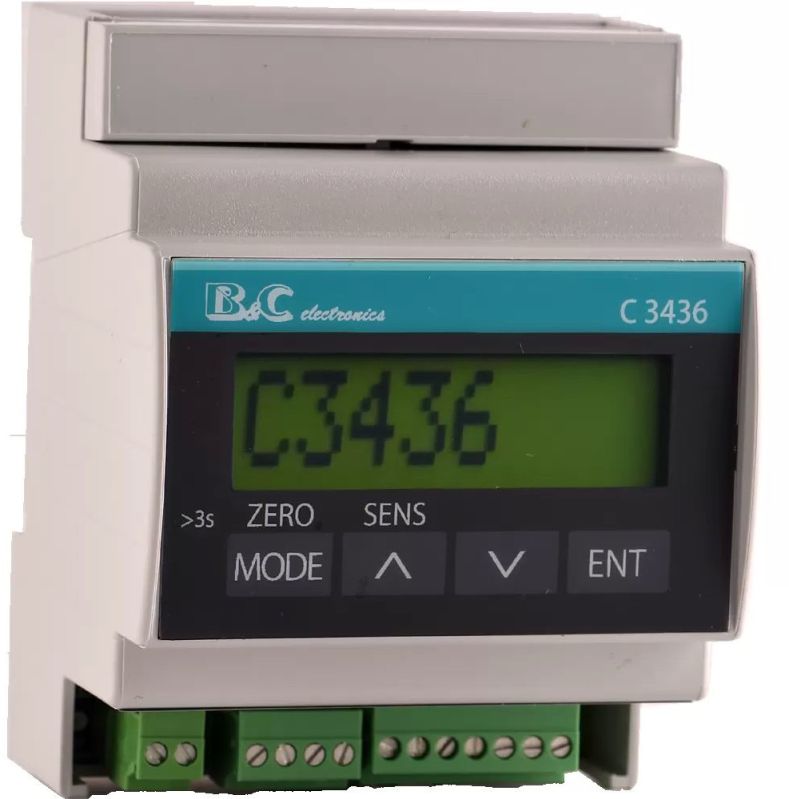

This transmitter, powered by a voltage between 9 and 36 Vdc, provides an isolated 4-20 mA "current loop" analog output, an RS485 digital output and Modbus. The instrument uses 2 or 4 electrode conductivity cells (K = 0.1 - 0.5 - 1 - 10) and Pt100 RTD temperature sensors.The temperature coefficient and reference temperature are selectable by the operator.The calibration of the sensor and the configuration of thetransmitter can be done locally or remotely via the serialinterface. Its modularity, small size and the technology used make it suitable for measuring electrical conductivity in various process applications.

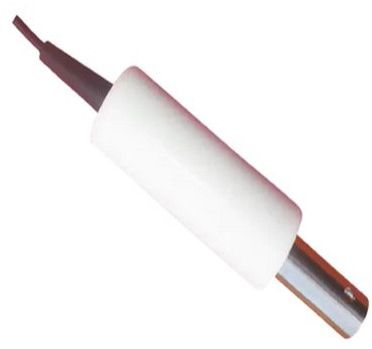

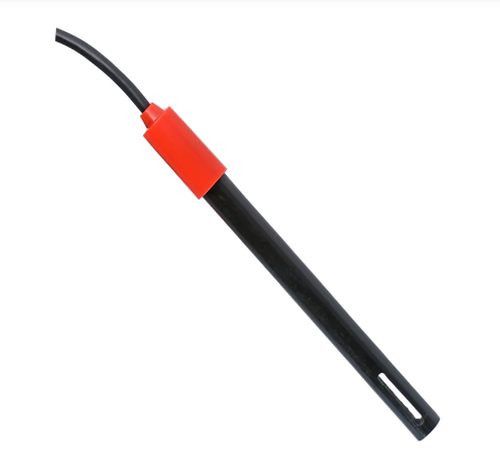

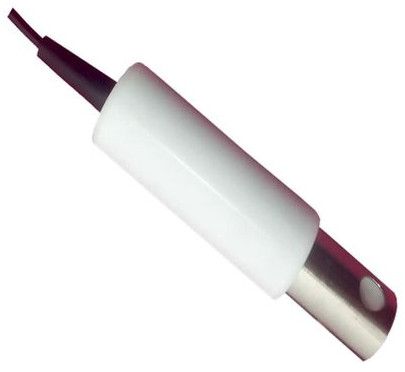

These Plastic-body, Conductivity electrode/cell is designed to conductivity testing application for laboratory and field use. Plastic-body conductivity cells are durable and rugged, making them ideal for field measurements. Each type of conductivity cell has two models with k= 0.1 cm-1 and k=1.0 cm-1 cell constants. When selecting a conductivity cell, check the expected conductivity of the sample and then look at the cell constants of conductivity cells. Choose a conductivity cell that covers the expected sample conductivity. The higher the conductivity value of sample, the higher the cell constant required. A conductivity cell with k=1.0 cm-1 cell constant is the most commonly used because it measures low to high conductivity.
Benefits :

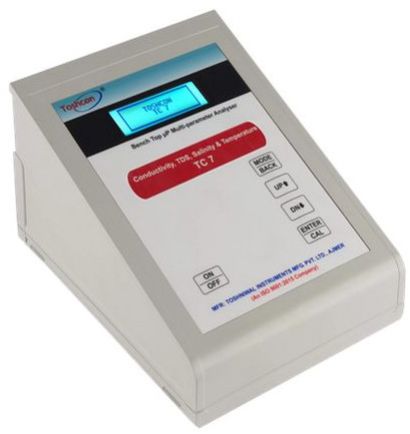

Our new arrival of TOSHCON-TOSHNIWAL Seven Series model TC 7 Conductivity meter with advanced & highly sophisticated Benchtop meter. User friendly, the instrument can measure Conductivity, TDS, Salinity & Temperature. Auto conductivity ranging from 0.01 mS/cm to 1000 mS/cm. Automatically selects correct range and frequency. Automatic cell constant determination with any of three pre-programmed standards (0.01, 0.1 or 1M) KCl.
Salient Features :

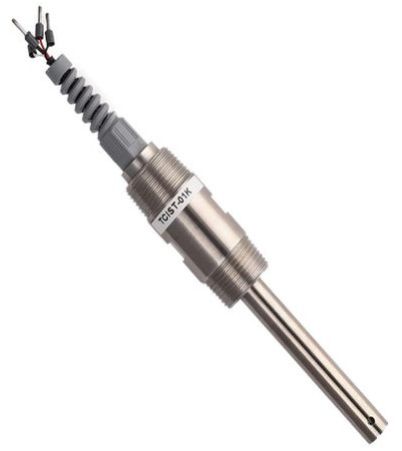

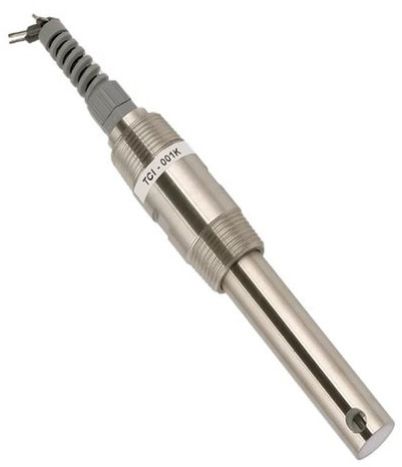

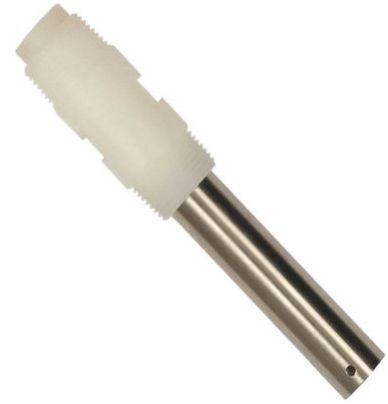

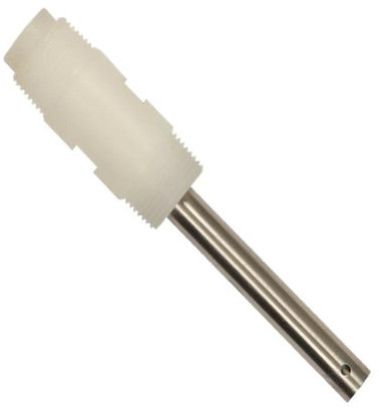

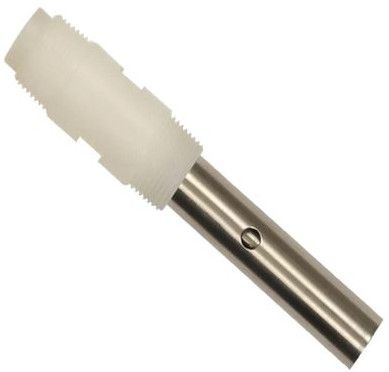

Online Conductivity Probe (Cell Constant 0.1cm-1)are available in Teflon body with SS Electrode & Teflon Insulator for in line or submersible application.
Laboratory Conductivity Probe (Cell Constant 1.0 cm-1) PP Body, to Electrode Measuring Principal, Aquarium / RO Water Application/With ION Trap Technology.

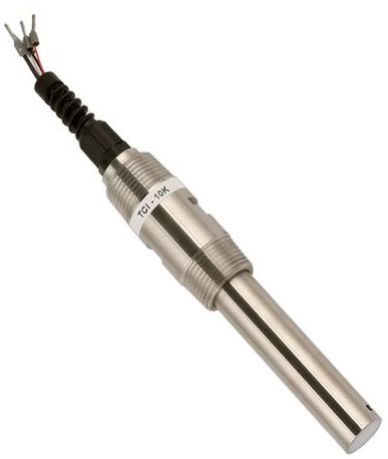

With ION Trap Technology 2 Electrode Measuring Principal with SS316L Body Effluent / Groundwater / RO Water Application.
Laboratory Conductivity Probe (Cell Constant 1.0 cm-1) PP Body, to Electrode Measuring Principal, Aquarium / RO Water Application/With ION Trap Technology.
Mr. Gagandeep Singh (Toshcon)
Gagwana, Ajmer, Rajasthan - 305023, India
