Particle Sensors

Our Complete range of products are Mpqj Orp Electrode, Mqji Orp Electrode, Mqj Orp Electrode, Mqpjfs Orp Electrode and Trchem Orp Electrode.

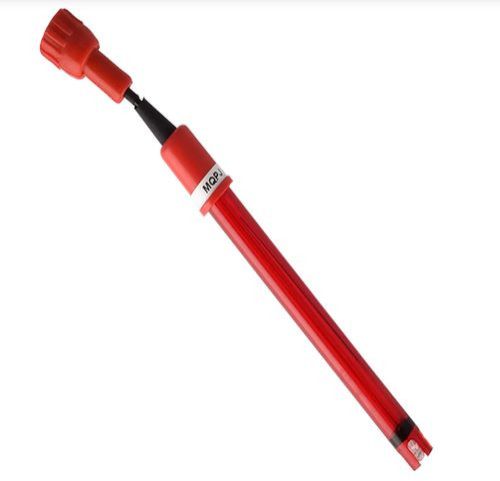

Mpqj Orp Electrode

  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Orp Range +2000 mV
  • Operating Temperature -5 to 80ºC
  • Reference Impedance < 50 KW at 25º C
  • Pressure Upto 6 Bar (87 psi) at 25º C
  • Diaphragm Ceramic
  • No. of Junctions Single / Double
  • Reference System Ag/ AgC
  • Diameter 12 mm

Plastic Body (Gel filled) TOSHCON-TOSHNIWAL produces high quality Laboratory sensors for redox potential measurement for varied applications for Swimming Pools/ Drinking water, Water disinfection and many others. This electrode has a single ceramic junction as part of the reference cell and a platinum ORP sensing Spiral/Rod/Ring/Disc or Gold Ball/Rod/Disc. This design consideration is ideal for laboratories and general purpose ORP measurements, as well as for use as an indicating electrode in ORP titrations.

Benefits :

  • Can be used for Titration.
  • Combination Gel filled electrode.
  • ORPs are affected by temperature and must be measured at a constant temperature (for example, at 25ºC).
  • The electrode is equipped with a single/Double junction.
  • The ceramic reference junction provides a good contact with the sample to provide excellent stability.
  • Shape of membranes available with Platinum: Spiral / Disc or Gold: Disc / Rod.
  • Available with different type of end plugs & connectors (Cap with BNC/ TRC/ S8/ S7 & Variopin).
  • Suitable/ compatible with mostly all make analysers.
  • Supplied with storage bottle for longer life.

Catalogue


Download Detail File : Click Here

Data Sheet


Download Detail File : Click Here

Manual


Download Detail File : Click Here
View Complete Details

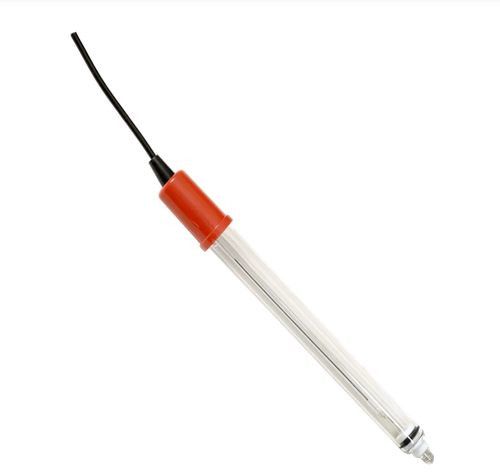

Mqji Orp Electrode

  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Orp Range +2000 mV
  • Operating Temperature -5 to 100ºC
  • Pressure Up to 5 Bar at 25°C
  • No. of Junctions Single/ Double
  • Reference System Ag/ AgCl
  • Reference Electrolyte HGel+
  • Diameter 12 mm
  • Shaft Length 120 mm

Catalogue


Download Detail File : Click Here

Data Sheet


Download Detail File : Click Here

Manual


Download Detail File : Click Here
View Complete Details

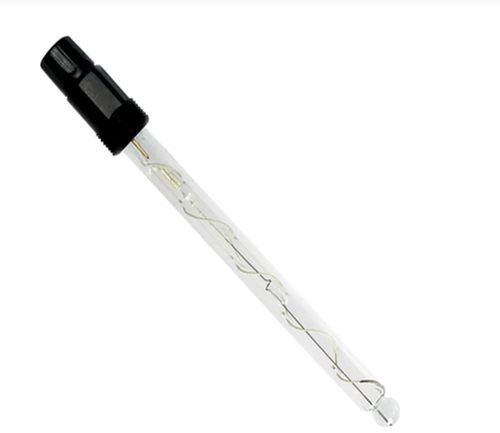

Mqj Orp Electrode

  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Orp Range +2000 mV
  • Operating Temperature -5 to 80ºC
  • Pressure Upto 6 Bar at 25º C
  • Temp. Compensation (Optional) Pt100/ Pt1000/ 30K NTC
  • Diaphragm Ceramic
  • No. of Junctions Single
  • Reference System Ag/ AgC
  • Shaft Material Glass

Glass Body (Gel filled) TOSHCON-TOSHNIWAL produces high quality Laboratory sensors for redox potential measurement for varied applications for Swimming Pools/ Drinking water, Water disinfection and many others. Oxidation-reduction potential (ORP) is an indicator of the oxidizing or reducing ability of a solution, and is measured by methods similar to those for measuring pH. ORPs are measured by using a pH meter with a millivolt meter function in combination with a metal electrode (Platinum Spiral) and a reference electrode.

Benefits :

  • Can be used for Titration.
  • Combination Gel filled electrode.
  • ORPs are affected by temperature and must be measured at a constant temperature (for example, at 25ºC).
  • The Sensor uses HGel+ formulations to give the sensor trouble free working life along with becoming resistant to pressure and temperature. changes.
  • The electrode is equipped with a single/Double junction.
  • The ceramic reference junction provides a good contact with the sample to provide excellent stability.
  • The sensor is housed in chemically resistant Polycarbonate (Plastic) with a Dome shaped membrane bulb which is protecting by electrode housing.
  • Available with different type of end plugs & connectors (Cap with BNC/ TRC/ S8/ S7 & Variopin).
  • Suitable/ compatible with mostly all make analysers.
  • Supplied with storage bottle for longer life.

Catalogue


Download Detail File : Click Here

Data Sheet


Download Detail File : Click Here

Manual


Download Detail File : Click Here
View Complete Details

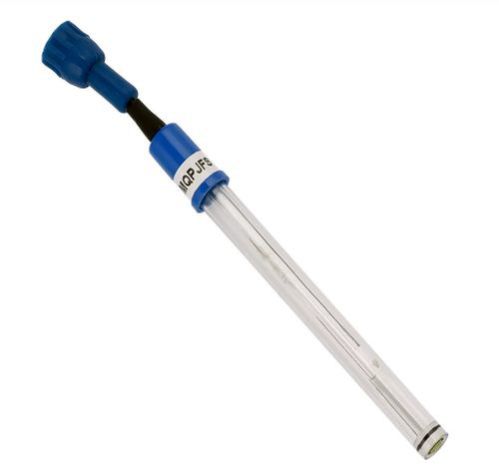

Mqpjfs Orp Electrode

  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Orp Range +2000 mV
  • Operating Temperature -5 to 100ºC
  • Pressure Ambient
  • Temp. Compensation (Optional) Pt100/ Pt1000/ 30K NTC
  • Diaphragm Teflon, Additional Ceramic
  • No. of Junctions Double
  • Reference System Ag/ AgCl
  • Diameter 12 mm

Unbreakable Flat Surface (Gel filled) Electrode TOSHCON-TOSHNIWAL produces high quality Laboratory sensors for redox potential measurement for varied applications for Swimming Pools/ Drinking water, Water disinfection and many others. This probe has a flat surface and is commonly used in testing surface measurements such as cheese, meats, small liquid samples, paper, soil, skin, cloth, leather and leaves. It features a double-junction electrode for Laboratory and general-purpose applications. The junction is sealed for low maintenance use and is easy to clean.

Benefits :

  • Can be used for Titration.
  • Unbreakable Gel filled electrode.
  • ORPs are affected by temperature and must be measured at a constant temperature (for example, at 25ºC).
  • The electrode is equipped with a Double junction.
  • The Teflon, additional ceramic reference junction provides a good contact with the sample to provide excellent stability.
  • Shape of membranes available with platinum disc.
  • Available with different type of end plugs & connectors (Cap with BNC/ TRC/ S8/ S7 & Variopin).
  • Suitable/ compatible with mostly all make analysers.
  • Supplied with storage bottle for longer life.

Catalogue


Download Detail File : Click Here
View Complete Details

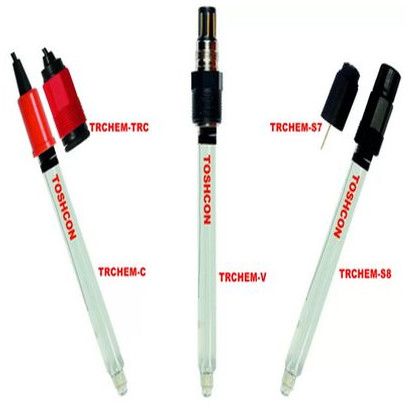

Trchem Orp Electrode

  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Orp Range +2000 mV
  • Operating Temperature -5 to 100ºC
  • Pressure Upto 6 Bar at 25º C
  • No. of Junctions Double
  • Reference System Ag/ AgCl
  • Reference Electrolyte HGel+/ CLP+
  • Diameter 12 mm
  • Shaft Length 120 mm

The TCHEM family of pH electrodes are ideal for any industry for low or high pH, HF application or high temp. applications demanding high performance from an electrode.

Catalogue


Download Detail File : Click Here
View Complete Details

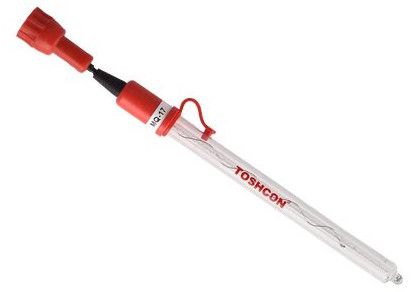

MQ17 Orp Electrode

  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Orp Range +2000 mV
  • Operating Temperature -5 to 80ºC
  • Reference Impedance < 50 KW at 25º C
  • Pressure Upto 6 Bar (87 psi) at 25º C
  • Diaphragm Ceramic
  • No. of Junctions Single
  • Diameter 12 mm

Glass Body (Refillable KCl filled) TOSHCON-TOSHNIWAL produces high quality Laboratory sensors for redox potential measurement for varied applications for Swimming Pools/ Drinking water, Water disinfection and many others. Invariably the membrane Glass is called as the sensing tip of pH Sensor, but in Redox Sensors instead of membrane glass the sensing tip is Platinum or Gold. The shapes & costs vary but the measurement technique remains the same. The other part of the reference Sensor still remains similar in both pH & Redox and is produced with different Junctions and Electrolytes, depending on the application.

Benefits :

  • Can be used for Titration.
  • Combination KCL refillable electrode.
  • ORPs are affected by temperature and must be measured at a constant temperature (for example, at 25ºC).
  • The electrode is equipped with a single/Double junction.
  • The ceramic reference junction provides a good contact with the sample to provide excellent stability.
  • Available with different type of end plugs & connectors (Cap with BNC/ TRC/ S8/ S7 & Variopin).
  • Suitable/ compatible with mostly all make analysers.
  • Supplied with storage bottle for longer life.

Catalogue


Download Detail File : Click Here

Data Sheet


Download Detail File : Click Here

Manual


Download Detail File : Click Here
View Complete Details

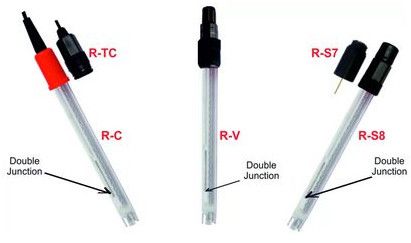

R Series Orp Electrode

  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Orp Range +2000 mV
  • Operating Temperature 0 - 80ºC
  • No. of Junctions Double
  • Pressure Upto 6 Bar at 25º C
  • Reference System Ag/ AgCl
  • Diaphragm Ceramic
  • Diameter 12 mm
  • Shaft Length 120 mm

Redox Electrode 'R ' Series Plastic Plastic Body Double Junction, Gel Filled Electrode Pharma, Petrochemical, Swimming Pools, Electroplating, Food, Chemical, Fertilizer, Dairy, Oil, Drinking Water, Ground Water, Waste Water and Applications.

Catalogue


Download Detail File : Click Here
View Complete Details

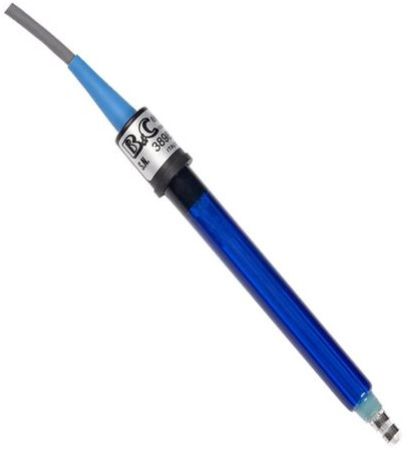

Potentiostatic Chlorine Sensor

  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Electrodes 2 Platinum Ring
  • Reference Gel with Annular Junction
  • Body Glass
  • Cable 3 M
  • Max Pressure 10 Bar At 20°c
  • Dimensions 110x12 mm

Potentisotatic Chlorine Sensor, Maintenance free sensors with no running cost or changes required of consumables like membranes & electrolyte solution, Range: 0/ 2.000/ 20.00 ppm Electrodes: 2 platinum rings, Cable 3mtr.



Catalogue


Download Detail File : Click Here

Manual


Download Detail File : Click Here
View Complete Details

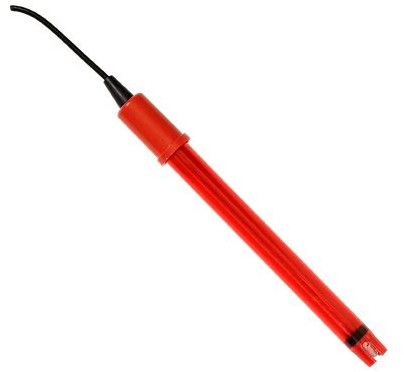

Mqpje Orp Electrode

  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Orp Range +2000 mV
  • Operating Temperature -5 to 80ºC
  • Pressure Upto 6 Bar at 25º C
  • Diaphragm Ceramic
  • No. of Junctions Single/ Double
  • Reference System Ag/ AgCl
  • Diameter 12 mm
  • Shaft Length 120 mm

Plastic Body (Gel filled) TOSHCON-TOSHNIWAL produces high quality Laboratory/Industrial sensors for redox potential measurement for varied applications for Swimming Pools/ Drinking water, Water disinfection and many others. This electrode has a single ceramic junction as part of the reference cell and a platinum ORP sensing Spiral/Rod/Ring/Disc or Gold Ball/Rod/Disc. This design consideration is ideal for laboratories and Industrial purpose ORP measurements, as well as for use as an indicating electrode in ORP titrations.

Benefits :

  • Can be used for Titration.
  • Combination Gel filled electrode.
  • ORPs are affected by temperature and must be measured at a constant temperature (for example, at 25ºC).
  • The electrode is equipped with a single/Double junction.
  • The ceramic reference junction provides a good contact with the sample to provide excellent stability.
  • Shape of membranes available with platinum spiral.
  • Available with different type of end plugs & connectors (Cap with BNC/ TRC/ S8/ S7 & Variopin).
  • Suitable/ compatible with mostly all make analysers.
  • Supplied with storage bottle for longer life.

Catalogue


Download Detail File : Click Here

Data Sheet


Download Detail File : Click Here

Manual


Download Detail File : Click Here
View Complete Details

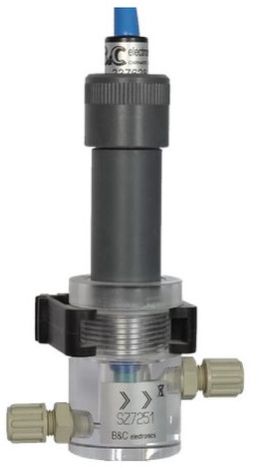

Chlorine Sensor Flow Cell

  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Transparent Body Acrylic
  • Holder PVC
  • Fittings Polypropylene
  • Tubing polythene
  • Balls N° 20 into the body
  • Diameter 40 Mm Max
  • Length 150 Mm Max

Catalogue


Download Detail File : Click Here

Manual


Download Detail File : Click Here
View Complete Details
