Solid State Relays

Our offered Product range includes Revo S Three Phase Static Relay, Revo S 3PH Three Phase Static Relay and Revo Sx Multiple Low Power Solid Static Relay.

Revo S Three Phase Static Relay

Min. Order (MOQ) 1 Piece
Application Industrial
Certification CE Certified
Country of Origin 220V
Phase Type Three Phase
Frequency 50Hz
Total Carbohydrate 1Year
Country of Origin India

Details :

REVO S 2PH is a three phases static relay suitable for driving loads with star connection without neutral or delta, on two phases. The unit has been designed to save space and work.
Current range – 30A, 35A, 40A, 60A, 75A, 90A, 120A, 150A, 180A, 210A, 300A, 400A, 450A, 500A, 600A, 700A, 800A
Voltage range 480V, 600V and 690V (starting from 60A)
Fully isolated from the power
Zero crossing firing mode (ZC) or Burst Firing (4, 8 or 16 cycles selectable)
Logic input signal 4 to 30Vdc typical (SSR) plus 4-20mA or 0-10Vdc Linear input as an option
Constant current drain, independent of supply voltage with SSR input
Heater Break (HB) alarm to diagnose partial or total load failure with automatic setting, relay alarm output and front LED indication. Available as an option
Side by side mounting
Special design Heatsink with high dissipation value
IP20 protection
Complies with EMC, EAC, cULus® 508 Listed and cUL® listed up to 700A as an option. UL® listed for 800A as an option.

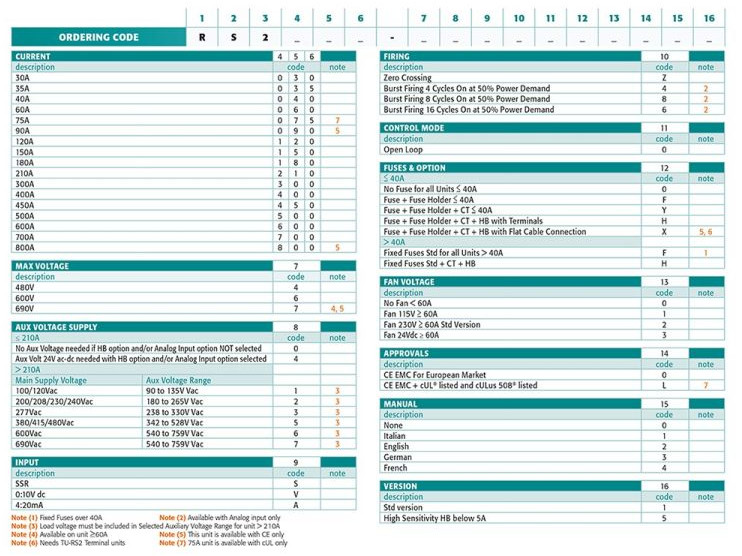

Order Code

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

Revo S 3PH Three Phase Static Relay

Min. Order (MOQ) 1 Piece
Application Industrial
Size Standard
Certification CE Certified
Phase Type Three Phase
Frequency 50Hz
Total Carbohydrate 1Year
Country of Origin India

Details :

Revo S 3PH is a three phases static relay suitable for driving loads with star connection with or without neutral and delta on three phases. The unit has been designed to save space and work.
Current range – 30A, 35A, 40A, 60A, 75A, 90A, 120A, 150A, 180A, 210A, 300A, 350A, 400A, 450A, 500A, 800A
Voltage Range 480V, 600V and 690V (starting from 60A)
Fully isolated from the power
Zero crossing firing mode (ZC) or Burst Firing (4, 8 or 16 cycles selectable)
Logic input signal 4 to 30V DC typical (SSR) plus 4-20mA or 0-10V DC Linear input as an option
Constant current drain, independent of supply voltage with SSR input
Heater Break (HB) alarm to diagnose partial or total load failure with automatic setting, relay alarm output and front LED indication. Available as an option
Side by side mounting
Special design Heatsink with high dissipation value
IP20 protection
Complies with EMC, EAC, cULus® 508 listed and cUL® listed up to 500A as an option. UL® for 800A as an option.

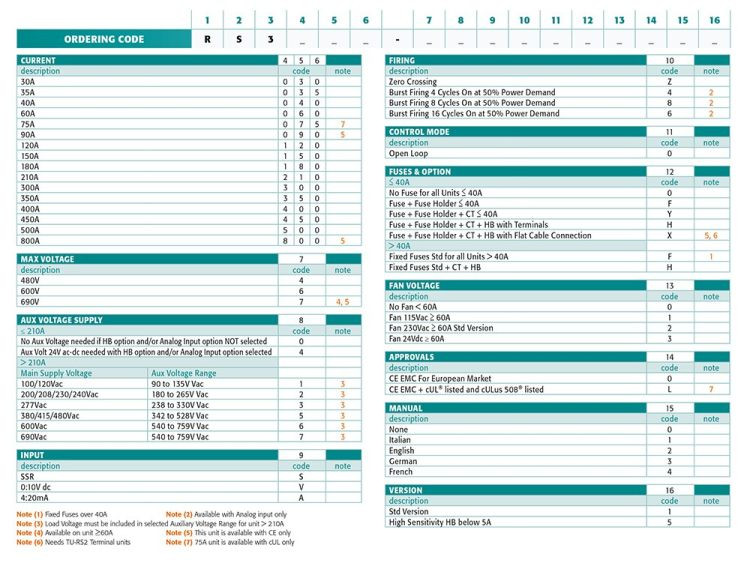

Order Code

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

Revo Sx Multiple Low Power Solid Static Relay

Min. Order (MOQ) 1 Piece
Finishing Polished
Shape Rectangular
Certification ISI Certified
Phase Single Phase
Total Carbohydrate 1 Year
Country of Origin India
Application Industrial

Details :

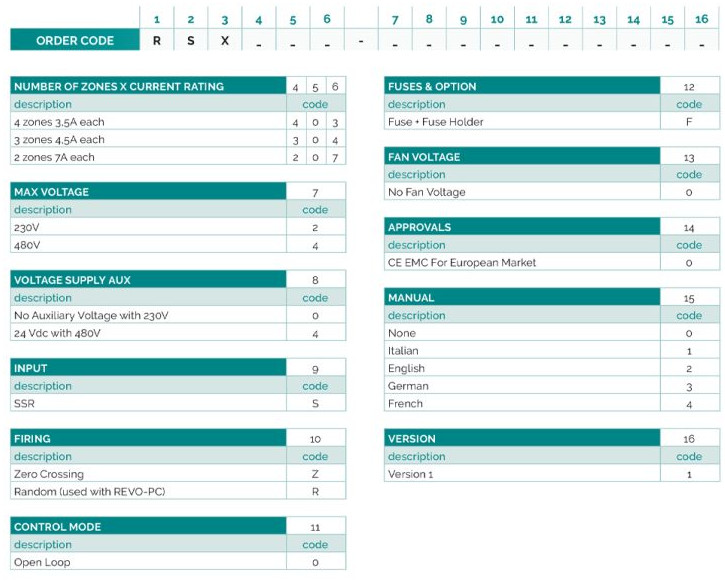

This unit is available in three version
Each unit includes Fuse and Fuse Holder, thyristor and heat sink with its own Firing circuit
Zero Crossing Firing
Max. voltage 240V or 480V AC as option
Insulated input
LED for On Off Status indication
LED for fuse failure indication
Plug in connection for auxiliary and power terminations
Small dimensions Width: 36mm, Depth: 86mm, Height:121mm
Din rail mounting or screw mounting
Can be used in applications with many zones and low power as thermoforming, blow Moulding and Hot Runners.
