Our Products
Our Complete range of products are P6700 PID Temperature Controller, Pro EC-44 PID Temperature Controller, P4170 PID Temperature Controller, P4100 PID Temperature Controller and Cal Maxvu 16 PID Temperature Controller.
The 6700+ limit controller is a member of the P series family. The instrument provides a latched relay output which is activated when process value either exceeds or falls below the a pre-set limit level, providing a fail-safe cut off which has to then be reset before the process can continue. The LED indication shows when limits have been exceeded and when the relay is latched out. With a full range of universal sensor input options the 6700+ provides a valuable control 'watchdog ' for most systems.
Features :
The Pro-EC44 dual temperature controller has been designed to simplify user operation through an intuitive HMI combined with easy-to-use configuration and simulation software, Blue Control©. This allows the controller to be used by a variety of personnel without compromising the functionality available. Quick access to important product information is also facilitated with a front USB port. The Pro-EC44 dual temperature controller is well suited to challenging applications such as: Plastics, Extrusion & Rubber, Industrial Ovens & Furnaces, Laboratory and Test Equipment, Environmental Chambers, Boiler & Steam Processes, Food & Beverage, Packaging.
Features :

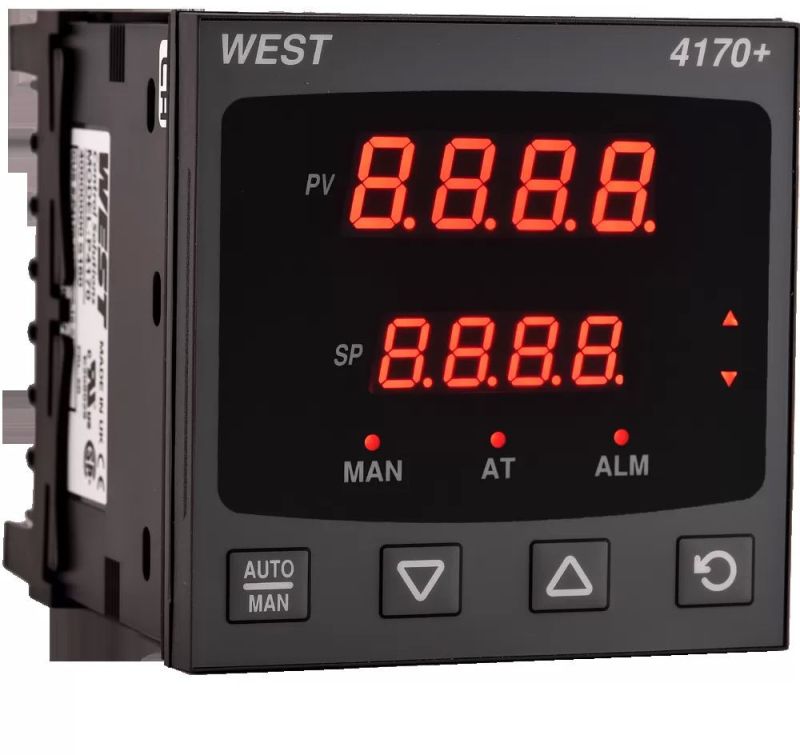

The 4170+ single loop controller is part of the Plus series range and has 3-point stepping control designed specifically for open loop, valve motor drive (VMD) applications. The 4170+ incorporates advanced tuning algorithms, with selectable pre-tune and self-tuning for easier setup. The self-tune also reduces output activity to an absolute minimum without compromising control quality, thereby reducing wear and tear on mechanical components such as valves, contactors and relays. In test, these controls have cut down valve oscillation from 30 to 40 times a minute to just a few. Pre-tune plus self-tuning has also been shown to get on control up to 3 times faster. In addition to the VMD outputs, further output options exist which can be designated as outputs for alarms, 24 VDC transmitter power supply, retransmit process value or setpoint.
Features :

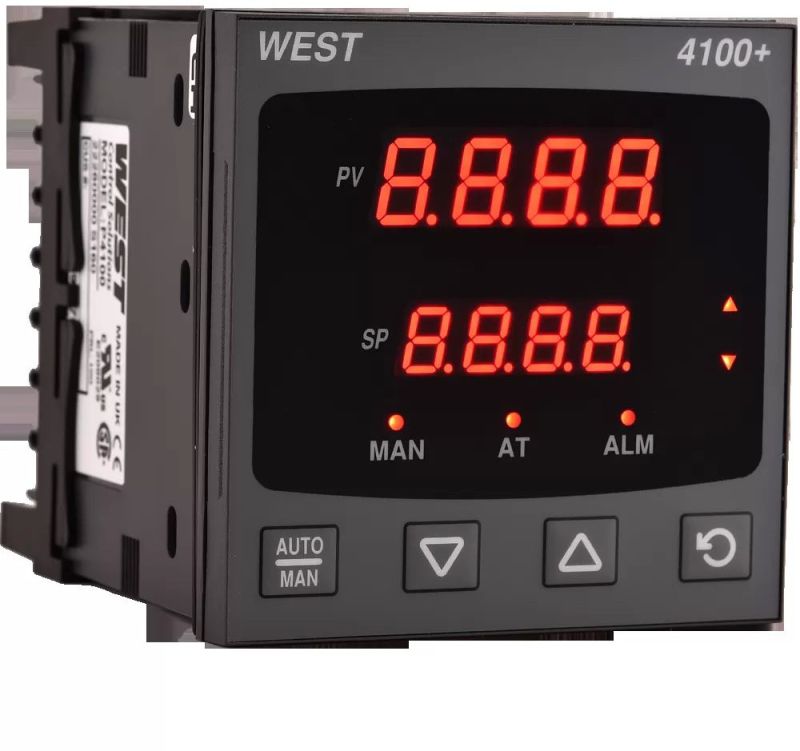

The West 4100+ is part of the Plus Series of controllers that take flexibility and ease of use to new levels. The product benefits from having more versatile features and user-friendly functionalities such as remote setpoint inputs, digital inputs, plug-in output modules, a customisable operator/HMI menu, jumperless and auto-hardware configuration, and 24VDC transmitter power supply. It has been designed to incorporate improvements, save users’ time (as much as 50% on product set-up), reduce inventory stock and virtually eliminate the likelihood of operator errors. The 4100+ provides a product which surpasses competitive offerings in terms of ease of use, delivery and value for money.
Features :

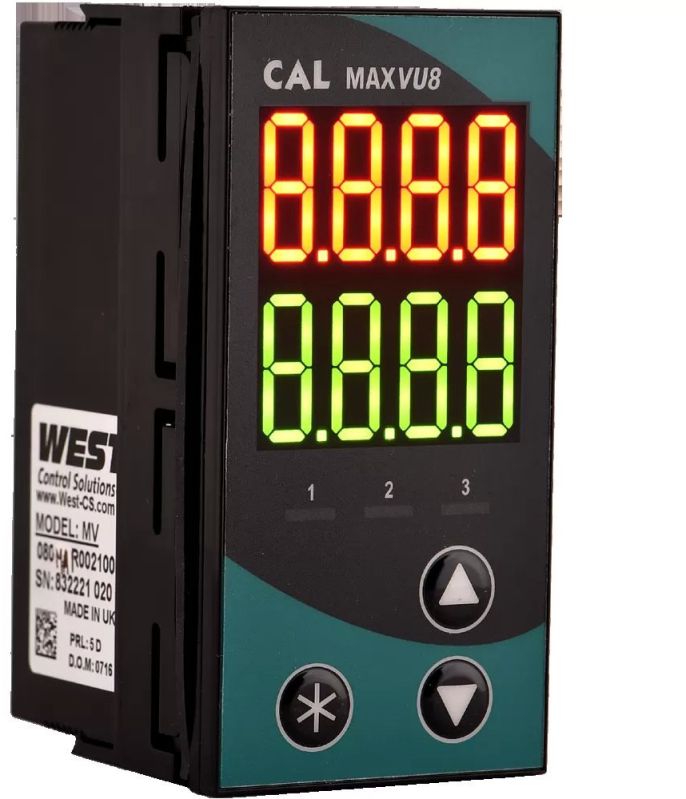

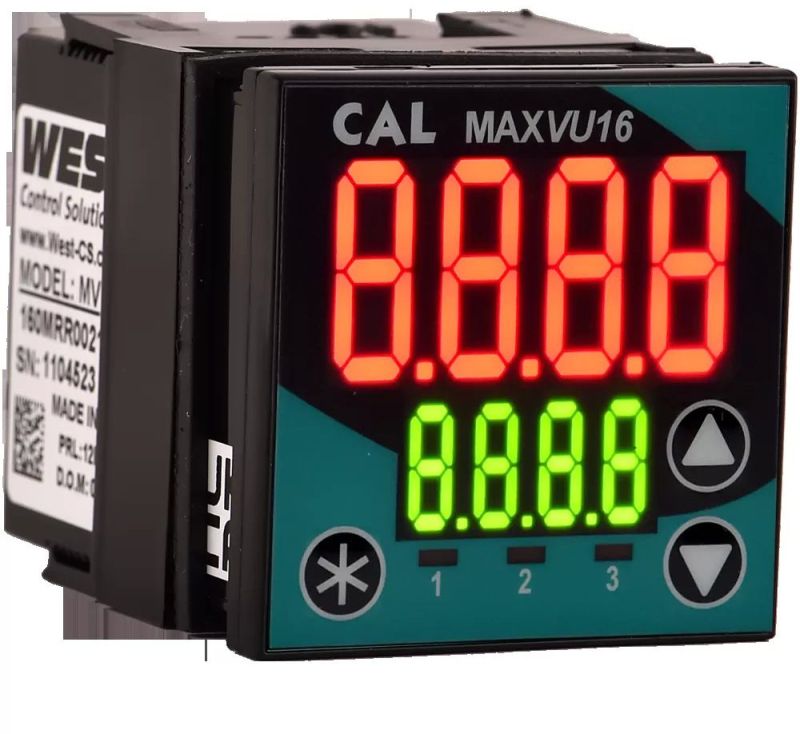

MAXVU has been designed to offer essential temperature control in a device that’s easy to install, fast to program and with improved display visibility. MAXVU provides an affordable solution for applications where primary temperature control functions such as heat only or heat/cool are needed, it offers a universal input and up to 3 outputs with a choice of either relay or SSR. Typical applications include packaging processes such as sealers and many more.
Features :

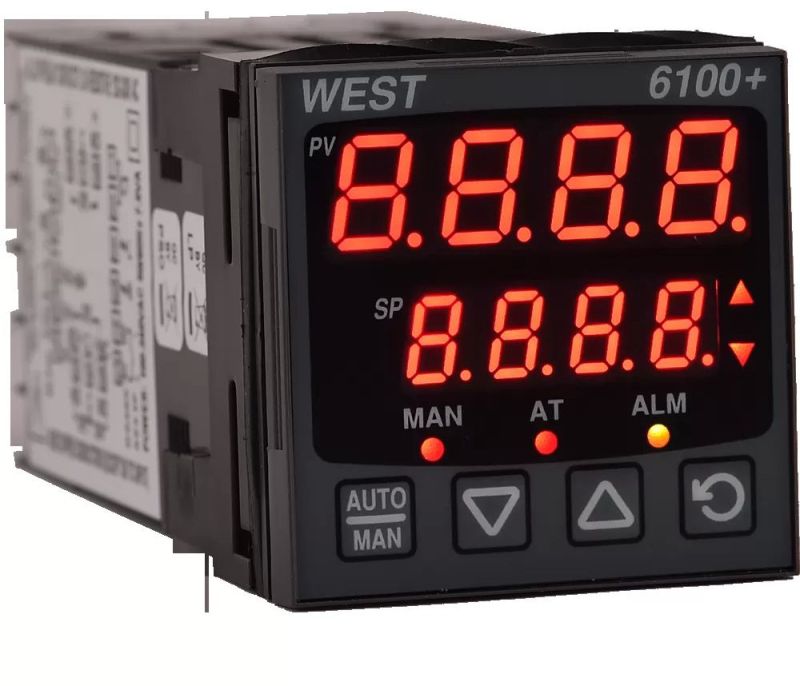

The West 6100+ is part of the Plus Series of controllers that take flexibility and ease of use to new levels. The product benefits from having more versatile features and user-friendly functionalities such as remote setpoint inputs, digital inputs, plug-in output modules, a customisable operator/HMI menu, jumperless and auto-hardware configuration, and 24VDC transmitter power supply. It has been designed to incorporate improvements, save users’ time (as much as 50% on product set-up), reduce inventory stock and virtually eliminate the likelihood of operator errors. The 6100+ results in providing a product which surpasses competitive offerings in terms of ease of use, delivery and value for money.
Features :
The West 8100+ is part of the Plus Series of controllers that take flexibility and ease of use to new levels. The product benefits from having more versatile features and user-friendly functionalities such as remote setpoint inputs, digital inputs, plug-in output modules, a customisable operator/HMI menu, jumperless and auto-hardware configuration, and 24VDC transmitter power supply. It has been designed to incorporate improvements, save users’ time (as much as 50% on product set-up), reduce inventory stock and virtually eliminate the likelihood of operator errors. The 8100+ results in providing a product which surpasses competitive offerings in terms of ease of use, delivery and value for money.
Features :
MAXVU has been designed to offer essential temperature control in a device that’s easy to install, fast to program and with improved display visibility. MAXVU provides an affordable solution for applications where primary temperature control functions such as heat only or heat/cool are needed, it offers a universal input and up to 3 outputs with a choice of either relay or SSR. Typical applications include packaging processes such as sealers and many more.
Features :
The 8170+ single loop controller is part of the Plus series range and has 3-point stepping control designed specifically for open loop, valve motor drive (VMD) applications. The 8170+ incorporates advanced tuning algorithms, with selectable pre-tune and self-tuning for easier setup. The self-tune also reduces output activity to an absolute minimum without compromising control quality, thereby reducing wear and tear on mechanical components such as valves, contactors and relays. In test, these controls have cut down valve oscillation from 30 to 40 times a minute to just a few. Pre-tune plus self-tuning has also been shown to get on control up to 3 times faster. In addition to the VMD outputs, further output options exist which can be designated as outputs for alarms, 24 VDC transmitter power supply, retransmit process value or setpoint.
Features :

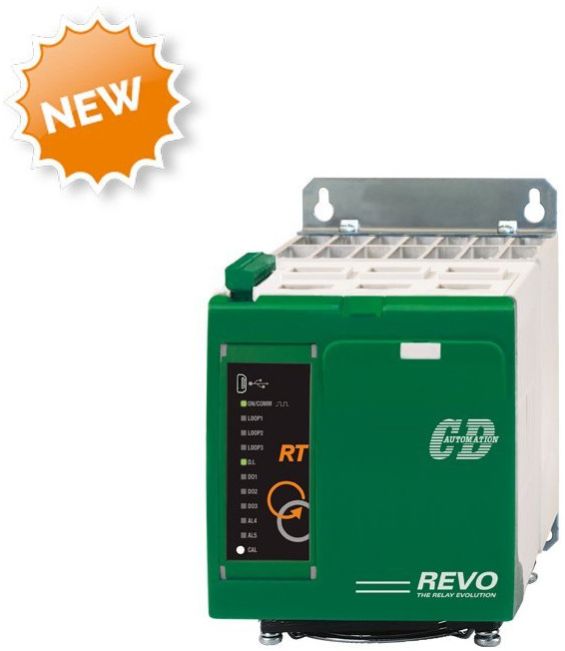

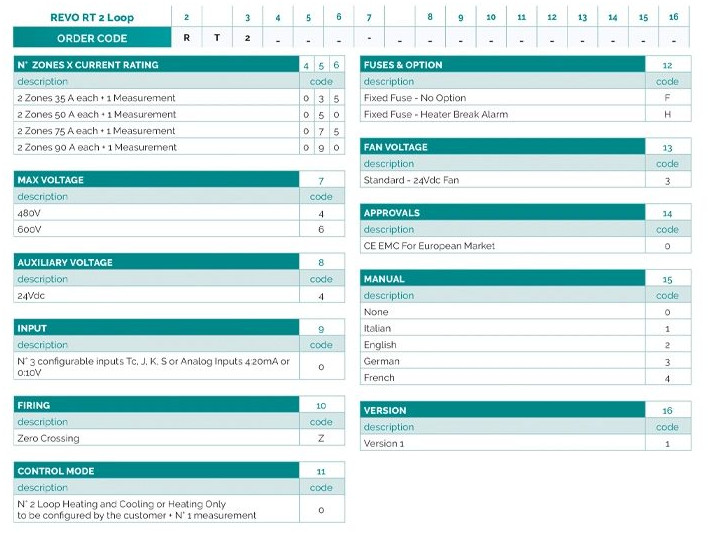

The REVO RT is a compact power controller unit, which integrates inside a single phase static group for each loop for control of the electrical power.
Each unit manages 3 independent control loops. The unit can be purchased with the diagnostic functions for the load and for the SCRs. In this case there is a amperometric transformer for each channel.
Each power channel is always equipped with extra rapid fuses.
The power inside the unit, current transformer and extra rapid fuses in a single unit save a considerable space inside the panel and time for wiring.
Available in the following currents: 35, 50, 75 and 90A with maximum voltages 480V and 600V.

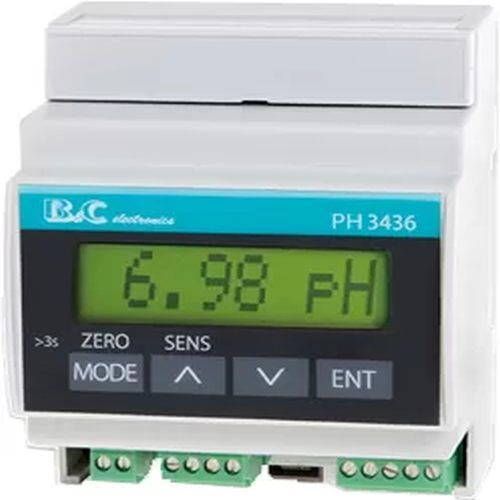

Model 3436 Series is a Two-wire transmitter design for the continuous measurement of pH, ORP, Chlorine or Conductivity in a general-purpose industrial environment. This transmitter series , powered by a voltage between 9 to 36 Vdc, provides an isolated 4-20 mA "current loop" analog output, an RS485 digital output and Modbus .The instrument uses pH or redox sensors and RTD Pt100 temperature sensors. Its modularity, small size and the technology used make it suitable for pH or redox measurements in various process applications.
Features :
The CAL 9500P 1/16DIN programmable temperature controller has a programmer function with up to 31 programs (126 segments max). It is designed to be easy-to-use and reliable within the most demanding process and manufacturing applications.
Features :
The West N2300 offers real flexibility as it can be used as a controller or an indicator. The instrument has the largest red or green digital display in a 1/32 DIN package. In addition to the red or green display the N2300 benefits from three additional multi-colour LEDs to indicate process, alarm and configuration statuses. The large, tactile rubberized keys provide a more practical human interface which is complemented with a specially developed hands-free PID tuning algorithm, Easy-Tune, which continuously monitors and improves control. Alternatively the instrument can be manually fine-tuned for a specific application. The N2300 indicator has up to two outputs (relay or solid state driver) for alarm. The controller version can have an additonal relay or RS232 serial communications.
The 6170+ single loop controller is part of the Plus series range and has 3-point stepping control designed specifically for open loop, valve motor drive (VMD) applications. The 6170+ incorporates advanced tuning algorithms, with selectable pre-tune and self-tuning for easier setup. The self-tune also reduces output activity to an absolute minimum without compromising control quality, thereby reducing wear and tear on mechanical components such as valves, contactors and relays. In test, these controls have cut down valve oscillation from 30 to 40 times a minute to just a few. Pre-tune plus self-tuning has also been shown to get on control up to 3 times faster. In addition to the VMD outputs, further output options exist which can be designated as outputs for alarms, 24 VDC transmitter power supply, retransmit process value or setpoint.
Features :
