Radar Level Transmitter in Delhi

80Ghz Stainless Steel Radar Level Transmitter For Liquid Measuring

• Accuracy : +-1mm
• Supply Type : Manufacturer
• Frequency : 80Ghz
• Country of Origin : India
• Number Of Flower : Radar Level Transmitter
• Material : Stainless Steel
• Application : For Liquid Measuring

Lfia Stainless Steel Radar Level Transmitter, Color : Costmaisation For Liquid Measuring

• Packaging Type : Costmaisation
• Country of Origin : India
• Number Of Flower : Radar Level Transmitter
• Supply Type : Manufacturer
• Material : Stainless Steel, STAINLESS STEAL,stainless steal
• Condition : New
• Application : For Liquid Measuring

Radar Level Transmitter

80GHz SRL1406 Dome Sensor Radar Level Transmitter

• MOQ : 10 Piece
• Process Pressure : -0.1~0.3Mpa
• Range : 10m/20m/35m
• Accuracy : ±2mm
• Process Temperature : -40~80°C
• Signal output : 4~20mA/HART 24V DC 2-wire /4-wire system; 4~20mA/HART 220V AC 4-wire system; RS485/Modbus
• Process Connection : M66*2
• Supply Type : Manufacturer
• Frequency : 80GHz,8
• Explosion-proof Grade : Exia IIC T6 Ga

SRL1702 26GHz Horn Radar Level Transmitter

• MOQ : 10 Piece
• Frequency : 26GHz
• Range : 30m/35m
• Application : Mainly used in liquid level measurement of liquid storage tanks in petroleum, chemical, smelting, water and other industries.
• Protection Class : IP68
• Process Pressure : -0.1~4.0Mpa
• Process Connection : Composite Flange
• Supply Type : Manufacturer
• Signal output : 4~20mA/HART 24V DC 2-wire /4-wire system; 4~20mA/HART 220V AC 4-wire system; RS485/Modbus
• Accuracy : ±2mm

SRL1504 Coaxial Probe Radar Level Transmitter

• MOQ : 10 Piece
• Process Connection : Thread/Flange
• Signal output : 4~20mA/HART 24V DC 2-wire /4-wire system; 4~20mA/HART 220V AC 4-wire system; RS485/Modbus
• Process Temperature : -200~400°C
• Explosion-proof Grade : Exia IIC T6 Ga; Exd IIC T6 Gb
• Accuracy : ±3mm
• Supply Type : Manufacturer
• Protection Class : IP68
• Application : Liquid Level Measurement of High Temperature and High-pressure Liquid Storage Tank
• Frequency : 100MHz~1.8GHz

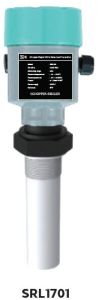

SRL1701 26GHz Radar Level Transmitter

• MOQ : 10 Piece
• Supply Type : Manufacturer
• Explosion-proof Grade : Exia IIC T6 Ga
• Protection Class : IP68
• Process Pressure : 0.1~0.3Mpa
• Signal output : 4~20mA/HART 24V DC 2-wire /4-wire system; 4~20mA/HART 220V AC 4-wire system; RS485/Modbus
• Range : 20m
• Accuracy : ±3mm
• Frequency : 26GHz
• Process Connection : Thread/ Flange

SRL1502 Rod Probe Radar Level Transmitter

• MOQ : 10 Piece
• Range : 6m
• Process Connection : Thread/Flange
• Signal output : 4~20mA/HART 24V DC 2-wire /4-wire system; 4~20mA/HART 220V AC 4-wire system; RS485/Modbus
• Protection Class : IP68
• Application : Level Measurement of Liquid Storage Tanks
• Process Pressure : -0.1~4.0Mpa
• Frequency : 100MHz~1.8GHz
• Process Temperature : -40~250°C
• Supply Type : Manufacturer

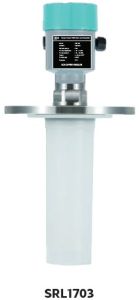

SRL1703 26GHz Radar Level Transmitter

• Accuracy : ±2mm
• Application : Liquid Level Measurement of Corrosive Liquids such as Strong Acid, Strong Alkali and Strong Water Vapor
• Supply Type : Manufacturer
• Frequency : 26GHz
• Protection Class : IP68
• Signal output : 4~20mA/HART 24V DC 2-wire /4-wire system; 4~20mA/HART 220V AC 4-wire system; RS485/Modbus
• Process Connection : Flange
• Explosion-proof Grade : Exia IIC T6 Ga
• Process Pressure : 0.1~1.0Mpa
• Range : 30m/35m

80GHz SRL1401 Thread Connected Radar Level Transmitter

• MOQ : 10 Piece
• Bluetooth Function : Yes/no
• Frequency : 80GHz
• Process Connection : Thread/Flange
• Explosion-proof Grade : Exia IIC T6 Ga; Exd IIC T6 Gb
• Supply Type : Manufacturer
• Application : Measurement of liquid level in general liquid storage tanks, such as chemical industry, smelting, etc.
• Range : 10m/20m/35m
• Process Pressure : -0.1~4.0Mpa
• Protection Class : IP68

80GHz SRL1403 Solid Granule Radar Level Transmitter

• MOQ : 10 Piece
• Application : Measurement of material level of solid storage tanks in cement, steel, electric power, coal, building materials and other industries (E. G. Powder, block, granule).
• Frequency : 80GHz
• Accuracy : ±1mm
• Explosion-proof Grade : Exia IIC T6 Ga; Exd IIC T6 Gb
• Signal output : 4~20mA/HART 24V DC 2-wire /4-wire system; 4~20mA/HART 220V AC 4-wire system; RS485/Modbus
• Process Pressure : -0.1~0.3Mpa
• Supply Type : Manufacturer
• Bluetooth Function : Yes/no
• Process Temperature : -40~250°C

80GHz SRL1404 High Temperature Radar Level Transmitter

• MOQ : 10 Piece
• Signal output : 4~20mA/HART 24V DC 2-wire /4-wire system; 4~20mA/HART 220V AC 4-wire system; RS485/Modbus
• Frequency : 80GHz
• Range : 10m/20m/35m/85m/120m
• Protection Class : IP68
• Bluetooth Function : Yes/no
• Supply Type : Manufacturer
• Accuracy : ±1mm
• Process Temperature : -40~315°C
• Explosion-proof Grade : Exia IIC T6 Ga; Exd IIC T6 Gb

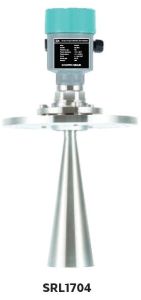

SRL1704 26GHz Radar Level Transmitter

• MOQ : 10 Piece
• Signal output : 4~20mA/HART 24V DC 2-wire /4-wire system; 4~20mA/HART 220V AC 4-wire system; RS485/Modbus
• Process Connection : Thread/ universal flange
• Explosion-proof Grade : Exia IIC T6 Ga; Exd IIC T6 Gb
• Range : 70m
• Process Pressure : -0.1~0.3Mpa
• Frequency : 26GHz
• Process Temperature : -60~250°C
• Accuracy : ±15mm
• Supply Type : Manufacturer

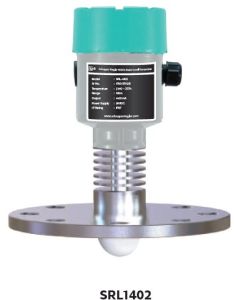

80GHz SRL1402 Acid Resistant Radar Level Transmitter

• MOQ : 10 Piece
• Process Connection : Composite Flange
• Accuracy : ±1mm
• Application : Measurement of liquid level various liquids (such as hydrochloric acid, nitric acid, sulfuric acid, lye, etc.) storage tanks in chemical industry, smelting, food processing and other industries.
• Process Pressure : -0.1~4.0Mpa
• Bluetooth Function : Yes/no
• Explosion-proof Grade : Exia IIC T6 Ga; Exd IIC T6 Gb
• Frequency : 80GHz
• Supply Type : Manufacturer
• Range : 10m/20m/35m

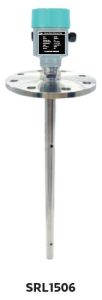

SRL1506 Flanged Coaxial Radar Level Transmitter

• Protection Class : IP68
• Application : Liquid Level Measurement of Liquid with Low Dielectric Constant or Surface Fluctuation and Complex Structure in the Tank
• Explosion-proof Grade : Exia IIC T6 Ga; Exd IIC T6 Gb
• Process Connection : Thread/ Flange
• Supply Type : Manufacturer
• Process Temperature : -40~250°C
• Frequency : 100MHz~1.8GHz
• Range : 6m
• Signal output : 4~20mA/HART 24V DC 2-wire /4-wire system; 4~20mA/HART 220V AC 4-wire system; RS485/Modbus

SRL1501 Flexible Probe Radar Level Transmitter

• MOQ : 10 Piece
• Supply Type : Manufacturer
• Process Pressure : -0.1~4.0Mpa
• Application : Level height measurement of liquid storage tanks and solid powder silos.
• Frequency : 100MHz~1.8GHz
• Process Temperature : -40~250°C
• Accuracy : ±3mm
• Explosion-proof Grade : Exia IIC T6 Ga; Exd IIC T6 Gb
• Signal output : 4~20mA/HART 24V DC 2-wire /4-wire system; 4~20mA/HART 220V AC 4-wire system; RS485/Modbus
• Process Connection : Thread/Flange

80GHz SRL1405 Compact Threaded Radar Level Transmitter

• MOQ : 10 Piece
• Protection Class : IP68
• Process Pressure : -0.1~0.3Mpa
• Process Temperature : -40~80°C
• Process Connection : G11⁄2”A
• Supply Type : Manufacturer
• Range : 8m/15m
• Explosion-proof Grade : Exia IIC T6 Ga
• Signal output : 4~20mA/HART 24V DC 2-wire /4-wire system; 4~20mA/HART 220V AC 4-wire system; RS485/Modbus
• Application : Suitable for general working conditions, such as: liquid level height measurement in the water industry.

SRL1503 Weighted Cable Radar Level Transmitter

• Signal output : 4~20mA/HART 24V DC 2-wire /4-wire system; 4~20mA/HART 220V AC 4-wire system; RS485/Modbus
• Protection Class : IP68
• Process Temperature : -40~250°C
• Frequency : 100MHz~1.8GHz
• Accuracy : ±3mm
• Explosion-proof Grade : Exia IIC T6 Ga; Exd IIC T6 Gb
• Supply Type : Manufacturer
• Application : Level Measurement of Solid Powder Silo, also Can Be Used for Liquid with Low Dielectric Constant.
• Process Pressure : -0.1~4.0Mpa

Radar Level Transmitter

• Output : 4-20 m / Relay, Rs 485 (with Hart)
• Protection : IP-67/ upto 250 bar max
• Measuring Range : 0.5 to 30m for liquids/solids
• Brand : V Automat

Guided Wave Radar Level Transmitter
