Our Products

Adapter

Our offered Product range includes BNC(M) to SMA(M) RF Adapter and BNC (Female-Male-Female) T-Shaped Adapter.

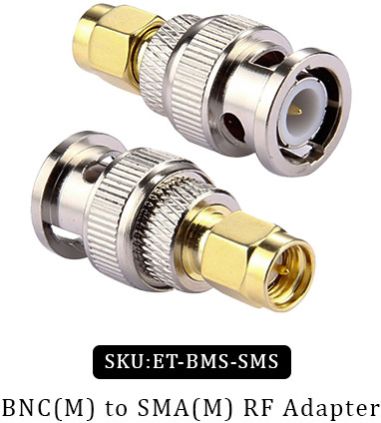

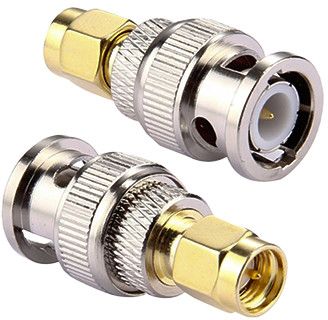

Bnc(M) To Sma(m) RF Adapter

Min. Order (MOQ) 30 Piece
Certification CE Certified, ISO 9001:2008
Connector1- Material Brass
CONNECTOR2 SMA Male
Product Adapter
Impedance 50Ω
CONNECTOR1 BNC Male
Connector1- Polarity Standard
Connector1- Plating Nickel
Connector2- Polarity Standard
Connector2- Material Brass
Connector2- Plating Gold

The BNC(M) to SMA(M) RF Adapter is a versatile radio frequency (RF) adapter that allows you to connect devices with BNC Male connectors to devices with SMA Male connectors. This gender-changing adapter is commonly used in RF communication systems, test equipment, and other applications where BNC and SMA connectors are used in different parts of the signal path.

Key Features:

BNC Male to SMA Male: The adapter features a BNC Male connector on one end and an SMA Male connector on the other, making it ideal for connecting cables or devices that have different connector types.
Durable Construction: Typically made from brass or stainless steel, the adapter is built to last and ensures secure connections with excellent electrical conductivity and minimal signal loss.
Wide Frequency Range: Suitable for use in RF systems that operate across a broad frequency spectrum. Typically, SMA connectors are used for higher frequency applications (up to 18 GHz), while BNC connectors are common in lower frequency ranges (up to 4 GHz). This adapter allows seamless connectivity across these different frequency ranges.
Compact Design: Small and lightweight, this adapter is easy to integrate into a wide range of applications, from simple setups to more complex systems like network analyzers, test equipment, and communication devices.
Corrosion-Resistant: Many BNC to SMA adapters are finished with nickel plating or other corrosion-resistant coatings to ensure reliable performance in diverse environments.

Applications:

Test and Measurement Equipment: Commonly used to connect BNC-terminated test equipment with SMA-terminated devices, such as oscilloscopes, signal generators, and analyzers.
RF Communication Systems: Ideal for radio-frequency systems where different equipment uses BNC and SMA connectors, such as in antenna systems, routers, modems, and signal transmission systems.
Antenna Connections: Used in scenarios where an antenna with a BNC connector needs to be connected to a device with an SMA male port, such as connecting an antenna to a wireless router or cellular modem.
Amateur Radio: Often used in ham radio applications, where both BNC and SMA connectors are used in equipment like transmitters, receivers, and antennas.
CCTV Systems: Useful in closed-circuit television (CCTV) installations, where BNC connectors are common for video connections, and SMA connectors may be needed for wireless communication or other RF devices.

Additional Information:

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Packaging Details : According to Weight

Delivery Time : 5 Days

View Complete Details

Ask Latest Price & Details

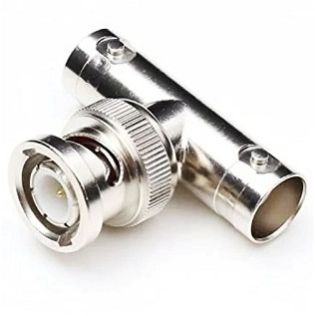

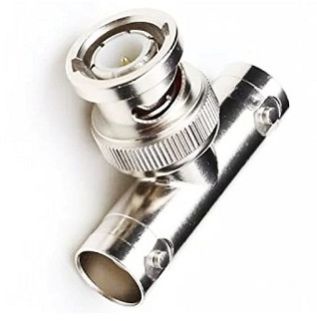

Bnc (female-male-female) T-shaped Adapter

Min. Order (MOQ) 30 Piece
Number Of Flower BNC Adapter
Product Adapter
Gender Female-Male-Female
Impedance 50Ω
Orientation T shaped
Material & Plating Brass, Nickel
Polarity Standard
Mating Type Bayonet

A BNC (Female-Male-Female) T-Shaped Adapter is a type of coaxial connector used to split or combine signals in RF (radio frequency) applications. Here's a detailed description of its components and functionality:

Key Features:

BNC (Bayonet Neill-Concelman) Connectors:
- BNC is a widely used type of coaxial connector, primarily in radio frequency (RF) applications. It is known for its bayonet-style locking mechanism, which ensures a secure connection.
- Female connectors have a receptacle (socket) for the central pin of a male connector.
- Male connectors have a central pin that fits into the socket of a female connector.
T-Shaped Adapter:
- The adapter has a "T" configuration, with three ports: one Male and two Female.
- Male port: This is the central port of the T, typically used to connect to a device like a signal source (e.g., a signal generator, oscilloscope, or antenna).
- Female ports: These are the two side ports of the T, often used to connect to cables, devices, or terminators.
Functionality:
- Signal Splitting: This adapter allows a single RF signal to be distributed to two different devices (e.g., splitting a signal from a signal generator to two different devices or measurements).
- Signal Combining: Conversely, it can also be used for combining signals from two devices into a single path, though this application is less common than splitting.
- Versatile Use: It is particularly useful in test and measurement environments where multiple devices need to receive or share the same RF signal.

Applications:

Signal Distribution: Ideal for distributing RF signals from a single source to two different destinations (such as multiple oscilloscopes or analyzers).
Antenna Systems: Often used in antenna applications where one signal needs to be sent to two antennas or receivers.
Networking and Communication: Can be used in communication systems to split or combine RF signals.
Testing and Measurement: Used in laboratories or during equipment testing, where multiple devices need to receive the same signal without creating additional signal loss.

Summary:

The BNC (Female-Male-Female) T-Shaped Adapter is a handy device for splitting or combining RF signals in a variety of professional and testing environments. It features three portsone male and two femaleallowing for secure connections and signal management in a compact, easy-to-use T-shape configuration.

Additional Information:

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Delivery Time : 5 Days

View Complete Details

Ask Latest Price & Details
