BNC Connector

We are leaders in the market for providing best range of BNC (M) St. Connector for RG213 Cable and BNC (M) St. Connector for RG59 Cable

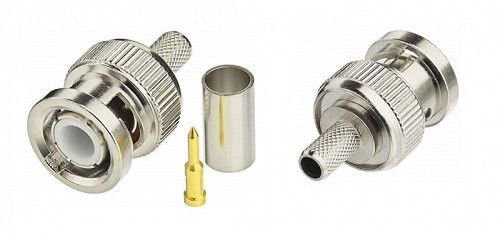

BNC (M) St. Connector For RG213 Cable

Number Of Flower BNC Connector
Certification CE Certified, ISI Certified, ISO 9001:2008 Certified
Application Connecting Coaxial Cable
Condition New
Material Brass, Nickel
Brand Name ETEILY
Gender Male
Product Connector
Frequency Range DC~4GHz
Impedance 50Ω
Orientation Straight
Polarity Standard
Mating Type Bayonet

The BNC (Male) Straight Connector is a robust and reliable connector designed for use with RG213 coaxial cable. BNC connectors are widely used in various RF applications due to their secure, push-and-lock coupling mechanism, which ensures a stable connection. This straight connector configuration allows for direct, axial mounting, making it suitable for applications requiring straightforward cable connectivity.

Key Features:

Connector Type: BNC (Male) - The Bayonet Neill-Concelman (BNC) connector features a bayonet-style locking mechanism that provides a secure and quick connection, reducing the risk of accidental disconnection.
Straight Configuration: The straight (or axial) design ensures that the connector is aligned directly with the cable, providing a simple and straightforward connection without bending or angling.
Compatibility: Designed specifically for RG213 coaxial cable, which is known for its high power handling and low loss characteristics. The connector ensures a proper and reliable connection to RG213 cables.
Durable Construction: Typically made from high-quality materials such as brass or stainless steel with a plating of gold or nickel, offering durability, excellent conductivity, and resistance to corrosion.

Specifications:

Connector Type: BNC (Male)
Cable Type: Compatible with RG213 coaxial cable
Configuration: Straight (axial)
Frequency Range: Suitable for high-frequency applications, generally up to several GHz
Impedance: 50 ohms
Material: Brass or stainless steel with gold or nickel plating
Temperature Range: Typically -55C to +165C (check the specific datasheet for the exact range)
VSWR: Typically 1.3:1 across the operating frequency range

Benefits:

Reliable Connection: Provides a stable and secure connection with minimal signal loss, ensuring effective transmission of high-frequency signals.
Ease of Use: The BNCs bayonet coupling mechanism allows for quick and easy connection and disconnection, which is useful in both installation and maintenance.
Durability: Constructed from robust materials to handle mechanical stress and environmental conditions, providing long-lasting performance.

Additional Information:

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Delivery Time : 5 Days

View Complete Details

Ask Latest Price & Details

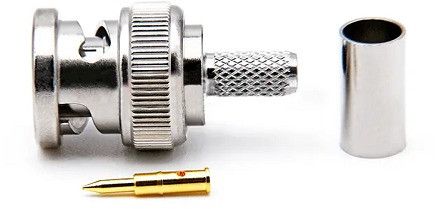

BNC (M) St. Connector For RG59 Cable

₹ 100 - ₹ 150 / Piece Get Latest Price

Brand Name ETEILY
Feature Durable, Corrosion Resistant, Sturdy, High Strength
Number Of Flower N Connectors, BNC Connector
Product Connector
Gender Male
Impedance 50Ω
Orientation Straight
Material & Plating Brass and Nickel
Termination Method Crimp
Mating Type Bayonet

BNC Male Straight Connector for RG59 Cable

1. Type:

BNC Male Straight Connector: This is a type of coaxial connector that features a pin (center conductor) on the male end, designed to fit into a corresponding BNC female connector.

2. Cable Compatibility:

RG59 Coaxial Cable: Specifically designed to fit RG59 coaxial cables, which are often used in video applications, security systems, and other low-frequency signal transmission.

3. Design and Construction:

Pin: The center conductor pin of the male connector makes contact with the center conductor of the RG59 cable.
Body: Usually made from high-quality metal such as brass or stainless steel for durability and corrosion resistance. The body provides a solid and secure connection.
Insulation: Includes internal insulation to ensure proper alignment and prevent signal loss or interference.
Shielding: The connector is shielded to minimize electromagnetic interference (EMI) and ensure clean signal transmission.

4. Mounting Type:

Bayonet Lock Mechanism: Features a bayonet mount that secures the connector with a simple twist-and-lock action. This ensures a stable connection and helps prevent accidental disconnection.

5. Frequency Range:

Generally supports frequencies up to several GHz, making it suitable for a wide range of RF and video applications.

6. Applications:

Video: Commonly used in CCTV systems, analog video equipment, and other video signal applications.
Communication: Suitable for RF communication systems and other low-frequency signal transmission needs.
Networking: Often used in older network setups that utilize coaxial cables.

7. Installation:

Crimp: Typically attached to the RG59 cable using a crimping tool. This involves crimping the metal parts of the connector onto the cable's shield and center conductor.
Solder: Some connectors are designed for soldering, where the center conductor of the cable is soldered to the connector pin.

8. Features:

Durability: Constructed to withstand physical stress and provide long-lasting performance.
Signal Integrity: Designed to ensure minimal signal loss and maintain high signal quality over its operating frequency range.

Additional Information:

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Delivery Time : 5 Days

View Complete Details

Ask Latest Price & Details
