Our Products

PCB Connector

Our offered Product range includes UFL Male PCB Mount SMT Connector, SMA Female Bulkhead Straight PCB Mount Connector 18mm, TNC (F) R/A PCB Mount Connector and SMB (F) St. PCB Mount Connector.

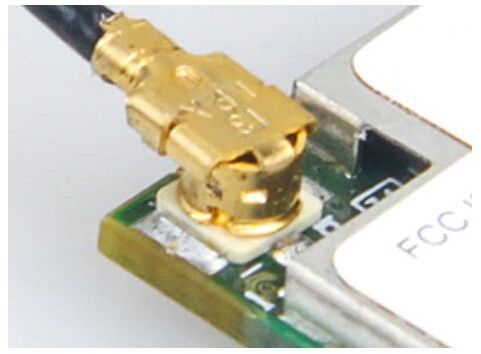

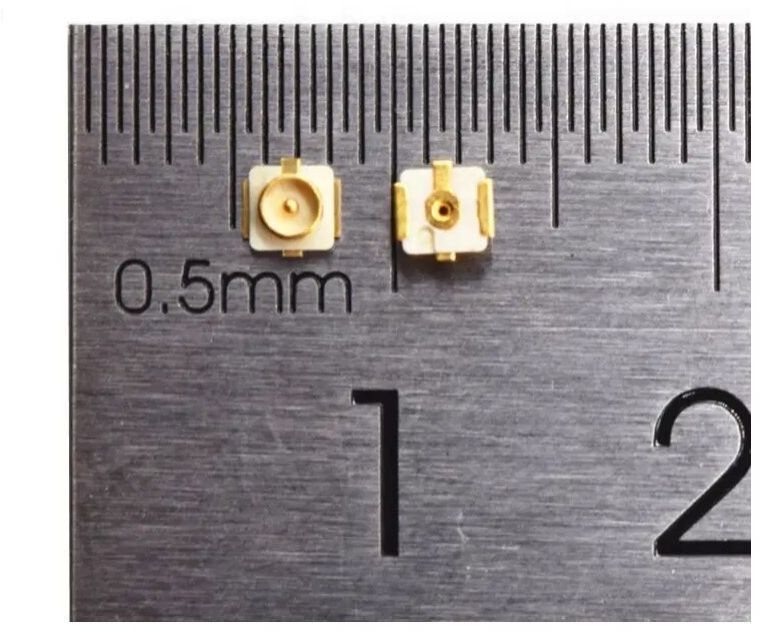

Ufl Male PCB Mount Smt Connector

₹ 20 - ₹ 35 / Piece Get Latest Price

Min. Order (MOQ) 100 Piece
Country of Origin India
Total Carbohydrate 1year
Number Of Flower Pcb Connector
Feature Easy To Connect, Electrical Porcelain, Proper Working, Shocked Proof, Superior Finish, Water Proof
Gender Male
Certification CE Certified, ISI Certified
Application Electronic Components Connecting
Connection Type Male
Condition New
Brand Name ETEILY
Series U.FL
Frequency 6GHz
Mount Method PCB Mount
Polarity Standard
Attachment Method Field Replaceable
Plating Gold Plated

A UFL Male PCB Mount SMT Connector is a specialized component used to create compact and reliable RF connections on a printed circuit board (PCB). Heres a detailed breakdown of what you need to know about this type of connector:

Key Features and Specifications

Connector Type:
- UFL (Ultra Miniature Flexible): This is a very small coaxial connector commonly used in RF applications. The "Male" refers to the pin that protrudes from the connector, which fits into a corresponding female connector.
Mounting Type:
- PCB Mount: Designed to be soldered directly onto a PCB.
- SMT (Surface-Mount Technology): This type of mounting allows the connector to be soldered on the surface of the PCB, which is typically used for automated assembly processes.
Connector Design:
- Pin Configuration: The male pin will be soldered onto the PCB and typically fits into a female UFL connector.
- Body Style: UFL connectors can come in various body styles, such as straight or right-angle, depending on the design requirements.
Mechanical and Electrical Specifications:
- Impedance: Typically 50 ohms, suitable for RF applications.
- Frequency Range: Ensure the connector supports the frequency range required for your application.
- Connector Size: UFL connectors are very compact, with a small footprint ideal for space-constrained designs.
Material and Finish:
- Contact Material: Usually gold-plated brass or other high-conductivity materials.
- Insulator Material: Often made from high-dielectric materials like PTFE (Teflon) to support high-frequency signals.
- Housing Material: Typically metal or plastic, depending on the design requirements.

How to Choose and Order

Determine Your Requirements:
- Pin Count and Pitch: Ensure the connector's pin count and pitch match your PCB design.
- Orientation: Decide between straight or right-angle connectors based on your layout and space constraints.
- Frequency and Performance: Verify the connectors specifications to ensure it meets the performance requirements of your RF application.
Find a Supplier:
- Manufacturers and Distributors: Look for reliable suppliers who offer UFL connectors. Examples include companies like Amphenol, Molex, Hirose, and various electronic component distributors.
Order and Testing:
- Request Samples: Before placing a bulk order, you may want to request samples to ensure compatibility and performance.
- Quantity and Pricing: Provide your specifications to get a quote based on the quantity you need.
- PCB Design: Ensure that your PCB design accommodates the dimensions and mounting requirements of the UFL connector.

Application Tips

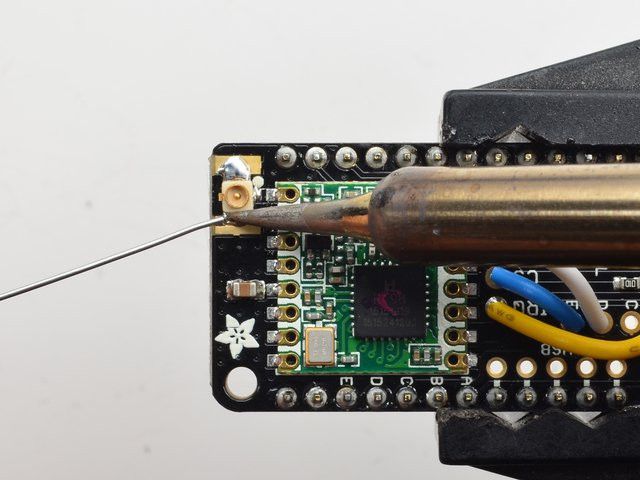

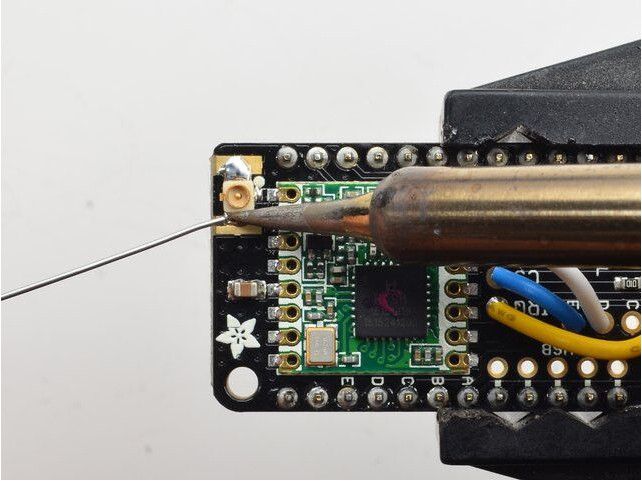

Assembly: Proper soldering techniques are crucial to avoid damage to the connector or PCB. Ensure that your SMT process is compatible with the connector specifications.
Mechanical Stress: Be mindful of mechanical stress on the connectors during and after assembly, as excessive stress can lead to connector damage or signal degradation.

If you need more detailed specifications or have any particular requirements for your UFL Male PCB Mount SMT Connector, let me know!

Additional Information:

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Delivery Time : 5 Days

View Complete Details

Ask Latest Price & Details

Sma Female Bulkhead Straight PCB Mount Connector 18mm

₹ 95 - ₹ 200 / Piece Get Latest Price

Min. Order (MOQ) 100 Piece
Brand Name ETEILY
Material Brass
Packaging Type Golden
Condition New
Connection Type Female
Application Electrical Adaptor
Certification CE Certified, ISI Certified
Gender Female Bulkhead
Feature Easy To Connect, Four Times Stronger, Proper Working, Superior Finish, Water Proof
Number Of Flower Sma Connector
Total Carbohydrate 1year
Country of Origin India
Product Connector
Frequency DC~6GHz
Mounting PCB Mount
Dimension Threading Length: 18mm
Orientation Straight
Material & Plating Brass, Gold

The SMA (SubMiniature version A) female bulkhead straight PCB mount connector with an 18mm dimension is typically used for RF (radio frequency) applications. Here's a quick rundown of what you might need to know:

Connector Type: SMA (SubMiniature version A) is a standard for coaxial connectors. The female connector has a threaded coupling mechanism for secure connections.
Bulkhead: This indicates that the connector is designed to be mounted through a panel or bulkhead, with the connector part extending through the panel.
Straight PCB Mount: This means that the connector is intended to be mounted directly onto a printed circuit board (PCB) with a straight orientation.
18mm Dimension: This could refer to the overall length of the connector, the diameter of the mounting hole, or a specific dimension relevant to the connectors design. Its essential to confirm this dimension for compatibility with your PCB or panel.

When selecting this connector, make sure to check the following specifications to ensure compatibility with your application:

Frequency Range: Make sure it supports the frequency range of your RF application.
Impedance: Typically, SMA connectors are 50 ohms, but confirm this to match your systems requirements.
Material and Finish: Ensure that the connector materials and plating are suitable for your applications environmental and mechanical requirements.

You can find these connectors from various electronic component suppliers like Digi-Key, Mouser, or RS Components. If you have specific requirements or need more detailed information, the datasheet for the connector would provide all the technical details.

Additional Information:

Payment Terms : L/C, D/A, D/P, T/T

Delivery Time : 5 Days

View Complete Details

Ask Latest Price & Details

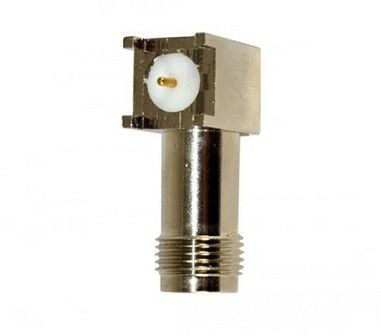

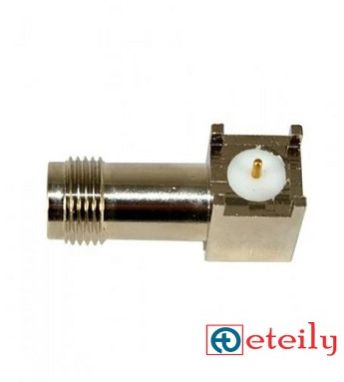

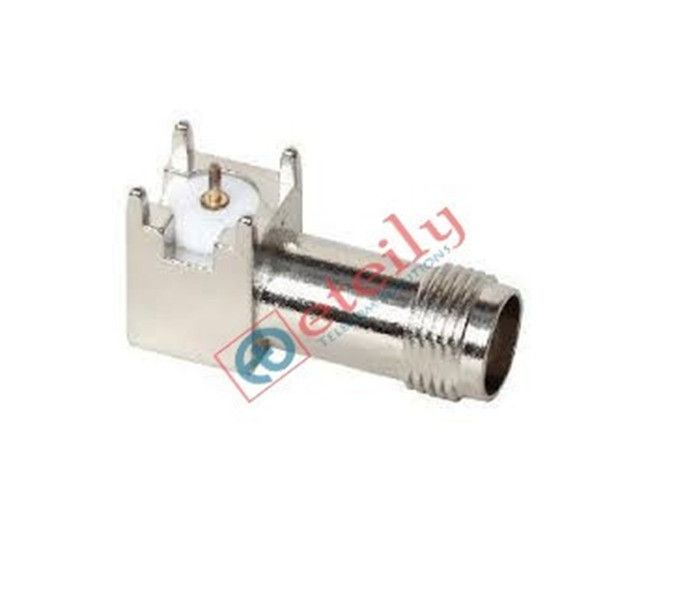

Tnc (F) R/a PCB Mount Connector

Min. Order (MOQ) 25 Piece(s)
Number Of Flower TNC Connector
Certification CE Certified, ISI Certified
Connection Type Female
Condition New
Brand Name ETEILY
Product Connector
Frequency Range DC~6GHz
Impedance 50Ω
Orientation Right Angled
Material & Plating Brass, Nickel
Polarity Standard
Termination Method PCB
Mating Type Threaded

The TNC (F) Right Angle PCB Mount Connector is engineered for reliable RF connections in compact electronic assemblies. Its right-angle design allows for efficient space management on printed circuit boards (PCBs), making it ideal for applications where vertical space is limited.

Key Features:

Compatibility: Designed for standard RF applications, this connector provides excellent performance with various coaxial cables, particularly 50-ohm types.
Right Angle Configuration: The right-angle design facilitates easier routing of cables, minimizing stress on the connector and cable during installation.
PCB Mount Design: Specifically crafted for mounting directly onto PCBs, providing secure connections and stability in electronic devices.
Durable Materials: Constructed from high-quality materials to ensure longevity and reliable performance in diverse environments.
Impedance: Typically features a 50-ohm impedance, making it suitable for a wide range of RF applications, including communication and wireless systems.

Applications:

Wireless communication devices
Antenna systems
Test and measurement equipment
Networking hardware

This TNC (F) Right Angle PCB Mount Connector is an essential choice for designers seeking efficient, high-quality RF connections in space-constrained applications.

Additional Information:

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Delivery Time : 5 Days

View Complete Details

Ask Latest Price & Details

Smb (F) ST. PCB Mount Connector

Min. Order (MOQ) 100 Piece
Brand Name ETEILY
Condition New
Connection Type Female
Certification CE Certified, ISI Certified
Number Of Flower SMB Connector
Product Connector
Impedance 50Ω
Mounting PCB Mount
Orientation Straight
Material & Plating Brass, Gold
Mating Type Snap-on

An SMB (F) St. PCB Mount Connector refers to a specific type of SubMiniature version B (SMB) connector designed for printed circuit board (PCB) mounting. Heres a breakdown of its features:

rn
SMB Connector Type:
rn
- SMB connectors are a type of RF (radio frequency) connector. They are smaller than SMA connectors and are used for high-frequency applications.
- The SMB connector typically provides a snap-on coupling mechanism, meaning it locks in place when the male and female connectors are pushed together.
rn
rn
(F) Female:
rn
- The \"(F)\" designation refers to the female version of the connector. This means it has a socket or receptacle that is designed to mate with a male SMB connector.
rn
rn
St. (Straight):
rn
- \"St.\" stands for straight, which means that the connector has a straight orientation, with the pins or sockets facing directly outward from the PCB for easy insertion and connection.
rn
rn
PCB Mount:
rn
- The connector is designed for mounting directly onto a printed circuit board (PCB). This allows for easy integration into electronic devices, providing a reliable method of transmitting signals through the board.
rn

Key Characteristics:

Frequency Range: SMB connectors are typically used in high-frequency applications, often supporting frequencies up to 4 GHz or higher, depending on the specific version.
Size: SMB connectors are compact, which makes them suitable for applications where space is limited.
Applications: Used in various applications such as communication equipment, test instruments, automotive, and industrial devices where RF signals are transmitted.

In summary, an SMB (F) St. PCB Mount Connector is a female SMB connector with a straight design that is specifically meant for mounting onto a printed circuit board for RF signal transmission.

Additional Information:

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Delivery Time : 5 Days

View Complete Details

Ask Latest Price & Details
