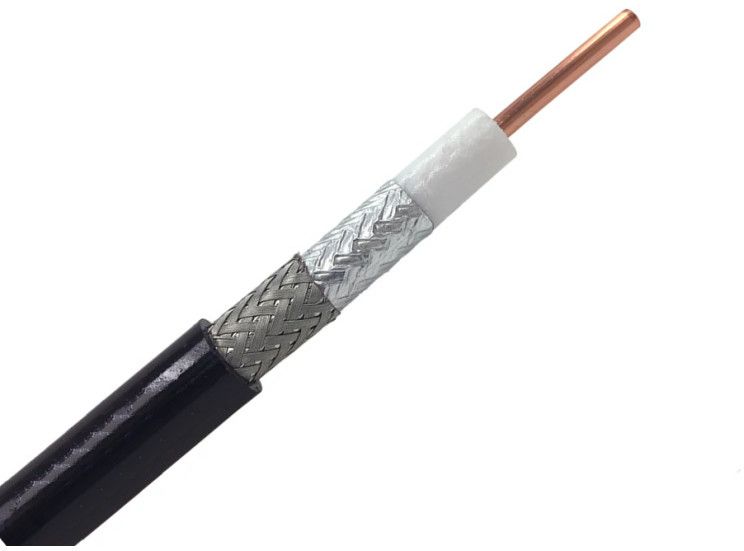

HLF 200 is a coaxial cable designed for high-frequency applications, particularly in the microwave range. It offers a balance between performance and flexibility, making it a popular choice for various RF systems.

• High Frequency Performance: HLF 200 is specifically designed to handle high-frequency signals, making it suitable for applications such as microwave links, radar systems, and satellite communications.
• Low Loss: The cable's low-loss characteristics ensure efficient transmission of RF signals over long distances.
• Flexibility: While not as flexible as some other coaxial cables, HLF 200 offers a good balance between flexibility and rigidity, making it easier to route and install compared to fully rigid cables.
• Durability: The cable is constructed to withstand mechanical stress and environmental factors, ensuring long-term reliability.
• Wide Range of Applications: HLF 200 can be used in various RF systems, including microwave links, radar, satellite communications, and test equipment.

• Nominal Impedance: 50 ohms
• Frequency Range: Typically from 1 GHz to 18 GHz
• Attenuation: Low loss characteristics
• Outer Conductor: Braided copper or aluminum
• Dielectric: Low-loss foam or solid dielectric

• Frequency Range: Ensure that the cable's frequency range meets the specific requirements of your application.
• Power Handling: If you need to transmit high power levels, consider the cable's power handling capacity.
• Installation Environment: Take into account the installation environment, including temperature, humidity, and mechanical stresses.
• Cable Length: Select a cable length that is appropriate for your application and minimizes losses.

.

Product: RG174 Coaxial Cable
Color: Black
Type: Mini RG-174 Bare Wire

Overview: RG174 is a lightweight, flexible coaxial cable designed for a wide range of applications, especially where space and weight are critical. This cable features a bare wire construction, making it suitable for soldering and custom installations.

Specifications:

• Impedance: 50 Ohms
• Outer Diameter: Approximately 3.2 mm
• Dielectric: Foam or solid polyethylene for reduced signal loss
• Shielding: Typically includes a braided copper shield for effective signal protection against interference
• Conductor: Stranded or solid copper, facilitating better flexibility and conductivity

Applications:

• Antenna connections
• RF signal transmission in portable devices
• Custom installations where flexibility is required
• Use in test and measurement setups

Features:

• Lightweight and Flexible: Ideal for compact spaces and mobile applications.
• Wide Frequency Range: Supports high-frequency signals, making it versatile for various RF applications.
• Easy to Work With: Bare wire ends allow for straightforward soldering and connection to components.

This RG174 coaxial cable is an excellent choice for applications demanding reliability and performance in tight spaces.

To connect MHF4(F) connectors using a 10 cm length of 1.13 mm coaxial cable, you'll want to consider the following description:

Connector Type: MHF4(F)
Cable Type: 1.13 mm Coaxial Cable
Cable Length: 10 cm

Overview: This configuration involves using a 10 cm coaxial cable with a diameter of 1.13 mm, equipped with MHF4(F) connectors on both ends. The MHF4 connectors are commonly used in RF applications, particularly in miniaturized environments, such as in mobile devices and other compact electronics.

Specifications:

• Impedance: Typically 50 Ohms
• Frequency Range: Suitable for various RF applications, generally up to 6 GHz
• VSWR: Low standing wave ratio for optimal signal transmission
• Material: Usually consists of a central conductor, insulating dielectric, and outer shielding (often a copper braid or foil)
• Connector Configuration: MHF4(F) features a snap-on design for easy connection and disconnection, ensuring a secure fit without the need for additional tools.

Applications:

• RF signal transmission in mobile devices
• Connection between antennas and RF modules
• Use in test and measurement equipment

This setup is ideal for short-distance connections requiring minimal signal loss while maintaining compactness.
