Product: SMA (M) to UFL Cable Assembly
Cable Type: RG178
Length: 15 cm

Overview: This cable assembly features a male SMA connector on one end and a UFL connector on the other, connected by 15 cm of RG178 coaxial cable. This configuration is ideal for RF applications where a compact, reliable connection is required.

Specifications:

rn
• Connector Type:rn
  rn
  • SMA (M): Standard Male SMA connector, providing a robust connection with a screw-on design.
  rn
  • UFL: Ultra Fine Line connector, known for its miniaturized design, ideal for tight spaces.
  rn
  rn
rn
• Impedance: 50 Ohms
rn
• Cable Type: RG178, which is a flexible coaxial cable suitable for high-frequency applications.
rn
• Outer Diameter: Approximately 2.5 mm
rn
• Shielding: Typically includes a copper braid for effective protection against interference.
rn

Applications:

rn
• RF signal transmission in wireless communication systems
rn
• Connecting antennas to RF modules in compact devices
rn
• Test equipment and measurement setups requiring miniaturized connections
rn

Features:

rn
• Compact Design: The combination of SMA and UFL connectors makes this assembly perfect for space-constrained environments.
rn
• Low Signal Loss: RG178 cable ensures minimal attenuation, maintaining signal integrity over the 15 cm length.
rn
• Versatile Use: Suitable for various RF applications, including Wi-Fi, GPS, and other wireless technologies.
rn

This SMA (M) to UFL cable assembly is a reliable choice for applications requiring high performance and compactness.

rn
• rn

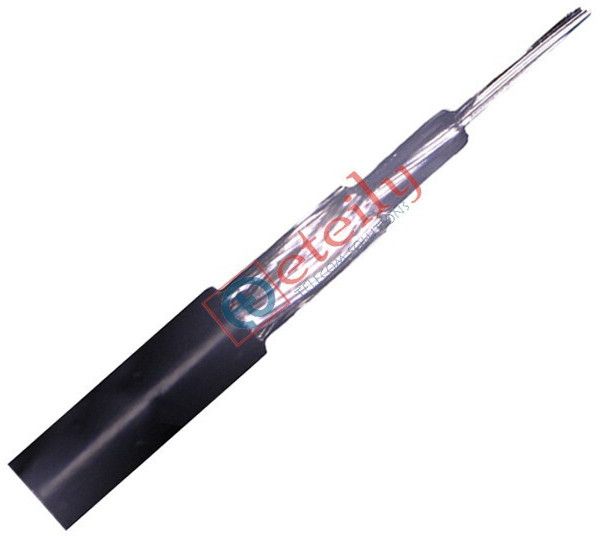

  RG 0.81mm Cable (RG-402): A Versatile Coaxial Cable

  rn

  RG 0.81mm cable, also known as RG-402, is a popular coaxial cable characterized by its small diameter and flexible nature. It is widely used in various applications due to its balance between performance and ease of installation.

  rn

  Key Specifications:

  rn
  rn
  • Nominal Impedance: 50 ohms
  rn
  • Inner Conductor Diameter: 0.81 mm (approximately 0.032 inches)
  rn
  • Outer Conductor Diameter: 2.54 mm (approximately 0.1 inches)
  rn
  • Dielectric: Polyethylene (PE)
  rn
  • Jacket: Polyvinyl Chloride (PVC)
  rn
  • Operating Frequency: Typically ranges from 100 MHz to 1 GHz
  rn
  • Attenuation: Approximately 10 dB/100 meters at 1 GHz
  rn
  rn

  Applications:

  rn
  rn
  • Radio Frequency (RF) Transmission: Used for transmitting RF signals in various applications, including:rn
    rn
    • Amateur radio
    rn
    • CB radios
    rn
    • Short-range wireless communications
    rn
    • Cable television systems
    rn
    • Antenna feedlines
    rn
    rn
  rn
  • Test and Measurement Equipment: Employed in laboratory and field testing setups for RF and microwave signals.
  rn
  • General-Purpose RF Interconnects: Suitable for connecting RF components and devices in various electronic systems.
  rn
  rn

  Advantages:

  rn
  rn
  • Small Size and Flexibility: Easy to route and install in tight spaces.
  rn
  • Low Loss: Provides reasonable signal transmission with minimal attenuation.
  rn
  • Wide Operating Frequency Range: Covers a broad spectrum of RF frequencies.
  rn
  • Cost-Effective: Generally more affordable compared to larger diameter cables.
  rn
  rn

  Considerations:

  rn
  rn
  • Limited Bandwidth: May not be suitable for high-frequency applications requiring extremely low loss.
  rn
  • Susceptibility to Interference: Can be prone to interference from external sources, especially in noisy environments.
  rn
  • Mechanical Strength: While reasonably durable, it may require additional protection in harsh environments.
  rn
  rn

  Additional Information:

  rn
  rn
  • RG-402A: A variation of RG-0.81mm cable with a Teflon dielectric, offering improved performance at higher frequencies and temperatures.
  rn
  • RG-403: Another similar cable with a slightly larger diameter and improved shielding.
  rn
  rn

  Image:

  rn
  rn
  rn

  rn

  rn

  RG 0.81mm cable

  rn

  rn
  rn
  rn
rn

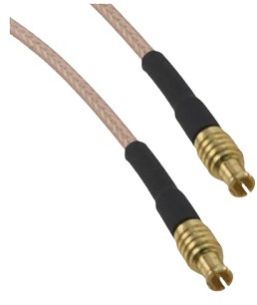

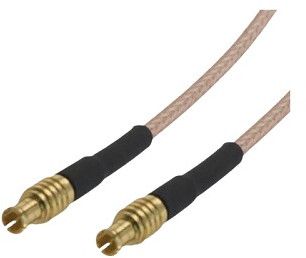

Product: MCX (M) to MCX (M) Cable Assembly
Cable Type: RG179
Length: 3 meters

Overview: This cable assembly features male MCX connectors on both ends, connected by 3 meters of RG179 coaxial cable. The MCX connectors are compact and provide a secure connection, making this assembly suitable for various RF applications.

Specifications:

rn
• Connector Type:rn
  rn
  • MCX (M): Male MCX connectors at both ends, designed for a snap-on fit for easy connection and disconnection.
  rn
  rn
rn
• Impedance: 50 Ohms
rn
• Cable Type: RG179, known for its low-loss characteristics, making it suitable for high-frequency applications.
rn
• Outer Diameter: Approximately 3.5 mm
rn
• Shielding: Includes a copper braid and foil for effective protection against electromagnetic interference.
rn

Applications:

rn
• Wireless communication systems
rn
• RF signal distribution in antennas
rn
• Test and measurement setups requiring reliable connections
rn
• Connecting RF modules in compact devices
rn

Features:

rn
• Low Signal Loss: RG179 cable minimizes attenuation, ensuring optimal signal transmission over the 3-meter length.
rn
• Compact Design: MCX connectors are ideal for space-constrained applications while maintaining robust performance.
rn
• Durability: Designed for repeated connect/disconnect cycles, making it suitable for both permanent and temporary installations.
rn

This MCX (M) to MCX (M) cable assembly is an excellent choice for applications requiring flexibility, reliability, and performance in RF signal transmission.
