Our Products
We are leaders in the market for providing best range of Capsule Polishing Machine, Tablet Inspection Machine, Oscillating Granulator, Automatic Tablet Coater Machine and Oral Liquid Manufacturing Plant
Compact Capsule Polishing & Dust removing Process Technic
Application & Process :
PRISM polishing machine PCP - 1 Model is used after capsules are filled for cleaning the powder attached on the capsules surface.
Salient Features :
Application & Process :
Tablet Inspection Machine is used for visual Inspection of Tablets, both coated and uncoated type of all sizes, most conveniently and at a very high speed, ensuring strict Quality control at the same time maintaining good checking rate.
The tablet to be inspected are filled in the Hopper and is automatically placed on the Conveyor belt through vibration, while at One end of the belt an operator inspects the 'Front' side of the tablet and at the other End the second operator inspects the 'Reverse' side of the tablet. Further, the Machine consists essentially of an Endless Nylon Conveyor Belt, driven by a variable speed motor and designed to offer for inspection the front and Reverse of a Tablet.
Optional Dust extractor provides collects the dust. Rejection tablet trays are filled to collect rejected and 100% perfect tablets fall into the collection drum.
Salient Features :
Optional Features :
High Speed Uniform Granulation Process
Application & Process :
Oscillating granulator is used for gentlehomogenization, size reduction, grading and sieving of dry, sensitive powders and granules in pharmaceutical, chemical and food industries.
Oscillating Granulator has one rotor with five edges, which oscillate on horizontal axis at about 180 per minutes. There is one half round sieve mounted at the bottom of the rotor. Product is charged from the top through in feed hopper and material falls on the rotor lades. The particles are broken by a set of oscillating bars arranged in cylindrical form over a screen of suitable mesh. Due to the sharp edges on rotor, the downsizing of particle takes place and through sieve material gets pushed outward from the bottom opening.
Salient Features :
Optional Features :
Safety Features :
| MODEL | POG-250 | POG-500 |
| Output | Up to 250 Kg / Hour | Up to 500 Kg / Hour |
| Oscillating Speed | 180 per minute | 180 per minute |
| Motor | 2 hp | 2 hp X 2 Nos. |
| Power | 1.5 Kw/3 ph/415 V/50 Hz | 3 Kw/3 ph/415 V/50 Hz |

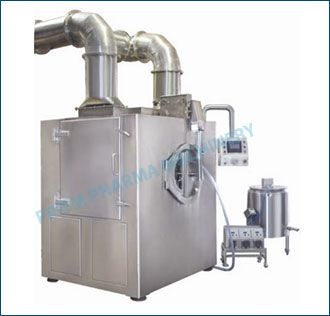

High Efficiency and Intelligent Automatic Tablet Film & Sugar Coating Technic
Application & Process :
The Prism's advanced high efficiencyautomated tablet coating machineis mainly used in pharmaceutical and food industries. Featuring mechatronis and confirming to the requirement of cGMP. It is a high efficiency, energy saving, safe and clean equipment for film and sugar coating of tablets, Pills and candies with organic film, aqueous coating andsugar filmetc.
Automatic Tablet Coater is designed for the application of:
Working Principle :
The tablet to be coated make continuous complicated orbital motion the closed rotating Drum under the action of a streamline of Baffles. During the motion coating medium automatically sprays according to the technological process and rational technological parameters, at the same time hot filtered air supplied under a negative pressure. The hot air penetrates through the tablets core layers and is discharged from the bottom of the layers, so that the coating medium sprayed on the surface of the tablet cores will dry rapidly and evenly, thus forming a solid and smooth surface film on tablet. The whole process is finished under the automatic by PLC Controls with touch screen Interface.
Salient Features :
Optional Features :
Technical Specification :
| Model | PAC- 30 | PAC- 36 | PAC- 42 | PAC- 48 | PAC- 60 | PAC- 66 |
| Pan Diameter - Inch(mm) | 30" -750 | 36" -920 | 42" -1070 | 48" - 1220 | 60" - 1525 | 66"-1675 |
| Approx Working Capacity | 30 | 75 | 100 | 150 | 350 | 500 |
| Pan Mouth Diameter | ||||||
| Pan Speed RPM | ||||||
| Main Drive Motor HP | Please contact us for more details. | |||||
| Inlet Air Blower Motor HP | ||||||
| Inlet air cfm | ||||||
| Steam Consume. kg/hr @ 4 bar | ||||||
| Comp. Air cfm @ 6 bar | ||||||
Powder Dry Granulation Process Technic
Application & Process :
The Roll Compactor machine is used for increased bulk density, making granules, dust free processing and reducing particle size of pharmaceutical ingredients in pharmaceutical industry, in food as well as chemical industry for densification and granulation of powder.
The material in form of powder passes through the two counter rotating rolls of roller compactor under very high pressure. As the volume decreases through the region of maximum pressure, the material is formed into a solid compact sheet or flakes of ingredients. These flakes or compact sheet of ingredients are reduced in size to obtain the desired grain size. The machine takes extra care to prevent the generation of fine during this process.
Salient Features :
Optional Features :
Safety Features :
Optional Features :
| MODEL | PRC-300 / 330 |
| Output | 500 kg / Hour. To 2000 kg/Hour. Depending on material characteristics and Roll surface |
| Roll size (in mm) | 300 mm Dia X 330 mm Width |
| Maximum Roll Force | |
| Roll Surface (Selection depends upon material characteristic) | a) Corrugated b) Smooth/Plain c) Knurled |
| Roll speed (Step pulley Drive) | |
| Feed Screw Speed (Variable Speed Drive) | Please contact us for more details. |
| Roll Drive Motor | |
| Feed Screw Drive Motor | |
| Stirrer Drive Motor | |
| Power Pack Motor | |
| Overall Dimension (cm) | |
| Net Weight |
Powder Dry Granulation Process
Application & Process :
TheRoll Compactormachine is used for increased bulk density, making granules, dust free processing and reducing particle size of pharmaceutical ingredients in pharmaceutical industry, in food as well as chemical industry for densification and granulation of powder.
The material in form of powder passes through the two counter rotating rolls ofroller compactorunder very high pressure. As the volume decreases through the region of maximum pressure, the material is formed into a solid compact sheet or flakes of ingredients. These flakes or compact sheet of ingredients are reduced in size to obtain the desired grain size. The machine takes extra care to prevent the generation of fine during this process.
New Design Features :
Optional Features :
Safety Features :
| MODEL | PRC-200 / 50 | PRC-200 / 75 | PRC-200 / 100 | PRC-200 / 150 | PRC-200 / 200 |
| Output - kg / Hour | 20 to 60 | 75 to 100. | 100 to 250 | 100 to 350 | 150 to 500 |
| Maximum Roll Force | 15 ton | 15 ton | 15 ton | 25 ton | 25 ton |
| Roll Diameter in mm | 200 | 200 | 200 | 200 | 200 |
| Roll Width In mm. | 50 | 75 | 100 | 150 | 200 |
| Roll speed (Step pulley Drive) RPM | 5 to 25 | 5 to 25 | 5 to 25 | 5 to 25 | 5 to 25 |
| Feed Screw Speed by VFD -RPM | |||||
| Roll Drive Motor HP/ KW | Please contact us for more details. | ||||
| Feed Screw Drive Motor HP/KW | |||||
