Washing Machine

We are leaders in the market for providing best range of Rotary Bottle Washing Machine, Bin Washing Machine, Linear Bottle Washing Machine and Bin Washing System

Rotary Bottle Washing Machine

Application & Process :

TheRotary Bottle washing Machineis compact and highly efficient machine with elegant look. This multifunctional multi featured machine meets the GMP requirements of washing for glass and plastic bottles. The machine operates on the Rotary principle with "GENEVA" mechanism and requires manual loading and unloading of bottles.

The bottles are loaded on rotating platform and are cleaned in series of operations. Specially designed bottle holders provided to hold bottles with varying neck diameter. The bottles are placed in an inverted position in these cup shaped holders. Spraying showers does the external cleaning of the bottles. Solenoid valves are provided to enable the regulation of wash timings and sequence of various washing media to suit specific requirement.

Salient Features :

designed as per cGMP - Current Good Manufacturing Practices compliance
Machine is made from AISI 304.
Geneva Mechanism.
Five wash with Four inner & one outer.
Sequence of washes to customer's choice.
Stationary nozzles eliminate contamination of water cycles.
Easy to operation and loading and unloading by manual.
Individual solenoid valve for each washing sequence, that eliminates carbon plate and other accessories reduce leakage and maintenance to minimum.
Higher capacity centrifugal pumps to wash bigger bottles (500 & 1000 ml.).
Bottle guide system especially for lightweight bottle.
Separate panel control to avoid any short circuit due to spraying of water.

Optional Features :

AC Frequency drive with variable speed.

Optional Features :

Double side labeling on Flat bottle.
PLC touch screen system.
Online printing device coding or Inkjet unit.
Online inspection of batch no & printing.
Acrylic cabinet.
Servomotor instead of stepper motor

Technical Specification :

Model	PRWM-64	PRWM-96
Output/Hour*	2600 to 6000 Nos.	4300 to 9000 Nos.
No. of Pocket	64	96
Direction of Machine	Clock Wise
Electric Heater	3 Kw.
Tank Capacity	75 Ltrs. S.S. 304 (2 Nos.)
Wash Cycle	4 Inner + 1 Outer
Working Height**	800 to 850 mm adjustable.

View Complete Details

Ask Latest Price & Details

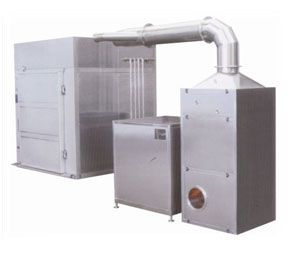

Bin Washing Machine

CIP WIP system is useful for cleaning and washing at place of Vessel, Tank, Bin, Fluid Bed Equipment, High shear Mixer, Blender, Auto Coater and IBC Bin. We manufacture of CIP WIP system with complete closed CIPWIP system for Bin washing. Automatic washing station is consists of closed washing cabinet, washing system with pump, Hot air handling system and PLC controls system with HMI.

View Complete Details

Ask Latest Price & Details

Linear Bottle Washing Machine

Output / Speed 60 BPW
Power Required 3-5 HP, 440 V, 3 Phase, 50Hz.

linear bottle washing machine

application & process :

high speedlinear bottle washing machineis most ideal for round bottles and finds wide application in pharma, food & beverages industries. The automatic loading arrangement facilities loading of bottles on to ss wire mesh conveyor through feed conveyor or bottles are pushed manually from feed table. This saves manpower as bottles are feed into pockets automatically. The automatic unloading mechanism consists of unloading bottle continues on to turn table (optional).

three-cycle rinsing allows flexibilities of various wash cycles such as fresh water, dematerialized water etc. As per the rinsing requirement of bottle. All the pumps are made of ss and all the water contact parts are made of ss 316 on a heavy base of ss structure. In tunnel design is such that separation is maintained between feeding zone and discharge zone of the cleaned containers. All the mechanical drives are separated and isolated from the washing zone. Approved materials only are used for construction, together with a careful choice of components, thereby taking in to consideration all aspects of sanitation and consequence complying with the pharmaceutical g.m.p. Requirements.

salient features :

designed as per cgmp - current good manufacturing practices compliance
machine is made from aisi 304.
all parts coming in contact with washing zones / jet are made from ss 316 materials.
simple structure, stable function, easy operation and low maintenance cost.
very compact, rigid & modular construction meeting cgmp norms.
the machine is suitable for wash of 60 ml to 250 ml round bottles without any change parts.
change parts require for flat bottles & if change of neck size.
washing chamber having various spray zones.
high-pressure spray nozzles ensure perfect wash of bottles.
interchangeable wash sequences.
water re-cycling arrangement is possible as per customer's need.
machine is totally rigid and sturdy for continuous trouble free operation for long working hours.
higher capacity centrifugal pump to wash bigger container.
variable speed drives.

Technical Specification :

Model	PLBW-60	PLBW-120	PLBW-150	PLBW-240	PLBW-300
Output / Speed	60 BPW	120 BPW	180 BPW	240 BPW	300 BPW
Input Specifications	Bottle Size: 60 to 250 ml without any change parts.
Power Required	3-5 HP, 440 V, 3 Phase, 50Hz.
Air Consumption	10-35 CFM depend upon the machine model & Bottle size
Water Consumption	100 to 450 LPM depend upon the model & Bottle size.
