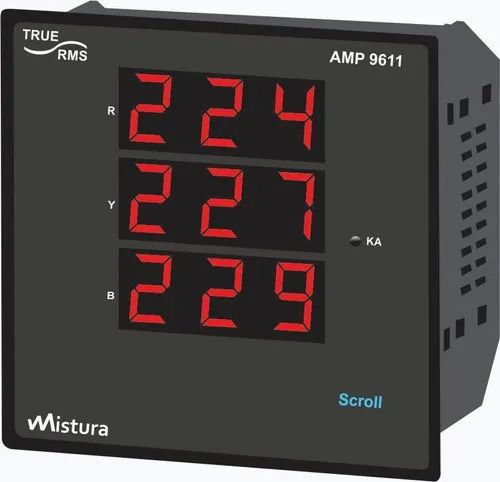

Plastic 50Hz-65Hz 100-200gm 3 Phase MultiFunction Meter, For Energy Monitoring, Industrial, Research Application

MODEL -AVH-9611N

Dimension (HxWxD) mm - 96x96x50

Panel Cutout (mm) - 92x92

Display - Three Display : 7 segment, 4 digit 0.56" RED LED display,

INPUT -

Input Signal - 30 / 4 Wire

Voltage - 0-415V AC (P-P)

CT ration Primary - 5~4000A

CT ratio Secondary - 5A

Parameters -

Voltage (P-P) - YES

Voltage (P-N) - YES

Current per phase - YES

Frequency - YES

Power –

kW-total - YES

kW per phase - YES

kVA-total - YES

kVAr-total – YES

Energy - kWh-total - YES

Power factor -

P.F-average - YES

P.F-per phase - YES

Specification -

Reset Facility - Reset key for kWh (Active Energy)

Special Feature - AUTO / MANUAL scrolling mode

Auto decimal shifting for current (resolution 0.01A or 0.1A)

Accuracy - Class 1.0

Power supply - 230 AC 10%, 50 Hz

Enclosure Material - Plastic

Operating Ambient Temp - o 0 0 C + 55 C

Relative Humidity - upto 95% RH Non Condensing

(Notes : CT ratio secondary /5 & /1 also available in model PM-11H)
