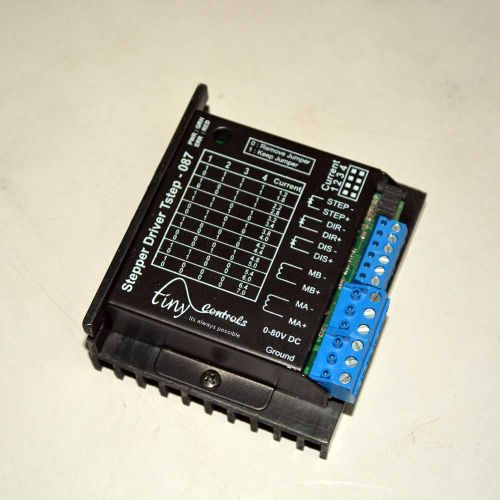

Contact SupplierWe are offering Stepper Motor Driver. Features of Stepper Driver Tstep-087: Precise micro-stepping driver using sinusoidal current for accurate motion. Bipolar Driver can drive motors at 20V-80V and 7A depending on the model Driver current is Jumper selectable for driving range of stepper motors. Driver has opto-isolated StepDirection Inputs and Error output. Low stepper motor heating with automatic current reduction while motor is stopped Very compact design so that drivers require less space in control box or panels. Our drives uses automatic current compensation to achieve maximum torque at high rotation speeds. Smooth motion without any resonance or vibrations. Versatile drive design capable of driving range of stepper motors. Short circuit protection Driver can be used with 4, 6 or 8 lead stepper motors in bipolar Series, Half Coil or Parallel configurations. Made in India User manual: http:www.tinycontrols.comdatasheetsTstep-087.pdf Stepper Drive Specification Series Model : Tstep-087 Rated Voltage : 18V-80V Rated Current : Jumper selectable 1.2A to 7.0A Micro stepping: Yes Idle Current Reduction : Yes Short Circuit Protection : Yes Isolated Step Dir Inputs : Yes
