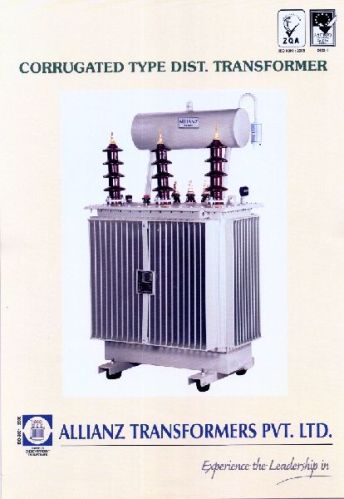

Electric Corrugated Distribution Transformers, For Robust Construction, Easy To Use, High Efficiency, Reliable

today "allianz" is the name synonymous to corrugated type distribution transformers in the world market. Over 10,000 transformers are in operation worldwide for more than twelve years. This itself is self-explanatory for its quality which is no second to any other brands. The theme of our design and manufacturing is total reliability.

corrugated distribution transformers features is:

compact in size

saving in steel
saving in oil
saving in freight
saving in space
elegant appearance
hermitically sealed construction

the distribution transformers core is made out of high quality low loss crgo silicone steel laminations and is carefully built so as to attain minimum losses, magnetizing current, vibration & adequate mechanical strength.

the need based perfect design makes the windings selective and are so perfected that all the necessary parameters are met with. The windings are of electrolytic grade copper of rectangular or round sections. They are covered with several layers of age resisting insulation paper of high dielectric strength or thick enamel coatings as the case may be. The windings are done with utmost care for proper insulation and mechanical strength to withstand short - circuits. Radial and axial ducts are provided for effective cooling.

all insulating materials are selected and processed according to the requirement of basic insulation level & insulation gradient. Kraft paper used for conductor insulation, inter-layer insulation & inter-winding are of high dielectric strength. After final assembling of transformer, it is properly dried in oven till maximum insulation strength is achieved.

off - circuit tap switch used may be linear or rotary type. We also supply transformers with on load tap changer.

the transformer oil used in this transformer is of e h v grade oil conforming to international standards.

the design of corrugated distribution transformers tank is so perfected, that necessitates all features to zero failure. Transformer tanks are subjected to special painting process for long lasting.

corrugated distribution transformers standard accessories
rating & diagram plate.
lifting hook.
terminalmarking plate.
bottom drain valve.
two earthing terminals.
oil level gauge.
off-circuit tap switch.
air release plug.
silica gel breather
explosion vent.
thermometer pocket.
uni-directional rollers.
oil conservator
