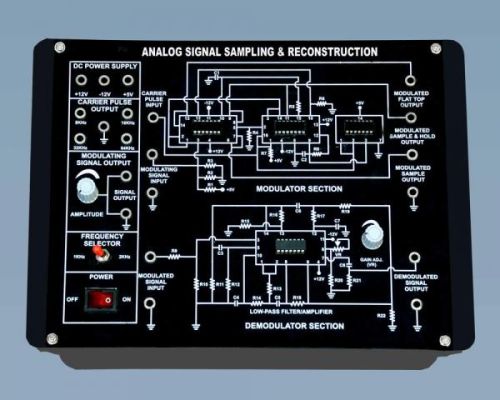

ANALOG SIGNAL SAMPLING & RECONSTRUCTION KIT

This kit helps the students to understand the principle of Sampling of Analog signals. By reconstructing the sampled signals and comparing with original signal one can clear his idea about sampling & reconstruction.

Internal sine wave generator of 1KHz (5V P-P).

Sampling frequency of 2KHz, 4KHz, 8KHz, 16KHz & 32KHz.

Duty ratio of 10%-90% in 10% steps (switchable)

Onboard Sample & Hold circuit.

Ripple counter generating sampling frequencies of 20Hz to 20KHz.

Onboard low pass filters of 2nd order & 4th order.

Set of Patch Chord & User Manual.
