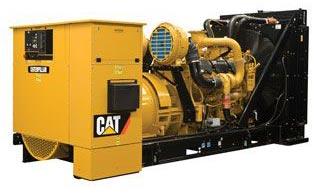

50hz Automatic Diesel Generator Set (1010KVA), Color : Yellow

We are one of the leading Suppliers of Diesel Generator Set (1010KVA) in India. We have been appreciated by our clients for providing them excellent quality Diesel Generator Set at nominal prices. We assure delivery of Diesel Generator Set in stipulated time frame.

Engine Specifications :

• 32 liter displacement
• V12 configuration
• 145 mm bore
• 162 mm stroke length
• 15:1 compression ratio

Advanced Engine : The Building Blocks of ACERTÃ�® Technology ADEM^TM A4 controller :

• Mechanically actuated electronic fuel injection (MEUI)
• Cross flow cylinder heads

AC Generators : Designed and manufactured for Caterpillar, the C32 generator set offers a load acceptance module that provides the engine relief upon sudden block loading, as well as improving its load acceptance and recovery time. Other features include :

• Double bearing, star connected
• Brushless, self-excited and self-regulated
• Class H insulation with Class H temp rise
• Ability to meet the following specifications : IS 4722, BS:5000, IEC34-1

ADEM^TM Controllers : The ADEM A4 is an integral part of the innovative ACERT Technology � providing a higher degree of control over a large number of combustion variables than ever before. The ADEM A4 is:

• Composed of the ADEM A4 ECM, control software, sensors, actuators, fuel injectors and interface to the generator system
• Designed to control/interface Electronic Unit Injector (EUI) equipped engines
• Able to better control and maintain the particulate emissions, both steady state and transient, while improving its overall engine performance

Diagnostics and Monitoring : The Cat EMCP 3 Series provides advanced control and protection features, eliminating the need for numerous switches, relays and meters. Delivering comprehensive engine and generator set monitoring; the EMCP 3 Series is scalable to meet a wide range of customer needs. The control panel offers :

• User-friendly interface
• Easy navigation
• Add-on modules for remote monitoring
