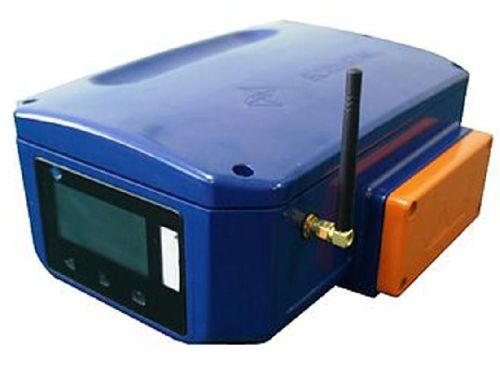

SMARTsaa Ecrystal Coal Ash Sensor

Smartsaa and ecrystal coprporation offers totally new concept of level measurement of coal ash in esp hoppers. It eliminates use of rf level switches which fails at site and 3 d radars which are costly and non affordable. By using this product the operating efficiency of esp hoppers improves drastically as proper level management for effective removing of as is now possible. Special models with wireless remote and control unit make it easy for centralized data collection of plant hoppers at one place.
Nogs (naturally occurring gamma-ray sensor), a new-type, secure gamma ray detection technology, widely applied in the level measurement of esp fly ash in the hopper.
coal ash sensor, with its built-in processor, can effectively translate the gamma ray intensity of fly ash to precise material level figures by random signal recognition technology
no radioactive source coal ash sensor: for fly ash level measurement of esp hopper
naturally occurring gamma-ray sensor (nogs) technology
do not require use of an artificial radiation source
non-contact solution for fly ash level detection
unique design that withstands harsh environments
positioned completely outside the hopper unit having absolutely no contact with the coal ash materials
easy to install, no need to drill a hole in the hopper or pressure tank
long lasting, the sensor will not be damaged by falling ash
accurate level measurement , do not get affected by ash built up on the wall or high temperatures
installation and maintenance can be performed during regular plant operation so no shut down time required
specifications:
model no : smartsaacas
supply : 85 -260 v ac
enclosure : control unit, cast al ip 65
mounting : to be mounted outside the hopper simply with bracket
op : 2 co relay contact rated for 5 amp at 230 v ac
max temp : -45 to 75 degree cent for control unit
