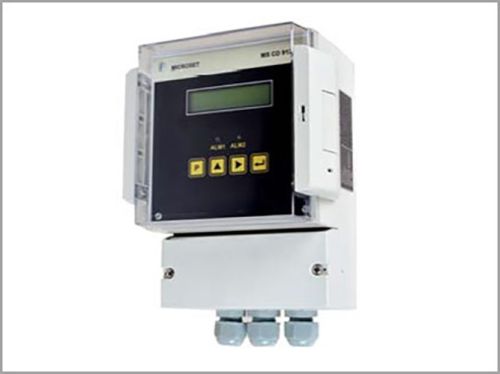

MicroSet Series MSCD -912 is Conductivity Indicator specially designed for various industrial applications. These can be used for monitoring Conductivity of a solution. The measuring range and control points are settable through the keypad on front fascia and control output is available at the rear terminals. Retransmission output, communication port are additive features of MSCD -912.
Â
| Technical Specifications | ||
Type of Input | : | From Conductivity Electrode |
Cell Constant | : | 1 / 0.1 / 0.01 |
Display | : | 2 x 16 Characters Backlit |
Calibration Range | : | 0 to 100 μS/cm for cell constant 0.01 0 to 1000 μS/cm for cell constant 0.1 0 to 10000 μS/cm for cell constant 1 |
Accuracy | : | Better than + 0.25% F. S. |
Power Supply | : | 1) 24 V DC, External 2) 90 - 250 V AC, 50 Hz +/- 10% |
Power Consumption | : | < 10 VA |
Temperature Drift | : | < 0.01% of F. S. per 0C change |
Response Time | : | < 500 mSec |
Isolation | : | 1.4 KV between Input, Output & Power Supply |
Enclosure | : | 1) DIN Std. 2) Weather-proof, IP-65 3) Flame-proof, IP -65, IIA, IIB CMRI Certified |
Mounting | : | WP enclosure Field Mounted |
Weight | : | 1.5 kg (Approx.) |
Operating Conditions | : | Temperature 0 to 55 0C / Humidity 5 to 95% non condensing |
Retransmission Output | : | 4 to 20 mA Isolated |
Temp Compensation | : | Pt -100 |
Alarm | : | 02 Nos. |
