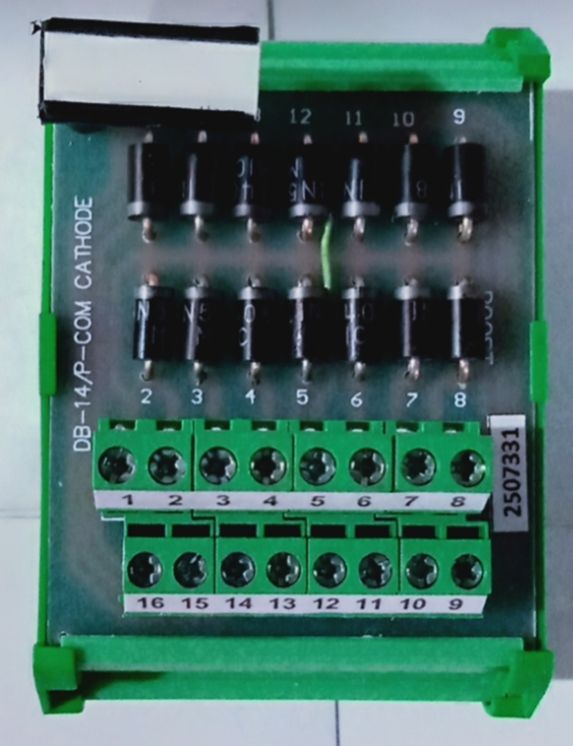

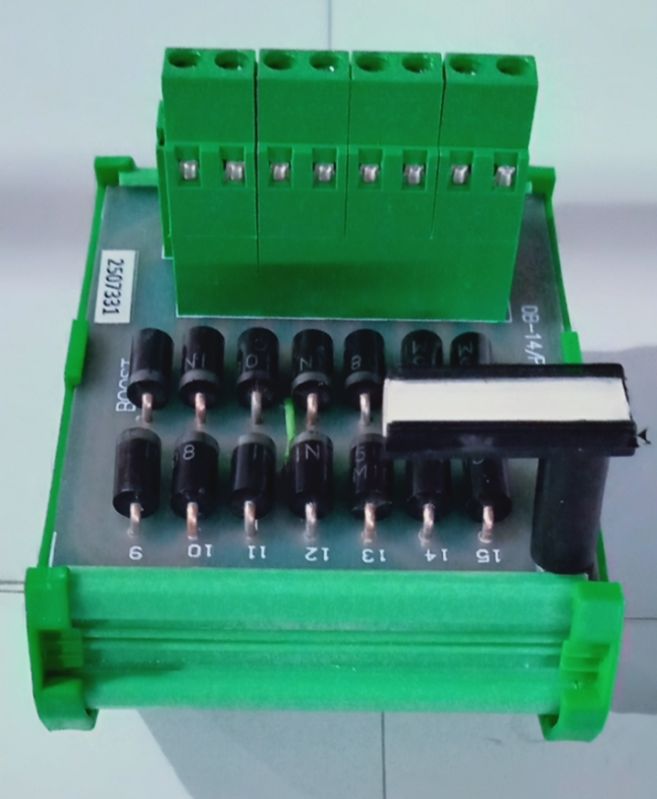

Boost PVC Diodes DB-14/p Com Cathode, Color : Green For Industrial

14 Output Diode Board
Din Rail Mounting

Item No:- DB-14/P COMMEN CATHODE

Diode board with profile
1) TYPE OF DIODE : 1N 5408, Make- MIC or Equivalent.
a) MAXIMUM CURRENT : 3 Ampere.
b) PIV RATING : 1000V.
2) NO. OF CHANNEL : 14

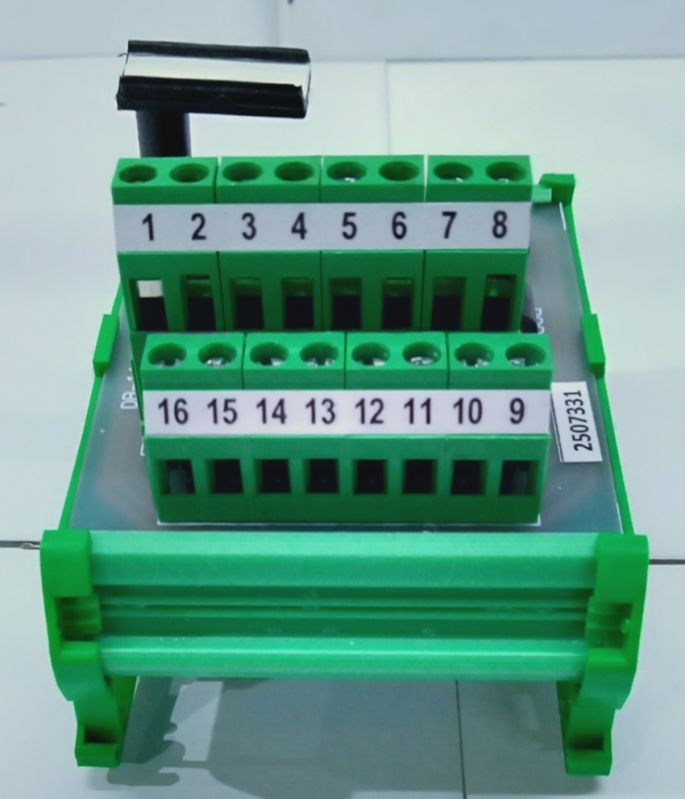

3) TERMINATION’S : All terminals are screw type & suitable for 2.5 Sq. mm. cable wire.
4) PCB size : 60 mm x 72 mm
5) DESIGNATION : Designation plate screwed to the PCB for labeling purpose.
6) PACKING : Each diode board should be individually packed to avoid transit damages.
7) TESTING : Visual inspection test - 100 % Dimensional check - 100 % Terminal numbering - 100 %
