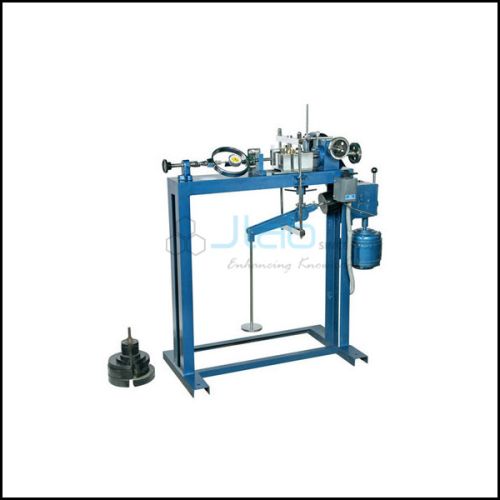

Direct Shear Test Machine

MOQ1 Piece(s)
Brand NameJLab
Country of OriginIndia
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Features : The Equipment is designed to test resisting shear strength of soil specimen. The facility of the machine to test four specimen under different vertical pressureThe electric....

View More Details

Send Enquiry

Company Information

Jain Laboratory Instruments Pvt.Ltd.

Ambala Cantt, Ambala, Haryana

View Number

Member Since 8 Years
Nature of Business Retailer
GST No. 06AADCJ9848D1ZE

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Features :
The Equipment is designed to test resisting shear strength of soil specimen. The facility of the machine to test four specimen under different vertical pressureThe electric strain direct shear testing apparatus is used to test the resisting shear strength of soil specimen.
Technical Specifications :
Area of soil sample : 30 cm2
Lever ratio : 1:12
Vertical loading : 50, 100, 200, 300, 400 KPa
Horizontal loading : 1.2 KN
Shear rate : 5, 2.4, 1.5, 1, 0.8, 0.02, 0.01 mm/min
Specimen size : 30cm2
The working table is made of : Stainless steel
Pushing mechanism : Stepping Motor
High Precision & Low Noise
Control system : MCU
Speed : Variable
Display system : LCD / LED
Power Supply : 220 ~ 240 V AC, 50~60 Hz
