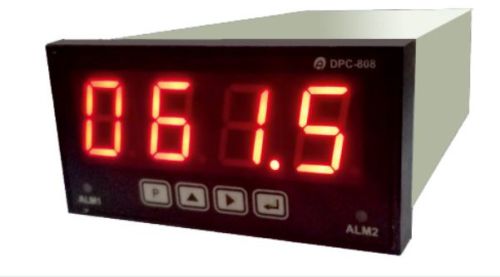

DPC 808 Universal Input Process Indicator

DPC-808 Universal Input Process Indicator & ControllerFeatures

• ON/OFF Controller

• Single Channel

• Universal Input Compatibility

• Open Sensor Indication

• Software Calibration

• Cold Junction Compensation for Thermocouple Inputs

• Large 0.8” Seven Segment LED Display

Electronet Series DPC-808 is a compact, universal input Process Indicator / Controller designed for a wide range of industrial applications.
It is suitable for monitoring and controlling parameters such as Temperature, Humidity, Pressure, Flow, Level, and more.

The measuring range and control points can be easily set using the keypad on the front fascia, while the control output is provided on the rear terminals.
Its low-cost design, compact size, and large display height make the DPC-808 an excellent choice for process control requirements.

Type of Control: ON/OFF
Number of Inputs: 1

1. Universal Input

2. RTD – PT-100 / PT-200 (2 or 3 Wire)

3. Thermocouple – J / K / R / S / T / B / E Types

4. Current – 0–20 mA / 4–20 mA

5. Voltage – 0–5 V DC / 0–0.1 V DC

• 4 × 1 Digit, 0.8”, 7-Segment Red LED

• Programmable for mA & Voltage (–999 to +9999)

• Fixed display for all RTD & Thermocouple inputs

• R, S & B Type TC: ±0.5% of F.S.

• All other inputs: ±0.25% of F.S.

• Open Sensor Indication: Displays ‘OPEN’ for RTD & Thermocouple inputs

• Power Supply:

  1. 90–250 V AC

  2. 24 V DC (±10%)

• Power Consumption: <10 VA

• Temperature Drift: <0.01% of F.S./°C

• Response Time: <200 mSec

Enclosure Options:

1. DIN Standard

2. Weatherproof – IP66

3. Flameproof – CMRI Certified

Bezel Size Options:

• 96 (H) × 96 (W) × 160 (D) mm

• 48 (H) × 96 (W) × 160 (D) mm

Mounting:

• Flush Panel Mount (DIN Standard)

• Wall Mount for Weatherproof / Flameproof Models

Weight:

• Approx. 500 g (48 × 96 model)

• Less than 1 kg (96 × 96 model)

• Temperature: –20°C to 55°C

• Humidity: 5% to 95% RH (Non-condensing)
