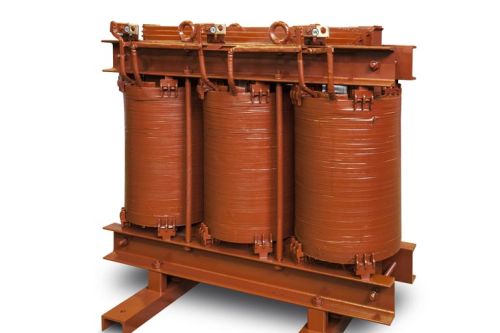

Dry Type Distribution Transformers (upto 500KVA)

Our selection of Dry Type Impregnated Transformers ranges from rated poker of 20kVA to 500kVA.
For specific implementations and photovoltaic systems, with low losses and high efficiency. Features upon request: Electrostatic ground shield and protection enclosure

Standard manufacture and features

PRIMARY VOLTAGE UP TO 3 kV
SECONDARY VOLTAGE UP TO 1 kV
INSULATION CLASS UP TO 3 kV
FREQUENCY: 50HZ
CORE MADE WITH INSULATED GRAIN-ORIENTED MAGNETIC STEEL FOIL
COPPER PRIMARY AND SECONDARY WINDINGS
TERMINAL BOARD:
- WEIDMULLER TYPE (UP TO 50 kVA)
- BAKELITE WITH BRASS NUTS AND BOLTS (FROM 50 kVA TO 100 kVA)
- COPPER PLATE (OVER 100kVA)
LIFTING LUGS
EARTHING TERMINAL
DATA PLATE
PROTECTION GRADE IP 00
