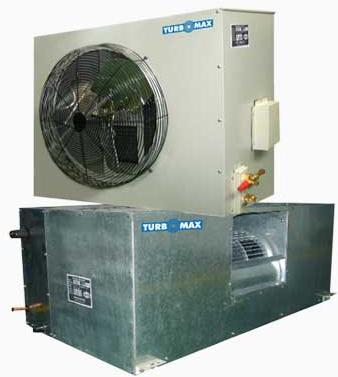

Ductable Split Air Conditioner

We are one of the prominent suppliers of Ductable Split Air Conditioner that is made using the most sophisticated machinery. This Air Conditioner is provided with a time clock for reducing the operating and power cost. We also provide after sale services to the customers.
Advantages :
Absolute freshness Space saving Energy efficient Reliable
Special Features :
Temperature controlEasy to fault diagnosisSingle button operationTime clockAuto restartMotor protection
Capacities Available :
5.5 TR8 TR11 TR17 TR2.5 TR(optional)4.25 TR(optional)
Technical Data-Ductable Split Units (Air Cooled) :
ModelTmds 1S0 550ATmds 2S0 850ATmds 2S0 1100ATmds 3S0 1650ANominal Capacity (TR)5.58.51116.5Refrigerant (R)22222222No. of ref. Circuit11/223Indoor UnitInout Current (amp)9.511.51923EER8.98.98.98.9CFM2200340044006800Unit Dimension----Width (mm)1300165521002160Depth (mm)755755810960Height (mm)460460500690Outdoor Unit (Air Cooled Condensing Unit)No. pf Outdoor Unit11/223 Compressor TypeScroll Scroll Scroll ScrollPower : 380-415 vac, 3phase, 50hzCondensing CoilNos.of Rows3333Fin Spacing (FPI)12/1312/1312/1312/13Condensing FanFan Qty1111Motor Qty1111Speed (rpm)910910910910Unit DimensionWidth (mm)1050171010501050Depth (mm)580615580580Height (mm)850900850850.
