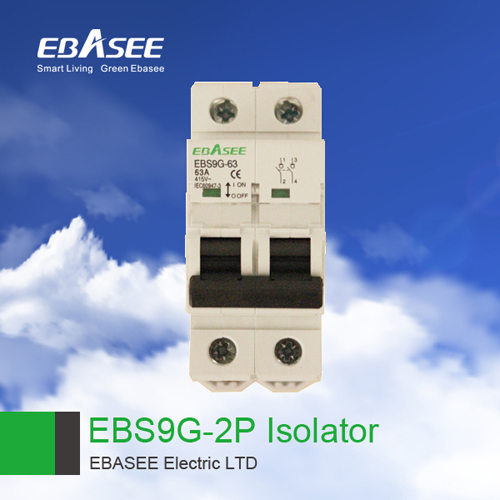

Electrical Switches, Brand Name : Ebasee

we are offering Ebs9g Series Electrical Switches .
Product Description
1,The electrical switch rated current In (A): 16, 25, 40, 50, 63A
2,Rated voltage: 230400V
3,Poles:1P, 2P, 3P, 4P
4,CE AAA
Product Feature
1. Capable of switch electric circuit with load
2. Adaptable to padlock device
3. Contact position indication
4. Capable of quickly releasing stored energy operation
5. Highlighted of high making and breaking capacity
6. High short circuit current withstand capacity
7. Used as main switch for household and similar installation
Product SpecificationModels
EBS9G Isolating switch, mainly as a main switch of terminal conbination unit, with high dynamic and static stability, is applicable for distribution and control circuit of AC5060HZ, rated voltage up to and including 400V, and can be used to control the motor, small power electric appliance, it is widely applied in the fidlds such as industrial and mining enterprise, high-rise building, commerce and household. etc.
Model: EBS9G electrical main switch
Standard: IEC 60947-3
Rated current In (A): 16, 25, 40, 50, 63A
Rated voltage Ue (V):230400
Poles:1P, 2P, 3P, 4P
Rated insulation voltage Ui (V): 690
Rated impulse withstand voltage (V): 4000
Utilization catelogry: AC-22 A
Rated short-time withstand current Icw: 12le, t=1s
Rated short-circuit making capacity Icm: 20le, t=0.1s
Rated making & breaking capacity Icm: 3le, 1.05Ue, cosx=0.65
Rated short circuit making capacity: 6KA
Rated frequency:5060Hz
Degree of protection: IP20
Mechanical life: 8500
Electrical life: 4000.
