Epstein Tester

model :vet-1608

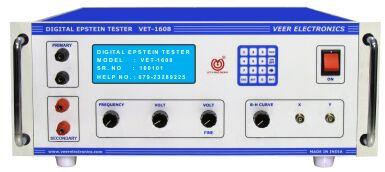

veer make digital epstein tester vet-1608 is complete stand alone instrument to measure ac magnetic properties of electrical steel of all grade and gauges mostly. It refers astm-343 standard. It also refers iec 60404-2 & is:649. Epstein frame method is standard & worldwide accepted method to test important magnetic parameters like watt/kg, va/kg, magnetizing force, permeability, form factor etc on different induction.
we provide software " veer communication tool" along with vet-1608 which communicates with vet-1608. You can create test report of test specimen in provided ms excel format. This report indicates results & graph of watt/kg, va/kg, ac & peak magnetizing force, ac & peak permeability, form factor etc at different induction which are useful to evaluate material properties and saturation point for specific induction. Hysteresis curve (b/h) facility may also provided in vet-1608 on request.

features:

better accuracy then required by different standards.
accurate sine wave with negative feedback.
20 x 4 line lcd display to display parameters.
usb and rs-232 port for computer interfacing.
free software for test report.
tamper proof calibration.
automatic over voltage shut down.
automatic over current shut down for amplifier.
fuse protection for over current condition
stable source 16v - 8a (optional 24/32v - 12a).
small in size
b/h curve measurement (optional on oscilloscope)
