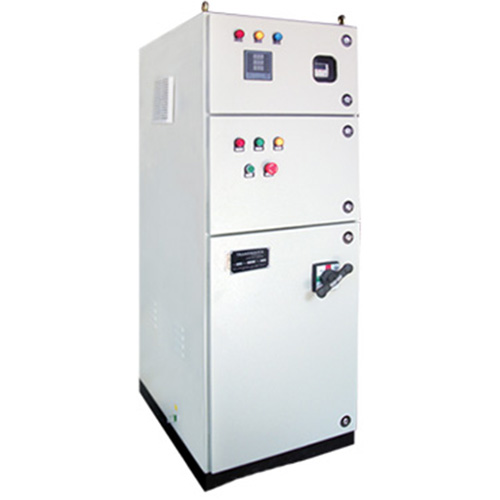

FCMA SOFT STARTER CONTROL PANEL

FCMA Soft Starter a new solution for starting motor in full load less than 1.5 times of motor full load current. Sakthi Power Innovatives an ISO 9001 : 2015 Certified Company is engaged in designing and manufacturing FCMA Soft Starter in brand name TRANSWAVES. FCMA Soft Starter is step less, reduced voltage start which ensures a constant low starting current and incremental voltage and torque to the motor to get smooth acceleration. As the motor speed increases, the controller impedance decreases due to counter emf feed back to achieve constant incremental voltage torque for motor. This achieves very soft and smooth starting of load to Crusher, Compressor, Pumps, Crane hoist Centrifugal fan etc which helps in optimizing the power source ie, transformer or generator capacity. Optimized power system gives savings in capital in cost savings revenue expenditure due to increased efficiency.

We also provide “The customized solution as per clientstechnical requirements”

Salient Features:

• Complete motor starting engineering solution as a part of pre-sales service to customer
• Extremely rugged in construction . Suitable for extreme weather conditions like dust and desert environment
• Low starting Current
• Starting of motor in gensets
• Starting current up to less than 1.5 IFL
• Starting of motor with limited power
• Built in bypass for full voltage during running
• No Harmonics generation - Zero Harmonics
• No forced cooling required
• Micro controller Digital Motor protection for Over current, Under current, Stall, Lock, Phase failure , Reverse phase, Asymmetry
• Protection relay for under voltage / over voltage
• Virtually no maintenance
• Easy to install and operate
• Indigenous components and Magnetic Flux control technology

Product Range Type of AC Motors:Synchronous Motors, Squirrel cage and Slip ring Induction MotorPower:10KW to 20000 KWVoltage:415V to 11 KV Applicable Idustries

Water board, Irrigation Department, Sewage treatment plant Paper industry, Textile industry, Mining industry etc.

Specification Standards Operating voltage:415V/3300V/6600V/11000/13800V, 50/60HzControl voltage:II0VDC/240VAC.50HzAuxiliary supply:240 V ACInsulation:Class H/FDuty Cycle:6 starts per/hrMethod of cooling:Natural air cooledEnclosure:Floor mounting cubicle with Bottom/Top cable entry in IP41 grade of protection suitable for indoor installationFinish:Epoxy powder coated Ordering Information

1. The motor output in Kw, rated voltage, full load current, speed, power factor and resistance per phase
2. Control supply voltage, Auxiliary supply voltage
3. The motor torque speed characteristic
4. The load torque speed characteristic
5. The inertia of motor rotor as well as machine rotating parts.
