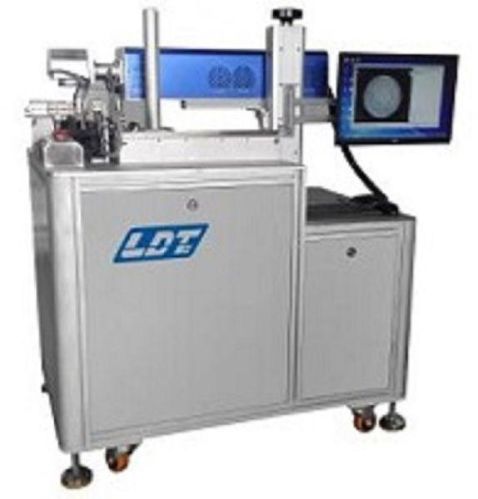

Full Auto Token Laser Coding Machine

Feature:
1. The machine is mainly design to the process of laser coding on the surface of subway coin.
2.Applying to the size30*3 subway currency which is widely used in the market at present.
3.The equipment adopts the vision system to identify the direction and location of the subway coins, and carries out laser coding according to the identified position.
4.Fully automatic operation, fast running, high coding accuracy and efficiency, can replace a large number of manual operation.
5.The vision camera and the laser machine are respectively arranged on both sides of the subway coin, so that coding on blank surface accurately also can be realized.
6.Adopting a CO2 laser coding machine, and the coding line is clear and beautiful.
7.Equipped with a contactless card reading system,can laser coding according to the inner-code of the coin chip.
8.Adopting rotary disc operation,the servo motor drives the rotary disc do circular intermittent motion.
9.Automatic card feeding, picking and collecting, contactless card reader, laser coding and visual positioning, distributed in each working station of the rotary disc, with high operation efficiency.
10.The whole machine adopts windows control system, easy to operate and convenient to adjust the parameters.
11.Other functions can be developed for customer. Special functions also support to upgrade.
Machine Spec:
1.Power Supply: AC220V, 5060HZ
2.Power Rating: 1.5KW
3.Operation System: Windows
4.Operation Speed: About 3000 pcsh
5.Card Type:Diameter 30mm, Thick 3mm (can be customized as required)
6.Overall Size: L1150*W750*H1350mm
7.Wight: About 180KG
8.Operator: 1person
