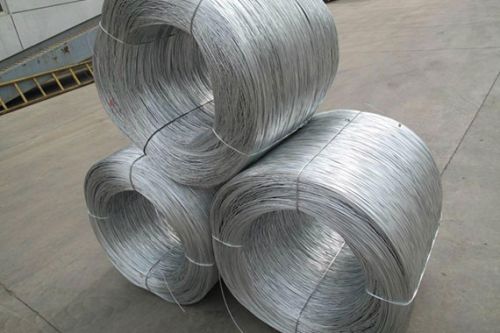

Contact SupplierMild steel drawn wire passes through molten zinc and coating is done. Bright Shining and free from foreign particles. IS - 4826 IS - 280
Size | Quality | Coating (gm/mm2) | |
Thicker Wire | 4mm to 2mm | Heavy | 240 to 290 |
Fine Wire | 1.8mm to 0.91mm | Medium | 135 to 170 |
Size variation | ±2.5% (Minimum of 0.025 mm) | Light | 60 to 115 |
Ovality | ±0.5% (Minimum of 0.025 mm) | Commercial | 30 to 40 |
Tensile Strength | |||
Soft | 38 to 55 kgf | Hard | More than 55 kgf |
Coil Size | |||
Thicker Wire | 550 mm | Fine Wire | 300 mm |
Coil Weight | |||
Thicker Wire | 45 to 150 kg | Fine Wire | 20 to 30 kg |
Packaging | |||
Thicker Gauge | Hassian Cloth, binded four sides with wire (on demand) | ||
Fine Sizes | PVC film wrapped and Hassian packing (on demand) | ||
Wire Rod Raw Material ( As per IS - 7887 & IS - 2062) | |||
Carbon | 0.12 to 0.20 | Phosphorous | 0.05 max |
Silicon | 0.05 max |
