Gas Sensor

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

The Gas Sensor (MGS) is a state-of-the-art fixed gas detector which can detect a wide range of different gases. The sensors can be used on a stand-alone basis or integrated into Controls or....

View More Details

Send Enquiry

Company Information

Kahan Controls

Kandivali, Mumbai, Maharashtra

View Number

Member Since 9 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

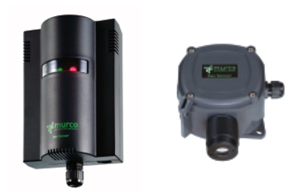

The Gas Sensor (MGS) is a state-of-the-art fixed gas detector which can detect a wide range of different gases. The sensors can be used on a stand-alone basis or integrated into Controls or Building Management Systems (BMS).

Application :
	Refrigerant gases all refrigerant gases including: Ammonia, Carbon Dioxide, Hydrocarbons, Halocarbons - HFCs, HCFCs, CFCs.
	Combustible gases such as: Methane, LPG, Propane, Butane, and Hydrogen
	Toxic gases such as: Carbon Dioxide and Ammonia in refrigeration, Hydrogen Sulphide in sewage treatment and Carbon Monoxide in underground car parks
	Volatile Organic Compounds such as: Acetone, Benzene, Carbon Tetrachloride, Chloroform, Ethanol, Toluene, Trichloroethylene.

Features :

Technical Specification		MGS Standard

Power Supply		12/24V AC/DC ± 20%(IR 24V AC/DC)

Power Consumption		EC (24V): 45.7mA SC: 91mA

Power Monitoring*		Green LED

Visual Alarm*		Red LED

Audible Alarm*		Sounder, enabled/disabled

Fault monitoring		Red LED ON – Green OFF

Fault state		0-1V, 0-2mA

Analogue Outputs		0-5V, 1-5V, 0-10V, 2-10V, 4-20mA

Digital Outputs*		1 Relay rated 1 Amp/24 V d.c /120 V a.c Selectable delay: 0,1,5,10min

IP Rating		IP41 OR IP66

Dimensions and Weight		86 x 142 x 53 mm 180 g

Standard Compliance		WEEE RoHS CE, EXD

Sensor Information	ElectrochemicalEC	Semiconductor withfilter (multigas) SC	InfraredIR

Typical MeasurementRang	0-1,000 ppm	10-1,000 ppm	ppm - %

Temprature Rang	A: -20°C to +40°C B: -40°C to +40°C	-40°C to +50°C	-40°C to +50°C

Humidity Range non condensing	0 to 95%	0 to 95%	0 to 95%

Typical Sensor Life	3 yrs	5-8 yrs	8-10yrs

Alarm threshold T50	19 sec	76 sec(filtered)	25 sec

T90	47 sec	215sec(filtered)	90sec

Recovery Time	900 sec	600 sec	210 sec

Linearity		Linear over calibrated range

Calibration	Local regulations may specify the procedure and frequency requiredStandards

Requirements	generally require at least annual testing or calibration. Refer to Murco for instructions. Semiconductor sensors are non-selective, but calibrated to a specific
