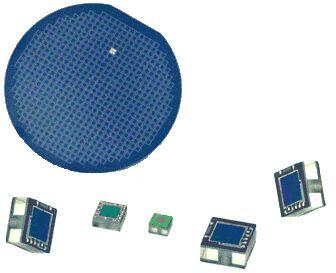

HB2103 Pressure Sensor Chip

Get Latest Price

MOQ500 Piece(s)
Operating Temperature-45º C - +100º C
Bridge Resistance5 (1± 20%) KΩ
Overload Capacity2 times scale(≤ 10MPa); 1.5times scale(> 10MPa)
Sensitivity Temperature Coefficient± 0.1%F. S. / º C(≤ 35KPa) ± 0.05%F. S. / º C(other scale)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Shenyang Academy of Instrumentation Science Co.,Ltd.

Shenyang

View Number

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 1962

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Sensitivity Temperature Coefficient± 0.1%F. S. / º C(≤ 35KPa) ± 0.05%F. S. / º C(other scale)
Offset≤ 30mV@1mA
Overload Capacity2 times scale(≤ 10MPa); 1.5times scale(> 10MPa)
Span Output≥ 30mA(≤ 35KPa); ≥ 60mV (other scale)
Nonlinearity± 0.25%F. S.
Nominal Scale35KPa, 100KPa, 250KPa, 600KPa, 1MPa, 1.6MPa, 2.5MPa 100KPa, 250KPa, 600KPa, 1MPa, 1.6MPa, 2.5MPa, 6MPa, 10MPa, 25MPa, 40MPa, 60MPa
Power Supply1 mADC (typical), 5V (optional)
Chip Size(um)2700*3450 2450*2450 2000*2000
Bridge Resistance5 (1± 20%) KΩ
Operating Temperature-45º C - +100º C
Zero Temperature Coefficient± 0.1%F. S. / º C
Short Term Stability± 0.05%F. S. /8h

piezoresistive die technology in 1961, shenyang academy of instrumentation science started to research and manufacture silicon piezoresistive wafers. With excellent technology and well educated employees, we become the market leader in china for piezoresistive die soon. We establish our reputation for cost-effective and quality. The pressure dies have been employed in pressure transducers widely in the world. Features ã¯ï¿½â¬ absolute pressure and gage pressure measurement ã¯ï¿½â¬ pressure-proportional voltage signal output ã¯ï¿½â¬ high sensitivity ã¯ï¿½â¬ super-purified room to ensure the quality ã¯ï¿½â¬ modern equipments to test and calibrate ã¯ï¿½â¬ mems technology ã¯ï¿½â¬ process monitoring ã¯ï¿½â¬ self-manufactured dicing saw
