HDMI Splitter, Packaging Type : black

We are offering hdmi splitter.

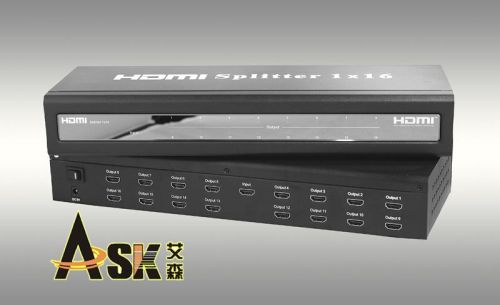

3d 1x16 hdmi splitter
1. Input 15m , output 25m
2.hdmi v1.3 hdcp 1.2
3.cec, 36bit deep color
4.1080p/60hz 10.2gbps


the 1x16 hdmi splitter use a single hdmi source,accessing to multiple hdmi sinks. The
splitter allows one hdmi devices to be split easily to sixteen hdmi compatible monitors or
projectors. The splitter can also be placed at the end of a long hdmi cable to regenerate the
hdmi signal.



features
l one hdmi 1.3b input signal split to sixteen hdmi 1.3b sink devices
l hdcp 1.2 protocol compliant
l support 3d
l support cec
l support deep color 30bit, 36bit
l support blue-ray 24/50/60fs/hd-dvd/xvycc
ll support input up to 15metres awg26 hdmi 1.3 standard cable length,
output up to 25metres awg26 cable length
ll need dc5v/4a power supply



specifications: hdsp0116
hdmi version…………………………………………………………………………… hdmi 1.3b
hdcp version…………………………………………………………………………...hdcp1.2
hdmi resolution ………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
support video color format …………………………..…………….24bit/deep color 30bit,36bit
support audio format……………….dts-hd/dolby-truehd/lpcm7.1/dts/dolby-ac3/dsd
max bandwidth……………………………………………………………………………..225mhz
max transmission bandwidth…….………………….…………………………………..6.75gbps
input/output tmds signal ………….…………………………..…………0.5~1.5volts p-p(ttl)
input/output ddc signal ……………………………………………..………… 5volts p-p (ttl)
input cable distance..…... ……………………….……≤15m awg26 hdmi 1.3 standard cable
output cable distance…………………………….…...≤25m awg26 hdmi 1.3 standard cable
max working current……………………………………………………………………….......2.4a
power adapter format..input: …………......ac (50hz, 60hz) 100v-240v; output: dc5v/6a
operating temperature range……..…………….………………………………… (-15 to +55°c)
operating humidity range………………………….….……….5 to 90%rh (no condensation)
dimension (l x w x h) ……………………………….………………………380x140x60 (mm)
weight…..………………………………………………………..…….……………………….2030g
