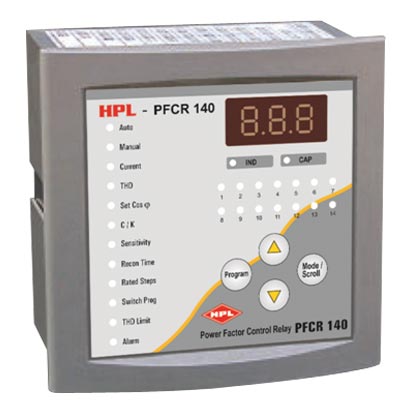

    Load Manager, For PF Regulation

    Load Manager, For PF Regulation

    Get Latest Price
    • ApplicationFor PF Regulation
    • Operating Limits:0.15A to 6.5A
    • THD Threshold:0.20-3.00(20%-300%)/OFF
    • Phase:Three Phase Four Wire
    • Supply TypeManufacturer, Exporter, Distributor
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    HPL Electric and Power Limitedverified-icon
    location Kundli, Sonipat, Haryana
    4.0/5fill iconfill iconfill iconfill icono icon(2)
    View Number
    • calendar Member Since 17 Years
    • building Nature of Business Exporter
    • Year of Establishment 1992

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • ApplicationFor PF Regulation
    • Switching Program:Automatic/Automatic Rotate/4-Quadrant/Manual
    • Switching Sensitivity:5-600s/step
    • Phase:Three Phase Four Wire
    • Frequency:50 Hz
    • Rated capacity:5A, 250 V AC (CosQ:1)
    • Parameters AvailableP.F. , I & THD of I
    • Consumption:10 VAmax
    • Maximum Current for the common terminals:12 A Continuous
    • Operating Limits:-15% to +10%
    • Current Input
    • Relay Output
    • Dimensions:144 * 144 * 91 mm
    • Numbers of outputs:6/8/12/14
    • Control Range
    • Rating Auxiliary Power Supply
    • C/K Setting0.03-1.20/Automatic
    • Operating Limits:0.15A to 6.5A
    • Contact arrangement:NO contacts type
    • Rated step coefficient:0/1/2/3/4/6/8/12/16 (Automatic if C/K set of Auto)
    • Rated Frequency:50Hz
    • Rated current, In:5A
    • Power Factor Setting:0.8 Inductive -0.8 Capacitive
    • Reconnection time for same step:5 - 240 s
    • THD Threshold:0.20-3.00(20%-300%)/OFF
    • Supply voltage:415 V AC
    • Item Code:PFC06041550, PFC08041550, PFC12041550, PFC14041550

    Salient Features

    • Microprocessor based intelligent auto switching control.
    • Automatic C/K and rated step adjustment.
    • Automatic CT polarity correction.
    • Display of power factor, current & total harmonic distortion of current.
    • Programmable sensitivity.
    • Last step can be used as alarm / fan output.
    • Under / over voltage alarm, under / over compensate alarm & high distortion alarm.
    • available in 6,8,12 & 14 Steps
