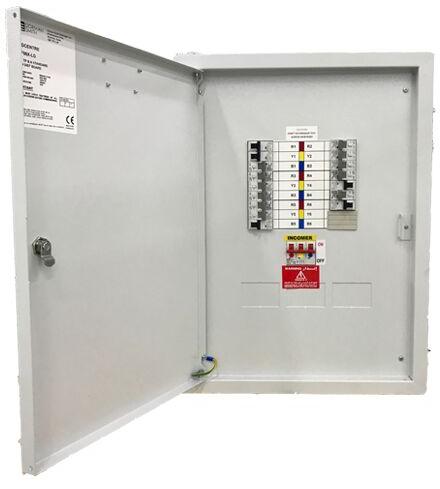

LOADCENTRE Distribution Boards

Loadcentre Final MCB SPN & TPN Distribution Boards, are wall mounted, sheet steel clad systems with Isolator, RCCB & MCB incoming options.
They are available in Standard or Split Busbar versions and are type tested to BS EN 61439-3. In addition, Row Type DBs are also available.

• Type Tested / Verified Assembly to the latest standard IEC 61439 and certified by ASTA
• TPN Vertical - 4, 6, 8, 10, 12 and 16 Way up to 17kA for 250ms type tested / verified to the latest standard IEC 61439 and certified by ASTA
• SP&N and Consumer units
• Horizontal distribution - Row Type: 1 - 6 rows in 10, 12, 16, 18 and 24 Modules
• Incomer ratings from 63A - 250A (Isolators, RCCBs & MCCBs)
• Enclosures formed from 1.2mm sheet steel, epoxy powder coated to light grey semi-gloss as per RAL 7035 with a paint thickness of an average 65 microns. Other color options available on request
• Tin plated HDHC copper bus bars from 100A - 250A
