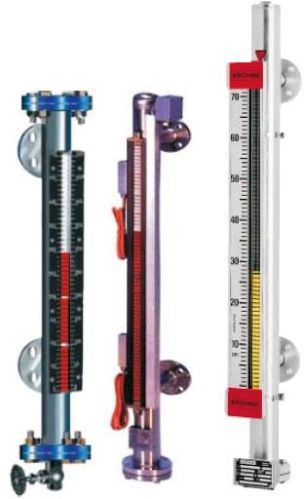

Automatic Steel Magnetic Liquid Level Indicator, Feature : Accuracy, Measure Fast Reading, Perfect Strength

Listing ID #1258366

4,000 - 20,000 / Piece
Get Latest Price
  • TypeMagnetic Liquid Level Indicator
  • MaterialSteel
  • ApplicationTesting Water Level
  • ColorMulticolor
  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 12 Years
  • Nature of Business Retailer
  • GST No. 07AAJCM6683R1ZF

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Type Magnetic Liquid Level Indicator
  • Material Steel
  • Application Testing Water Level
  • Color Multicolor
  • Feature Accuracy, Easy To Fit, Measure Fast Reading, Perfect Strength, Robust Construction
  • Condition New
  • Display Type Analog
  • Automatic Grade Automatic
  • Measuring Range 100-200mm, 200-300mm, 400-500mm, 500-600mm, 700-800mm, 800-900mm
  • Gauge Diameter 20-40mm, 40-60mm

We are known as a trusted Magnetic Liquid Level Indicator Manufacturer and Supplier in Delhi, offering a well-tested range. The Magnetic Liquid Level Indicator is made from quality components, which make it more durable and reliable. The Magnetic Liquid Level Indicator is known for its smooth and accurate operation. Our Magnetic Liquid Level Indicator comes at competitive prices.
Introduction
Level Indicators are laterally to be flanged to the tank as a communicating pressure resistant vessel and serve for level measurement and supervision of liquids and liquefied gases in open and closed tanks. These can be used when instruments with high resistance to pressure and temperature are required or if sight glasses or similar indication parts for reasons of security cannot be used. This measuring system is preferred because there is a safe pressure and gastight separation between measuring and indication part. Therefore, the instruments are suitable for a wide range of applications for the chemicals and Pharmaceutical industries for the petrochemical industry, refineries, oil and fuel tanks, storage tanks, etc. In a communicating float cage which can be flanged to a tank is a cylindrical Float of stainless steel or plastic. A permanent magnet forms part of the float. Outside the liquid on the dry side a Magnetic Level Indication is fitted to the float cage.


Model Number Description

  • Model ML- R (Level Indicators with Magnetic rollers) consists of red/white magnetic rollers equipped with small rod magnets are rotated one after another at an angle of 180" by the directed field of the permanent magnet of the float inside the float cage. Magnetic rollers rotate from white to red on rising level and from red to white on falling level or vice versa
  • Model ML- D (Level Indicators with Drag Magnet) Magnetic Level Indicators consists of drag Magnet instead of Magnetic rollers. Drag magnet moves inside the glass tube which is fixed to the side of the float cage. High & low alarm can be provided at two extreme positions. The level in a tank or agitating machine is permanently indicated as a red column even in the case of power Failure. Level Indicators are outside the liquid in Exzone I and can be used in hazardous atmosphere. It is possible to measure the level of aggressive, combustible, viscous, dangerous, toxic, hot, compressed, agitated and contaminated liquids with high precision and operability


Applications

  • Applicable for level measurement in open or closed tanks
  • Applicable for level measurements and supervision of liquids and liquefied gases
  • Applicable in all ranges of industry owning to corrosion resistant materials
  • Applicable under extreme operating conditions
  • Simple, sturdy, secure against fracture and non-serviced structure
  • Pressure and gastight separation between measuring and indication part


Therefore, the instruments are suitable for a wide range of applications for the chemicals and Pharmaceutical industry, refineries, oil and fuel tanks, storage tanks, etc.


Specifications

Process connection 1" Std Flange
Float cage 304/316 SS / PP / Nylong
Centre to centre Distance 0.5 M.1.5 M and 2M Distance upto 6M can be supplied for special requirements
Operaying Pressure 10 kg/cm2 for style 1 & 15 kg/cm2 for style 2
Operating Temp. Indication 150 oC
Magnetic rollers : Model ML - R
Drag Magnet : Model ML - D
Measuring Accuracy ± 5 mm
Auto control (optional) Pump starts at Low level, trips at high level & Vice-versa
Alarms (optional) High and low level Alarms can be provided. Transisterised relay (optional) having SPDT contact of 5 Amp. 230 C. ac
