O GENERAL DUCTED SPLIT AIR CONDITIONERS

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

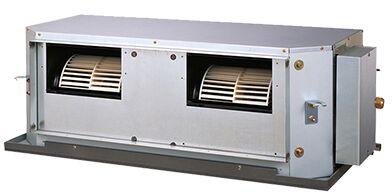

Ducted air conditioners or central air conditioners, are installing behind a suspended or filed ceiling, which completely hides the indoor unit of the air conditioner. The distribution of air is carried out through a system of heat-insulated ducts, which are also located in the inter-ceiling space. O General ducted split air conditioners with refrigerant R22 models in the line from 1.5 ton to 5.0 ton. All the models are power saving and high performance. Perfect choice for villa, apartments or offices. (LIMITED STOCK)

Company Information

Member Since 7 Years
Nature of Business Supplier

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Model No.	Indoor/Outdoor units	ARGA18FMTA/ AOGA18FBTAH	ARGA25FMTA/ AOGA25FBTAH	ARGA30FMTA/ AOGA30FBTAS	ARGA36FMTA/ AOGA36FRTAS	ARGA45FMTA/ AOGA45FRTAS	ARGA60FHTA/ AOGA60FRTAS
Power Source	V/Ph/Hz	240-220 / 1 / 50	240-220 / 1 / 50	240-220 / 1 / 50	415-380 / 3 / 50	415-380 / 3 / 50	415-380 / 3 / 50
Cooling (T1 condition)
Capacity	BTU	17,800	22000	28400	35000	46000	52,000
Input Power	kW	1.53-1.51	1.91-1.88	2.40—2.46	3.01-3.01	4.00	4.47
Current	A	6.5-7.0	8.5-8.8	11.3—11.1	5.0-5.2	6.5-6.9	7.5-7.8
Power Factor	%	98.1	93.6-97.1	96.5—92.3	83.8-87.9	85.6-88.1	82.9-87.1
EER	kW/kW	3.40-3.44	3.38-3.43	3.29-3.38	3.42-3.42	3.38-3.38	3.40-3.40
Cooling (T3 condition)
Capacity	BTU	15000	18700	24400	31400	40500	45,300
Input Power	kW	1.80	2.24	2.91	3.79	5.00	5.47
Current	A	8.0	10.1	13.5	6.2	8.0	9.0
Power Factor	%	97.8	96.4	96.5—92.3	88.2	90.2	87.7
EER	BTU/h*W	8.33	8.35	8.38	8.28	8.10	8.28
Air Flow rate	CFM \| m3/h	620 \| 1050	705 \| 1200	942 \| 1600	1177 \| 2000	1,471 \| 2500	1,972 \| 3350
Net Dimention (indoor), Weight	HxWxD (mm) \| kg	270 x 1,135 x 700 \| 38	270 x 1,135 x 700 \| 38	300 × 1000 × 700 \| 35	300 x 1,400 x 700 \| 44	300 x 1,400 x 700 \| 44	360 x 1,400 x 850 \| 67
Net Dimention (outdoor), Weight	HxWxD (mm) \| kg	650 x 830 x 320 \| 50	830 x 900 x 330 \| 63	914x970x370 \| 77	1290x900x330 \| 100	1290x900x330 \| 102	1,290 x 900 x 330 \| 107
Refrigerant		R410A	R410A	R410A	R410A	R410A	R410A
