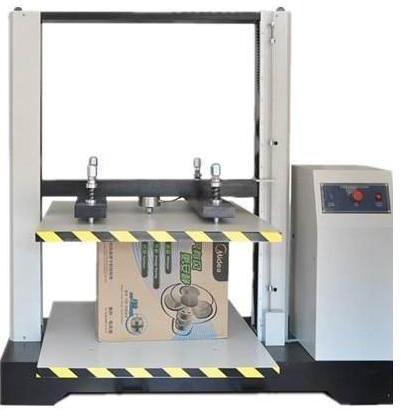

PC Style Resistant Compression Testers for high accuracy

We are offering pc style resistant compression testers to packaging containers (pkg-8210).

application

this instrument fits to test all kinds of packaging bodies, resistance of pressure of paper boxes, stacking strength test. The result could be used as the important basis for factories to pile up the finished packaging or the reference for designing packaging boxes. It meets the standard of tappi-t804, jis-z0212, iso2872, nf h13-001 and cns 2236/3511

features

1. The machine structure adopts aluminum frames seal board by advanced processing, with high accuracy, low resistance, and seamless double-ball screw and guide columns to improve the load efficiency and structure rigidity.

2. The control system adopts the japanese imported panasonic ac servo motor to ensure the transmission efficiency, stable running, low noise and the accuracy of speed could be controlled less than + 0.2%.

3. It adopts the business using computer control system, with unique test software in our company, then could finish all data setting, control of working state, materials getting and processing analysis and output of the result and the prints.

4. The advantages are the stable and reliable function, high accuracy testing, and full functioned of test software and easy to operate.

technical data

capacity 1000, 2000, 5000kg test resolution 1/200,000

force unit kg, lb, n, g spec of software windows system

test space 100*100*100cm (or according to clients’ need) machine structure servo computer with seamless double-ball screw

test speed 0.5-500mm/min with keyboard input dimensions (l*w*h) 170*100*185cm

weight 550kg power 1φ, 220v/50hz

security devices attach safety distance setting to the travel around, emergency stop button and sense of the specimen damage.
