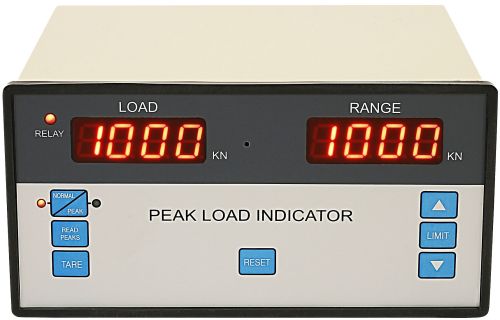

PEAK LOAD RECORDING INDICATOR
MODEL CT901

Features

 Separate displays for load indication and maximum range

 Range for load indication corresponding to 4-20mA input digitally settable from front panel

 Peak/Normal mode selectable

 Up to 9 peaks can be recorded and recalled

 Buzzer annunciation at Peak

 Relay output for load limit detection with limit digitally settable

 Digital tare provided to remove initial error

 Non-volatile memory for saving configuration

 Configuration lock at rear to prevent tampering with Range

 Aesthetically designed front panel with membrane switches

Specifications

 Display : 4 Digit 0.56” 7 segment Red LED display for Load (KN)
                  4 Digit 0.56” 7 segment Red LED display for Set Point (KN)

 Range
      o Range : 1KN to 9999
      o Load : 1KN to Range
      o Set Load (Limit) : 1KN to 9999

 Accuracy : ±0.1% of Full Scale ± 1 digit

 Input : From 2 wire loop transmitter giving 4-20mA output 4-20mA input => 0 - Range

 Relay Logic : When Actual Load ≥ Set Load Limit relay switches On.

 Normal/Peak Mode : Selectable from front panel with LED indication of mode

 Peak Read : Last 9 peaks can be recalled with facility to reset memory

 Peak Detection : Peak hold is resettable from front Reset Switch or by a parallel rear external contact

 Tare Facility (Zero) : Digital Tare using front panel Tare switch up to a maximum of 50KN (for removing initial offset error)

 Memory : Non-volatile EEPROM to save settings

 Configuration Lock : On rear terminals to prevent unauthorized/accidental alteration of Range using front switches

 Supply : 220V AC ± 15% @ 50/60Hz

 Dimensions : Front Fascia: 96mm x 192mm Cut Out : 92mm x 188mm
