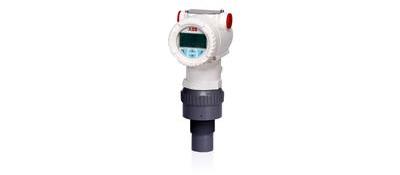

Plastic Ultrasonic Level Transmitter, For Water

It represents the future of level measurement. While using intelligent compact transmitters has always been attractive, certain limitations prevented their use in many applications. It removes those old obstacles. Whether you have the risk of flooding or corrosive materials in the process, ULT survive these conditions easily. With metal at the top and PVDF at the bottom, ult is the first compact ultrasonic to be resistant to corrosion on the entire instrument. Ingress protection approvals up to IP68 (optional) ensure the entire device can survive flooding. ULT combines the most advanced functions found on any ultrasonic in any class, in a compact form. Installation becomes easy thanks to the graphic echo display and advanced diagnostics. The false echo filtering algorithm combined with the best in class beam angle ensures easy installation in narrow areas with many obstructions. With through the glass technology, you never have to open the cover to configure the instrument. It is hard to believe that all this functionality is available on a device powered by only two wire loop power.

Data :

• Maintenance free, non-contact continuous level sensor
• 2-wire instrument with HART digital communication
• Up to 10 m measurement range
• Wide temperature range of -40 to 85 C
• Accuracy of ±2 mm or 0.2 % of full span (the larger one)
• Beam angle as low as 5Ë  with false echo filtering for narrow spaces
• Easy installation with graphic echo display, advanced diagnostic and easy setup menu
• Unique GAP technology ensures the best performance under any condition
• IP66/67 and NEMA 4X (can submerge to 1 m depth for 30 minutes)
• ATEX, IEC & FM Intrinsic safe and non sparking approved
